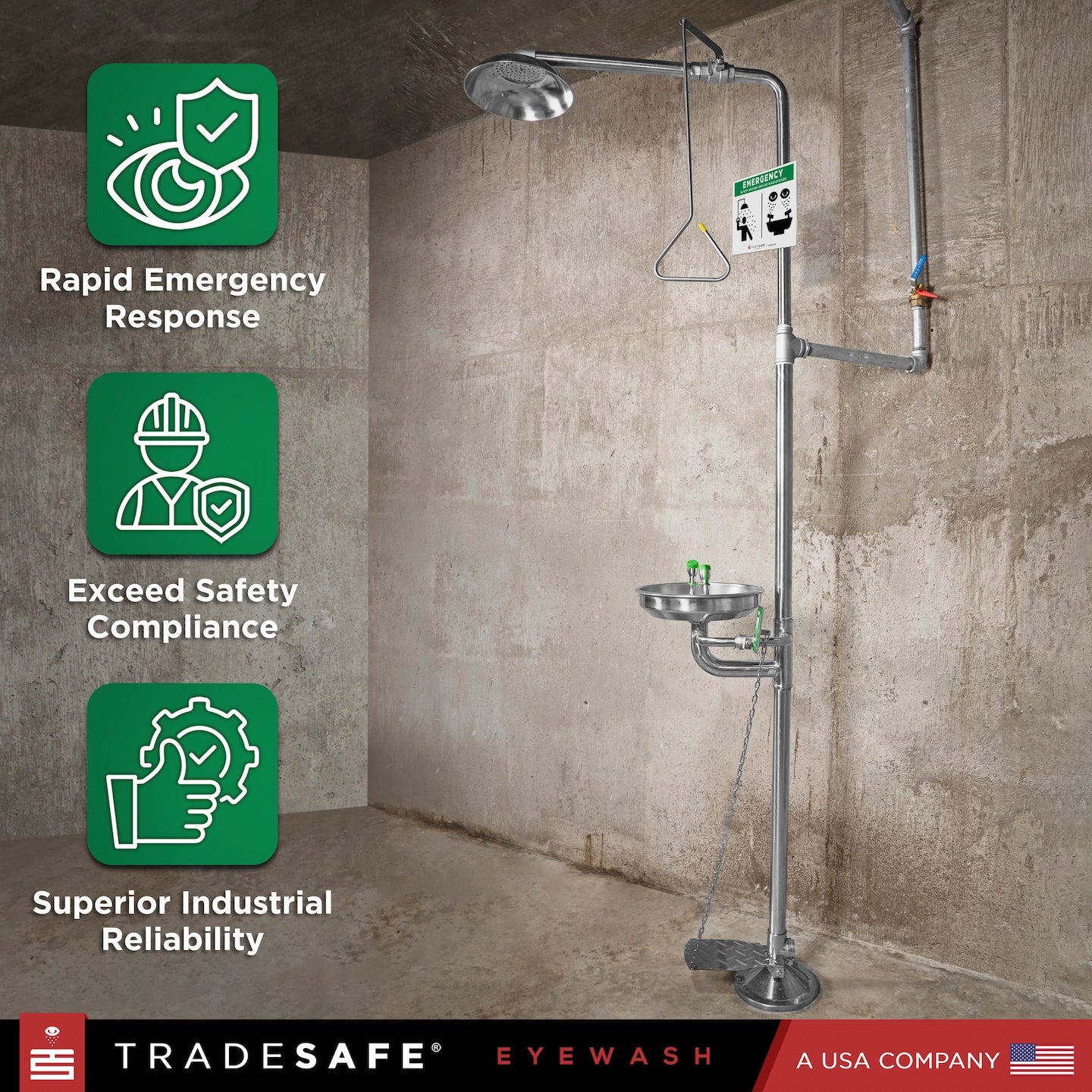

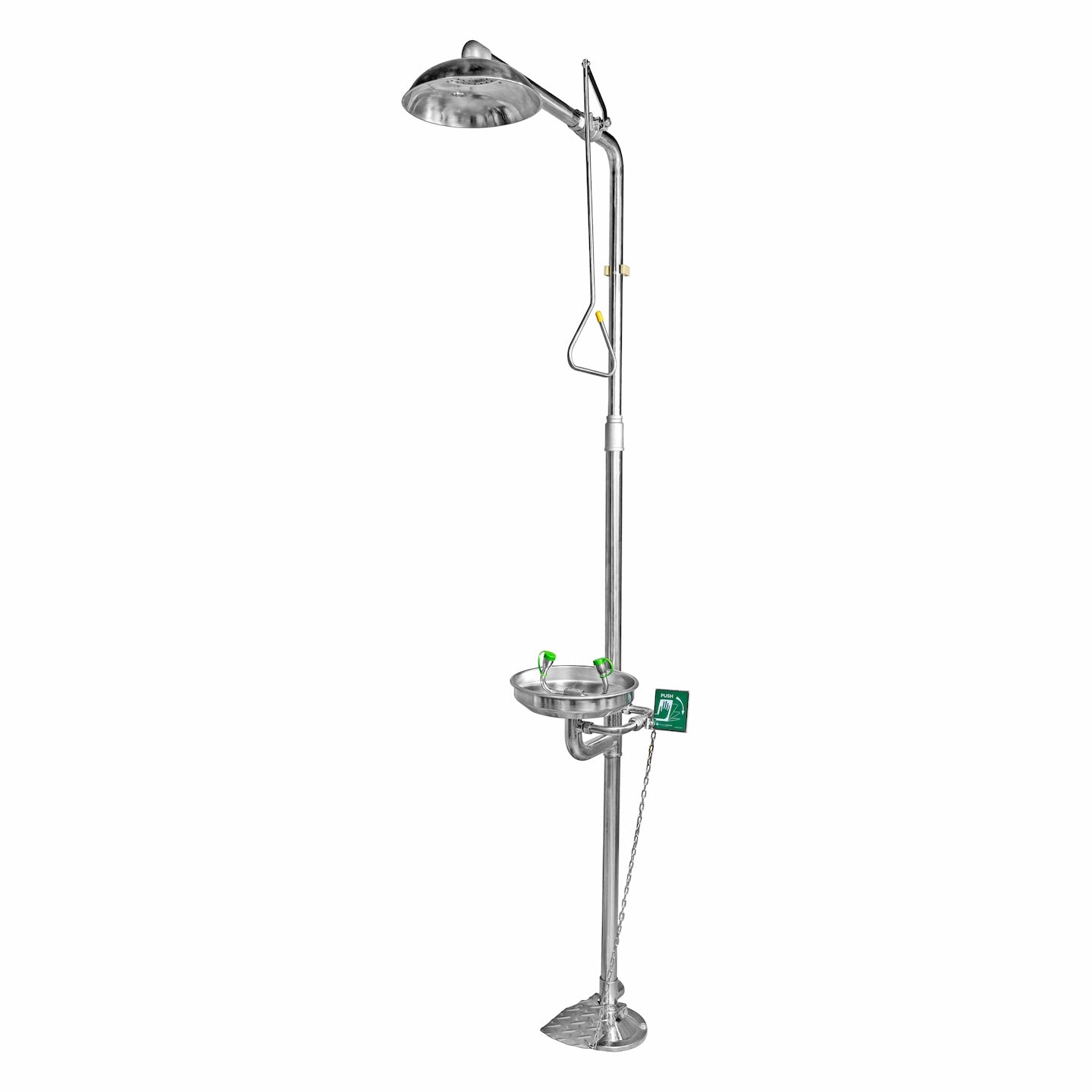

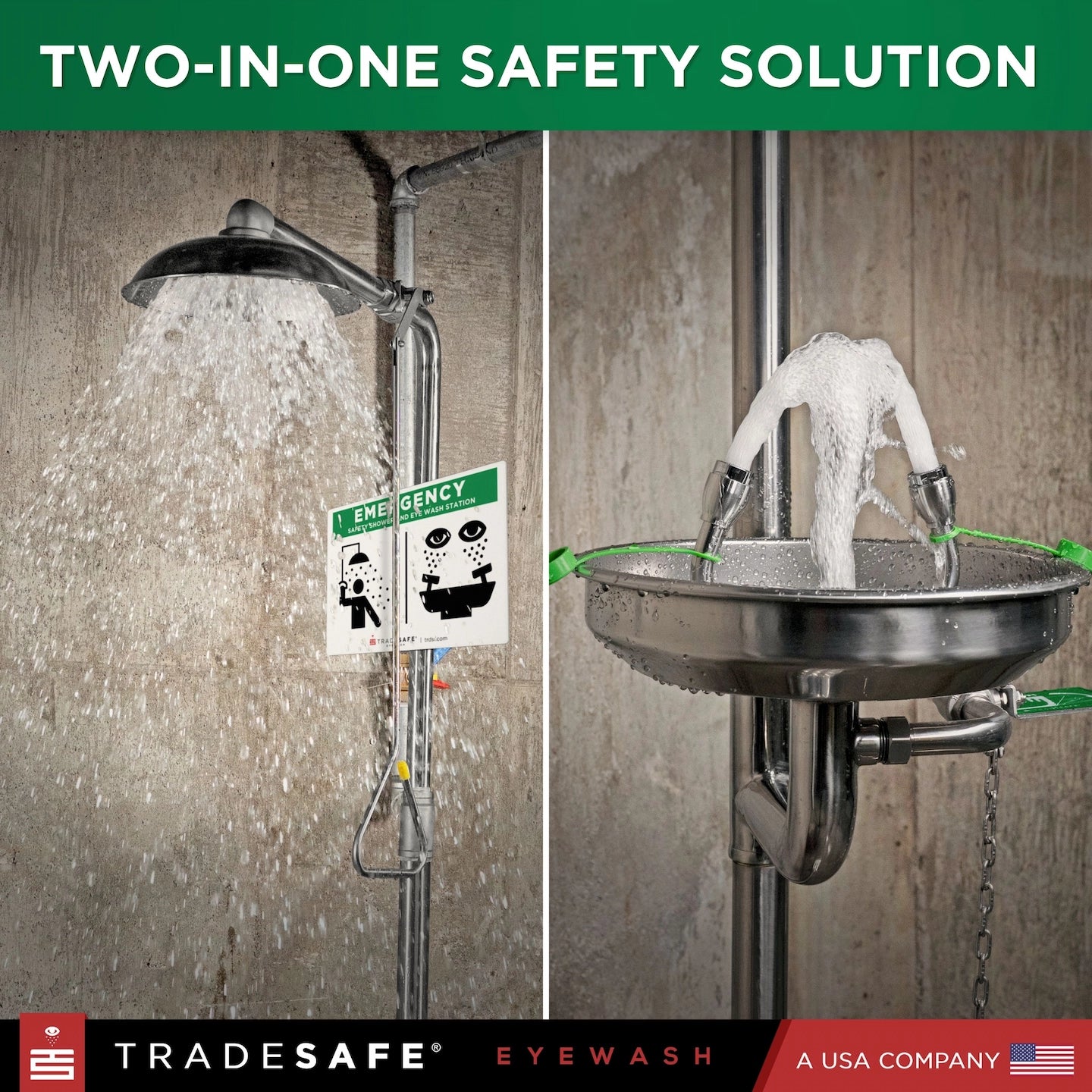

Combination Emergency Shower and Eyewash Station

More Details About Combination Eye Wash Station and Shower

TRADESAFE Emergency Shower and Eyewash Station is precision-engineered to provide immediate and unrivaled first aid effectiveness during emergencies, seamlessly integrating with existing plumbing. Built from high-grade stainless steel with a mirror-polished finish, this eye wash and shower station is tougher and more reliable than any competitor, offering superior durability, resistance to corrosion, and effortless sanitization. Rigorously tested and developed to exceed the stringent OSHA and ANSI Z358.1-2014 standards, ensuring your workplace is fully compliant and ready for any emergency.

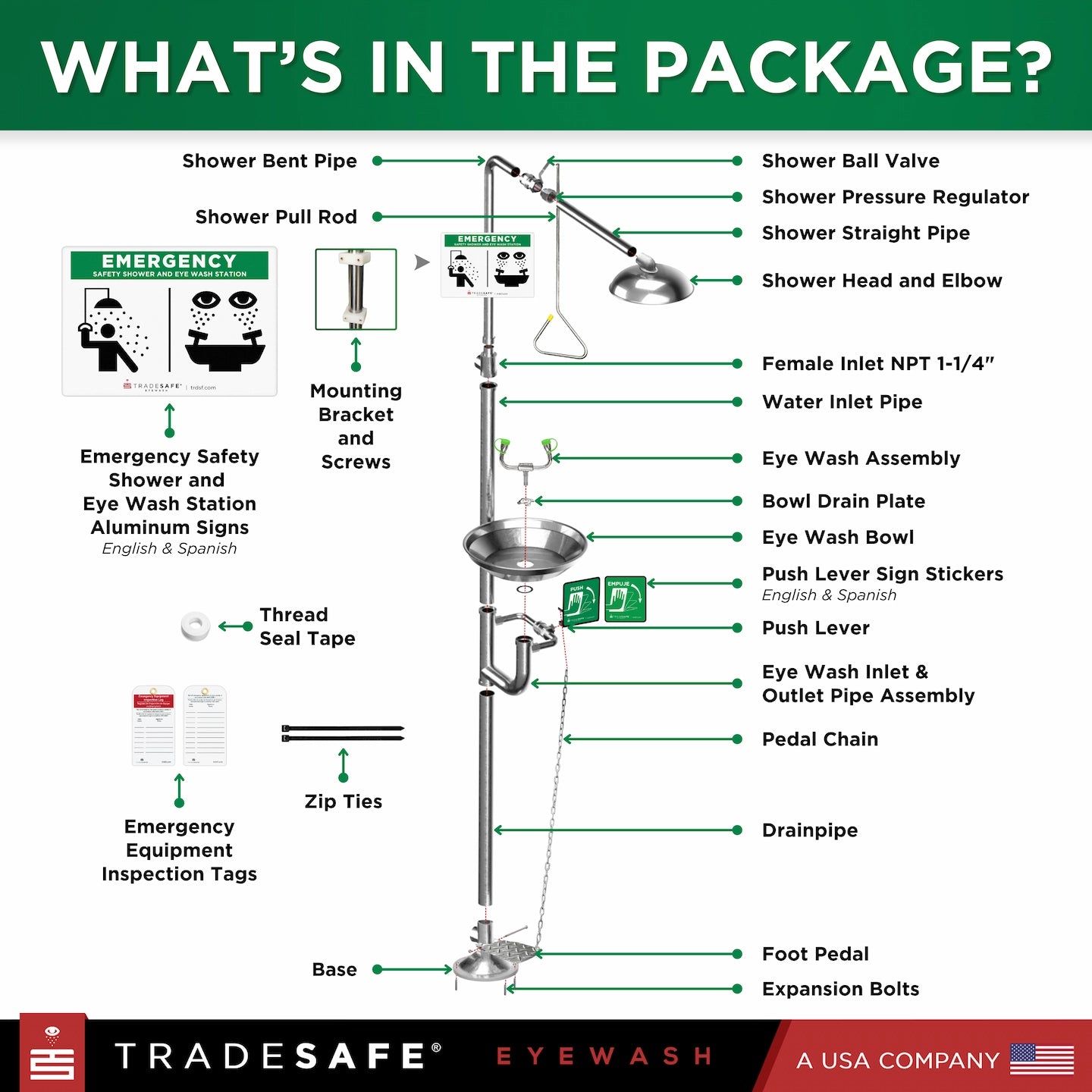

• Part Number: TSEWCMB; similar industry part number: FFG-5, G1950, S19314EW, 8320-8325, ‎SE-693
• (1) Emergency shower and eyewash station with a wide base floor flange meticulously crafted from rugged 11-gauge 304 stainless steel with a mirror-polished finish
• Cutting-edge design nozzles with pressure regulators delivering a soft and steady flow pattern for safe, comfortable, and thorough rinsing at not less than 3 gallons per minute (11.4 L/min) for more than 15 minutes; flip-top caps protect nozzles against airborne contaminants
• Precision-engineered adjustable flow volume controls regulate high or low water pressure to a safe operating range, ensuring optimal performance across varying water supply pressures
• Modern 3” deep, 11-3/6" diameter, and 20-gauge thick bowl design expertly contains water flow, drastically minimizing splashing and keeping the surrounding area clean
• Broad 10-1/4" diameter high-performance emergency shower head delivering optimized spray pattern for full-body coverage; provides unrelenting 20 GPM flow for over 15 minutes for thorough and rapid washing; formed from reinforced 25-gauge stainless steel for enhanced rigidity
• Equipped with a green push handle and stainless steel foot pedal for lightning-fast activation of the eyewash station and a triangle pull rod to instantly activate the emergency shower, both with a stay-open ball valve, and can operate simultaneously for continuous, hands-free rinsing
• Includes aluminum eye wash station signs in English and Spanish with bold, fade-resistant print and light-reflective surface for high visibility; and sturdy PVC bilingual inspection tags and ties
• Operating Pressure Range
  • Recommended Range: 29 to 58 PSI
  • Minimum Required: 29 PSI
  • Maximum Safe: 150 PSI
• Water Flow Rate:
  • Shower: Not less than 20 GPM (75.7 L/min) for 15 minutes
  • Eye Wash: Not less than 3 GPM (11.4 L/min) for 15 minutes
• Connection types:
  • Inlet: NPT 1-1/4"
  • Outlet: NPT 1-1/4"
• Rigorously developed and tested to comply with OSHA and ANSI Z358.1-2014 standards
• TRADESAFE is an American-based and owned industrial safety brand; superior durability and design are in our DNA

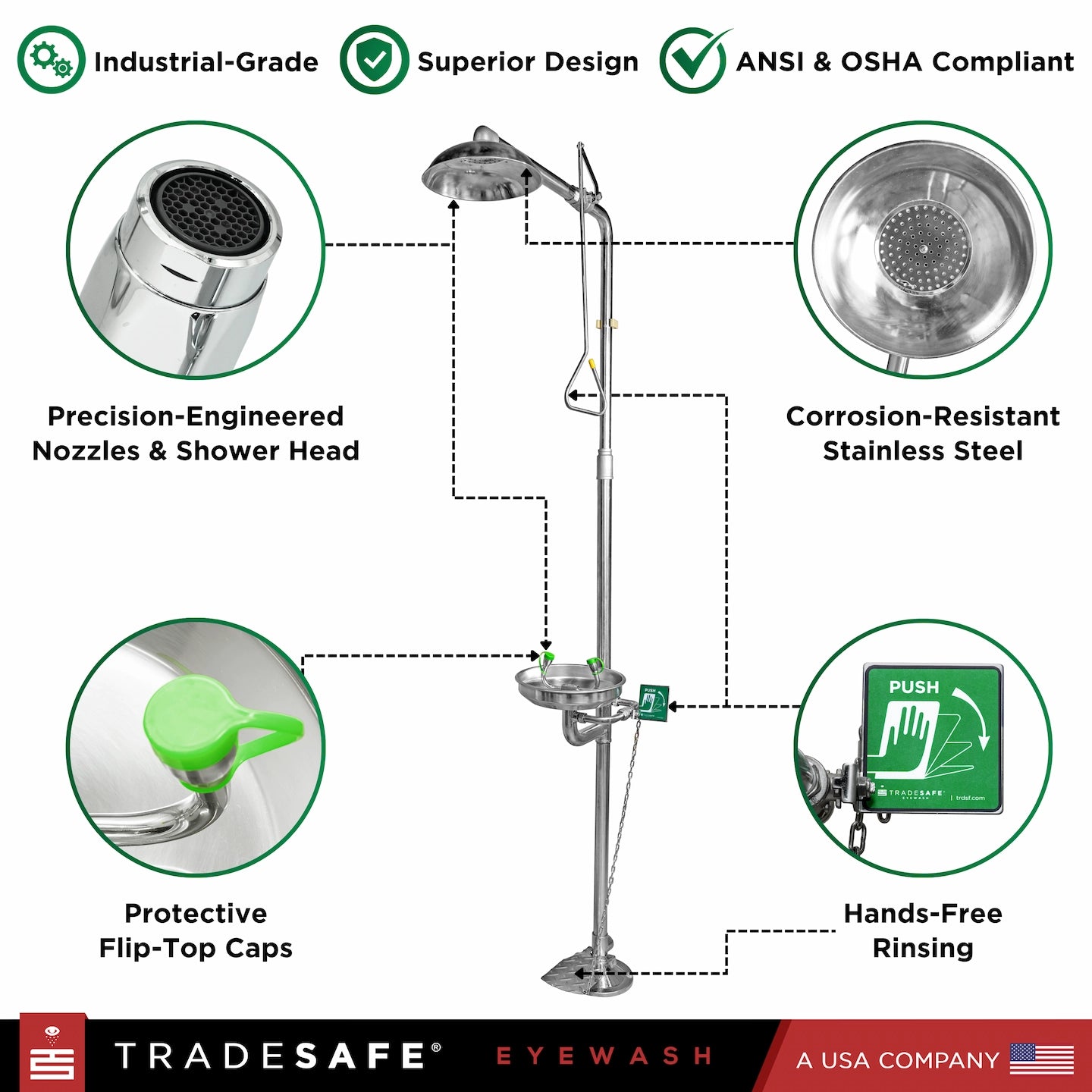

Premium Grade Emergency Shower and Eyewash Station

TRADESAFE Safety Shower and Eyewash Station is built from ultra-durable, thick 11-gauge stainless steel that offers unparalleled resistance to cracking and corrosion, outlasting subpar alternatives that degrade quickly under industrial stress. This safety shower eyewash station features a smooth, mirror-polished surface that actively resists the accumulation of dirt, grime, and bacteria.

With its innovative 3” deep, 11-3/6" diameter, and 20-gauge thick bowl design, water flow is perfectly contained, drastically minimizing splashing and keeping your work area dry and safe during emergencies. The combination emergency shower and eyewash station also features a wide base floor flange, providing exceptional stability once properly installed, a safety solution built to withstand the toughest environments.

Emergency Shower and Eyewash Station Designed for Optimal Safety

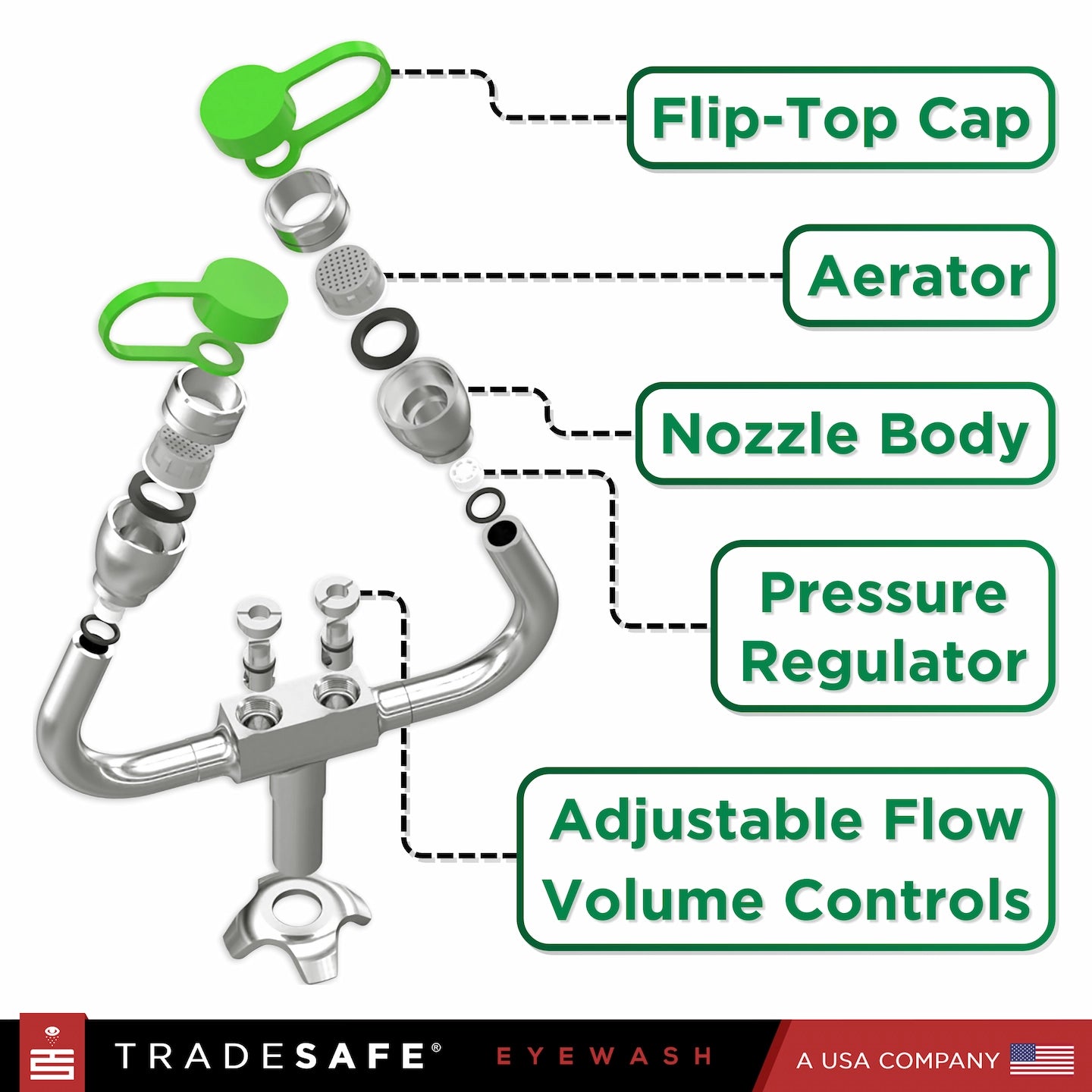

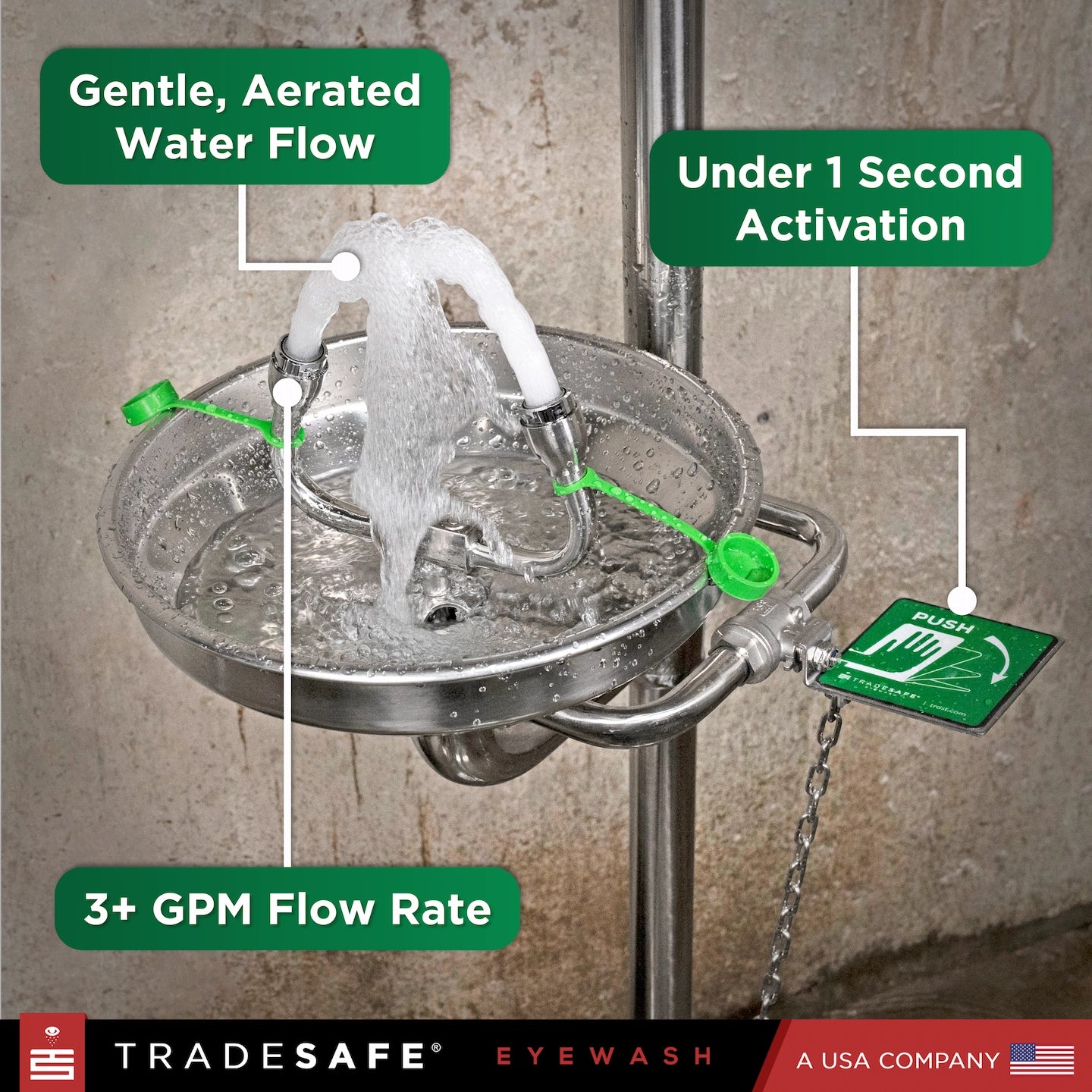

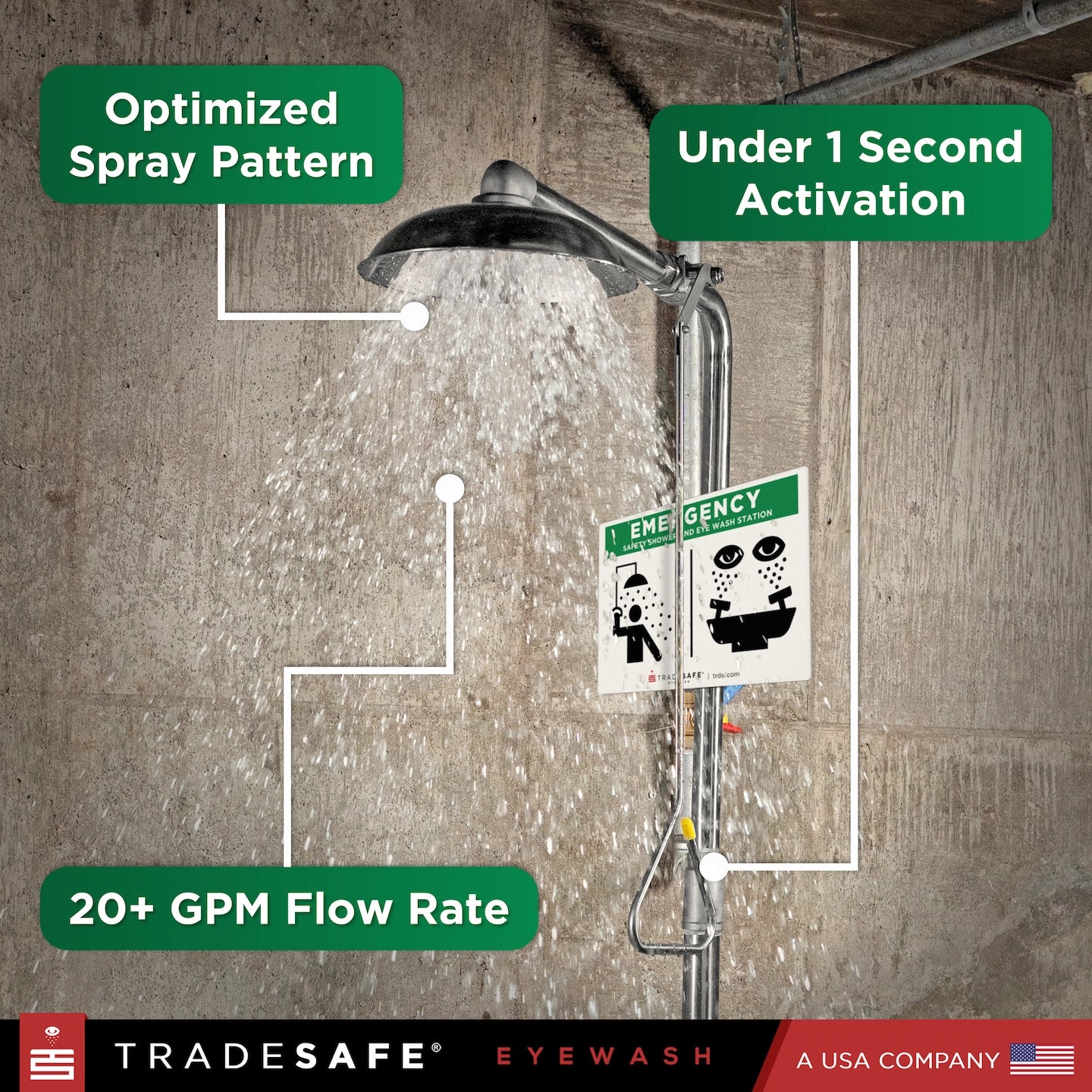

This eyewash station features a combination of advanced technologies that ensure unwavering reliability and effectiveness in any emergency. Equipped with multi-layer aerated nozzles with built-in pressure regulator, this station delivers a steady, uninterrupted flow of 3 GPM for safe, comfortable, and thorough rinsing for over 15 minutes, even during pressure fluctuations. Meanwhile, the overhead safety shower with a broad 10-1/4" diameter boasts a strategically engineered spray pattern, delivering a strong 20 GPM flow for over 15 minutes, ensuring full-body decontamination, outperforming ordinary flat-plate designs in both reach and intensity.

The adjustable flow volume control for each nozzle lets users fine-tune the water flow for precise control, ensuring optimal performance across varying water supply pressures. Its flip-top caps provide superior protection, keeping nozzles free from dust and contaminants to maintain flawless hygiene and prevent clogging or uneven flow.

Emergency-Ready Eye Wash and Shower Station

Activation is instant with either the push handle, foot pedal, or pull rod, enabling water flow without delay. Meanwhile, its stay-open ball valve enables hands-free rinsing for uninterrupted emergency use. Every second counts, and our wall mounted eyewash station ensures nothing stands between you and safety.

This eyewash station is also equipped with high-visibility aluminum signs in both English and Spanish that demand attention for instant identification. The ultra-durable bilingual inspection tags and ties are designed to withstand extreme wear and tear, unlike flimsy paper tags that fade and peel, exceeding industry standards for efficient safety communication and proper maintenance documentation

OSHA and ANSI Guaranteed Safety Shower Eyewash Station

TRADESAFE Eye Wash Stations are engineered to surpass the stringent requirements of ANSI Z358.1-2014 and OSHA 29 CFR 1910.151(c) standards. Compliance with these standards is crucial for providing effective emergency eye care and maintaining a safe working environment. Specifically, this wall mounted eyewash station is designed with the following key provisions in mind:

• Eyewash nozzles with flip-top caps to guard against airborne particles. (Section 5.1.3)
• Adjustable flow volume controls ensure controlled, low-velocity water flow. (Section 5.1.1)
• Delivers at least 3 gallons of water per minute (11.4 L/min) for more than 15 minutes. (Section 5.1.6)
• Highly visible and easily accessible green push handle. (Section 5.2)
• Hands-free, stay-open valve activates in one second or less. (Section 5.2)
• Simultaneous flushing of both eyes within 8″ (20.3 cm) above the nozzles. (Section 5.1.8)
• Complete wall mounting hardware ensures water flow pattern is between 33″ (83.8 cm) and 53″ (134.6 cm) from the floor and at least 6″ (15.2 cm) from any obstructions. (Section 5.4.4)
• Equipped with highly visible signs for quick identification and efficient safety communication. (Section 5.4.3)
