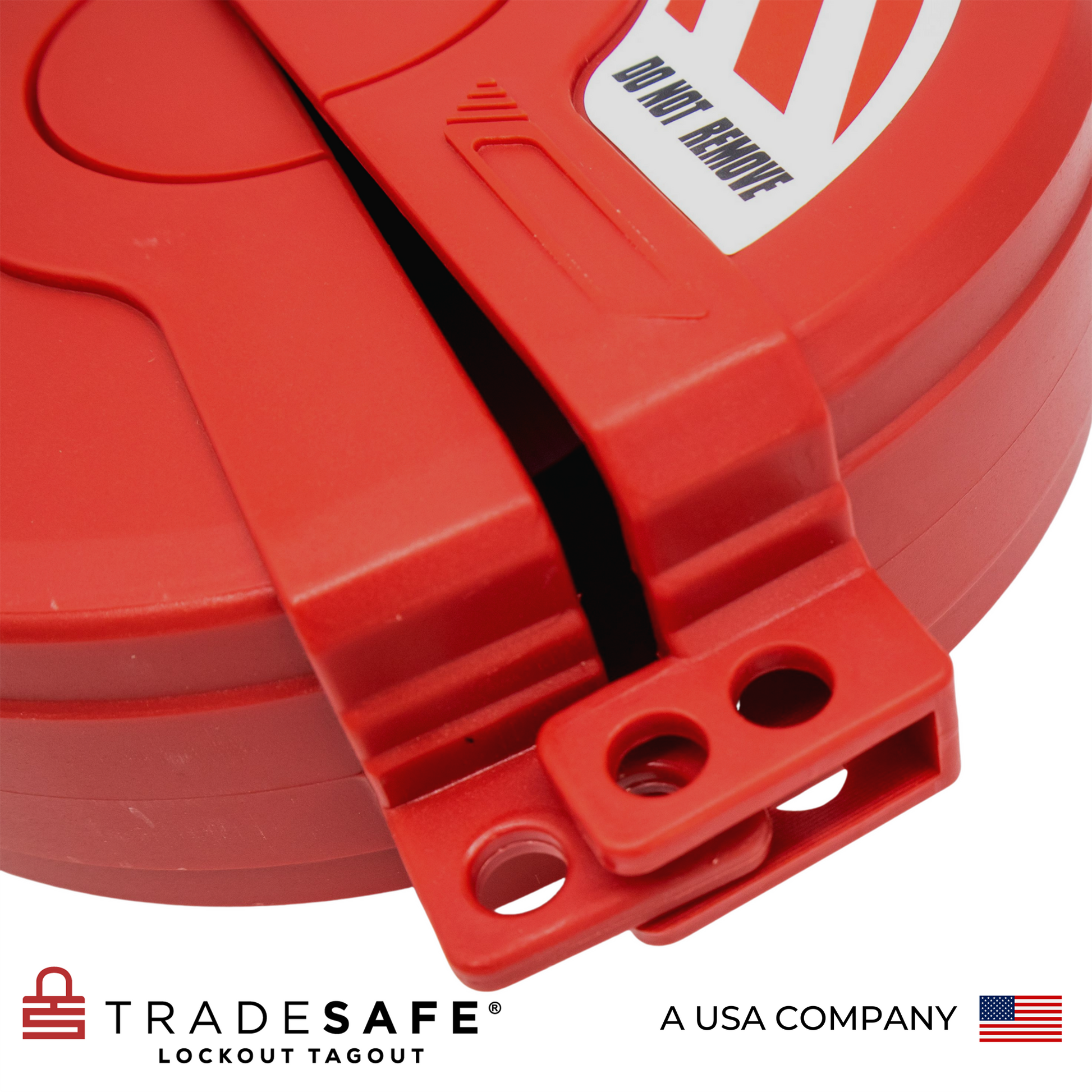

close-up view of the hinge part of a closed red gate valve lockout device
close-up view of the back part of the hinge in a closed red gate valve lockout
illustration of eight red gate valve lockouts in different sizes indicating the size of the diameter valve handle that will fit and the number of padlock holes in each
eye-level view of a red gate valve lockout
eye-level back view of a red gate valve lockout device with dimensions
eye level view of the inside part of an opened red gate valve lockout with dimensions
close-up view of a slightly opened red gate valve lockout where one padlock hole in each part are overlapping with each other
eye-level slanted view of a half opened red gate valve lockout
tradesafe lockout tagout gate valve brand image
front view of a closed gate valve lockout with 2 padlock holes
slightly opened gate valve lockout device
close-up view of a fully opened red gate valve lockout
close-up view of the hinge part of a closed red gate valve lockout device
close-up view of the back part of the hinge in a closed red gate valve lockout
illustration of eight red gate valve lockouts in different sizes indicating the size of the diameter valve handle that will fit and the number of padlock holes in each

Gate Valve Lockout – 2-1/2” to 5” Valve Handle Diameter

$19.95
$39.00 $19.95
Sale Sold out
Shipping calculated at checkout.
You Save 48% ($19.05)
  • Industrial-grade ABS material valve lock
  • Removable center knockout for OS&Y or rising stem valves
  • Overlapping hinge & lock for a solid lockout
  • Secure with up to 2 LOTO locks

More Details About Gate Valve Lock

TRADESAFE Gate Valve Lockout Device effectively prevents unauthorized or accidental operation of the valve and can easily fit over 2-1/2” to 5” diameter valve handles with up to 1-3/4” diameter stems. Precision-engineered with extremely durable ABS plastic, these valve lockouts can withstand rough industrial conditions and are dependable during lockout tagout operations.

  • Part Number: TS6GTVR; similar industry part numbers: SD04, 481
  • (1) Red gate valve lockout; secures 2-1/2” to 5” diameter valve handles with up to 1-3/4” diameter stems
  • Endures temperatures from -51 to 300 degrees Fahrenheit
  • Works with gas valves, propane valves, and forklift gas valves and other industrial gate valves
  • Overlapping hinge and lock to ensure a reliable lockout; detachable hinges for convenient storage
  • Enables group LOTO of up to 2 safety padlocks with 5/16” shackle diameter
  • Valve Stem Hole Diameter: 1-3/4”
  • Inner Diameter: 5-5/8”
  • Inner Height: 1-5/8”
  • Total Body Length: 7-3/8”
  • ABS Plastic Thickness: 1/8”
  • Developed and tested to comply with OSHA 29 CFR 1910.147 standard
  • TRADESAFE is an established USA based and owned industry expert and reliable safety partner for LOTO compliance supplies

Ultra Durable Valve Lockouts

TRADESAFE Gate Valve Lockout is developed with only the highest standards of quality materials and procedures. Each valve lock is built with engineering ABS plastic that is extremely resistant to chemicals, abrasion, and impact; enabling it to withstand the roughest conditions of industrial workplaces. Because ensuring workforce safety is TRADESAFE’s top priority, we make sure that our products are difficult to damage or tamper with.

Premium Gate Valve Lock Devices

This valve lockout device features overlapping hinges and locking points that ensure a strong lockout. It can be secured with up to 2 LOTO padlocks, enabling both individual and group lockout tagout procedures. These valve lockouts are also simple and convenient to use. It encircles the gate valve operating handle to protect against unintentional valve opening.

By securely locking the valve in place, gate valve lockouts help to prevent leaks, spills, and other types of release that could pose a risk to workers, the environment, and the public.

Exceptionally Versatile Rising Stem Valve Lock

TRADESAFE gate valve lockouts are built to securely lock out different types of valves, including gas valves, forklift gas valves, propane valves, and more. These gate valve lockout devices also feature a central knockout that can be removed with a pincer to fit perfectly over OS&Y or rising stem gate valves.

OSHA-Compliant Gate Valve Lock Device

Compliance with the OSHA Standard for The Control of Hazardous Energy (Lockout/Tagout) (29 CFR 1910.147) is vital to the safety of every employee on site. That’s why we make sure that all of our products help workplaces remain OSHA-compliant.

TRADESAFE products are made with the requirements for lockout tagout devices in mind. These are the requirements pursuant to OSHA Standard 1910.147:

  • Durable: Devices must be able to withstand exposure to the environment in which they will be used for as long as necessary.
  • Standardized: Devices used in a facility must be standardized according to color, shape, or size.
  • Substantial: Devices must be difficult to remove without the use of excessive force or techniques that are not typically used to remove the devices. They should also be able to prevent accidental removal.
  • Identifiable: Devices must be able to identify the employee who applied them.
  • Exclusive for Safety: Devices must not be used for any purpose other than controlling energy.
