Gate Valve Lockout – 6-1/2" to 10" Valve Handle Diameter, 3-1/2" Stem Diameter

TRADESAFE large valve lock helps maintenance teams, safety managers, utility crews, and authorized employees secure compatible gate valve handwheels during service, repair, inspection, and shutdown procedures. This model fits valve handles from 6-1/2" to 10" in diameter and accommodates stems up to 3-1/2" in diameter, making it suitable for larger isolation points used in industrial water, gas, propane, utility, and compatible fuel-system applications.

The high-visibility red clamshell body surrounds the operating handle and supports up to three personal LOTO padlocks for individual or group lockout tasks. Industrial-strength ABS construction provides impact, chemical, and temperature resistance, while the overlapping cover, detachable hinge, and removable center knockout support stable installation, compact storage, and compatibility with qualifying OS&Y or rising-stem gate valves. Padlocks are not included.

Valve Lock for 6-1/2" to 10" Gate Valve Handles

This valve lock provides enclosed coverage for large gate valve handwheels that exceed the capacity of smaller lockout models. Once installed around a compatible handle and secured with the required padlock or padlocks, the housing restricts access to the operating point and helps prevent unauthorized valve movement while maintenance is underway.

Part number: TS1GTVR. Similar industry part numbers: 65563, 483

Product details include:

• 1 red gate valve lockout
• Compatible valve handle diameter: 6-1/2" to 10"
• Maximum valve stem diameter: 3-1/2"

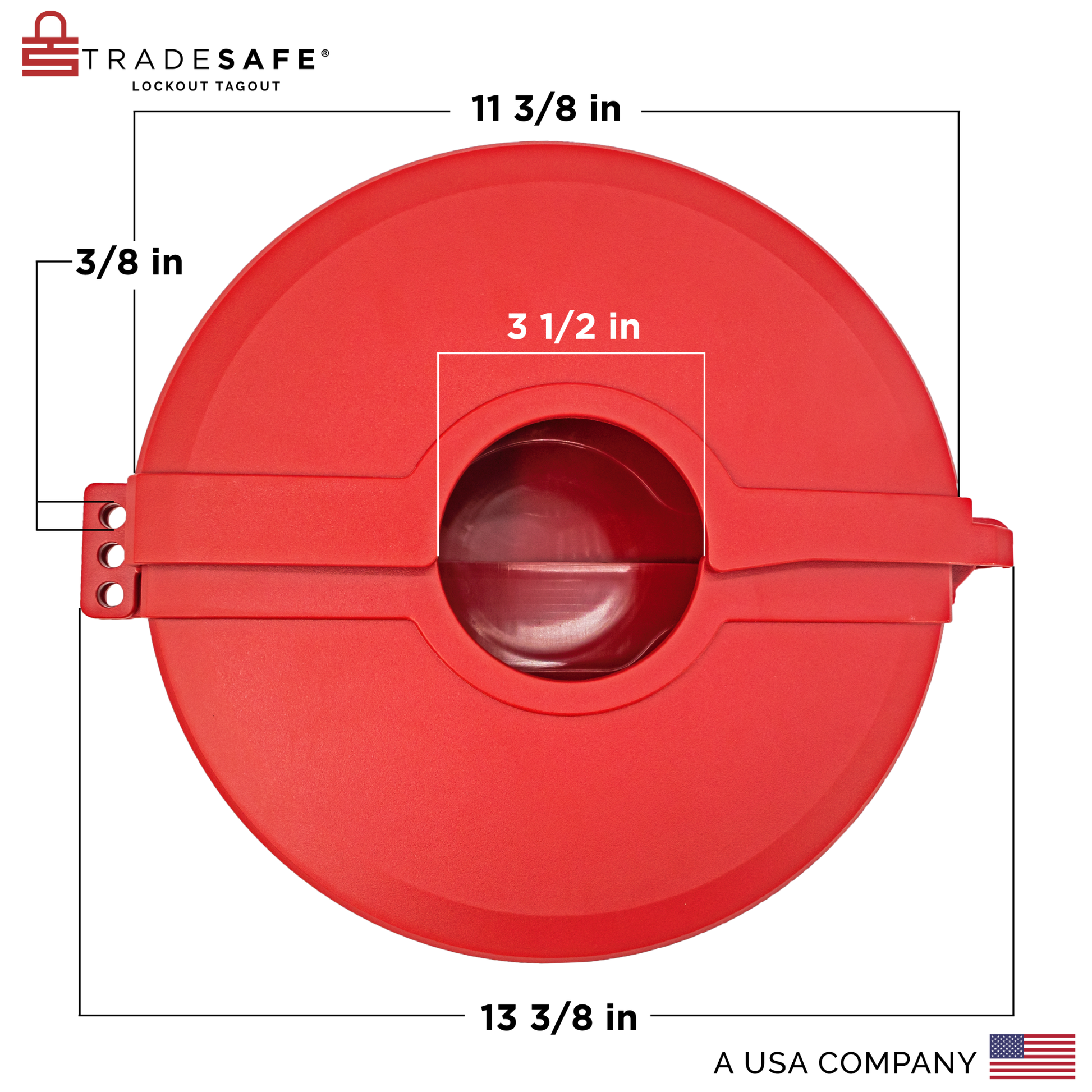

• Inner diameter: 11-1/8"
• Inner height: 2-7/16"

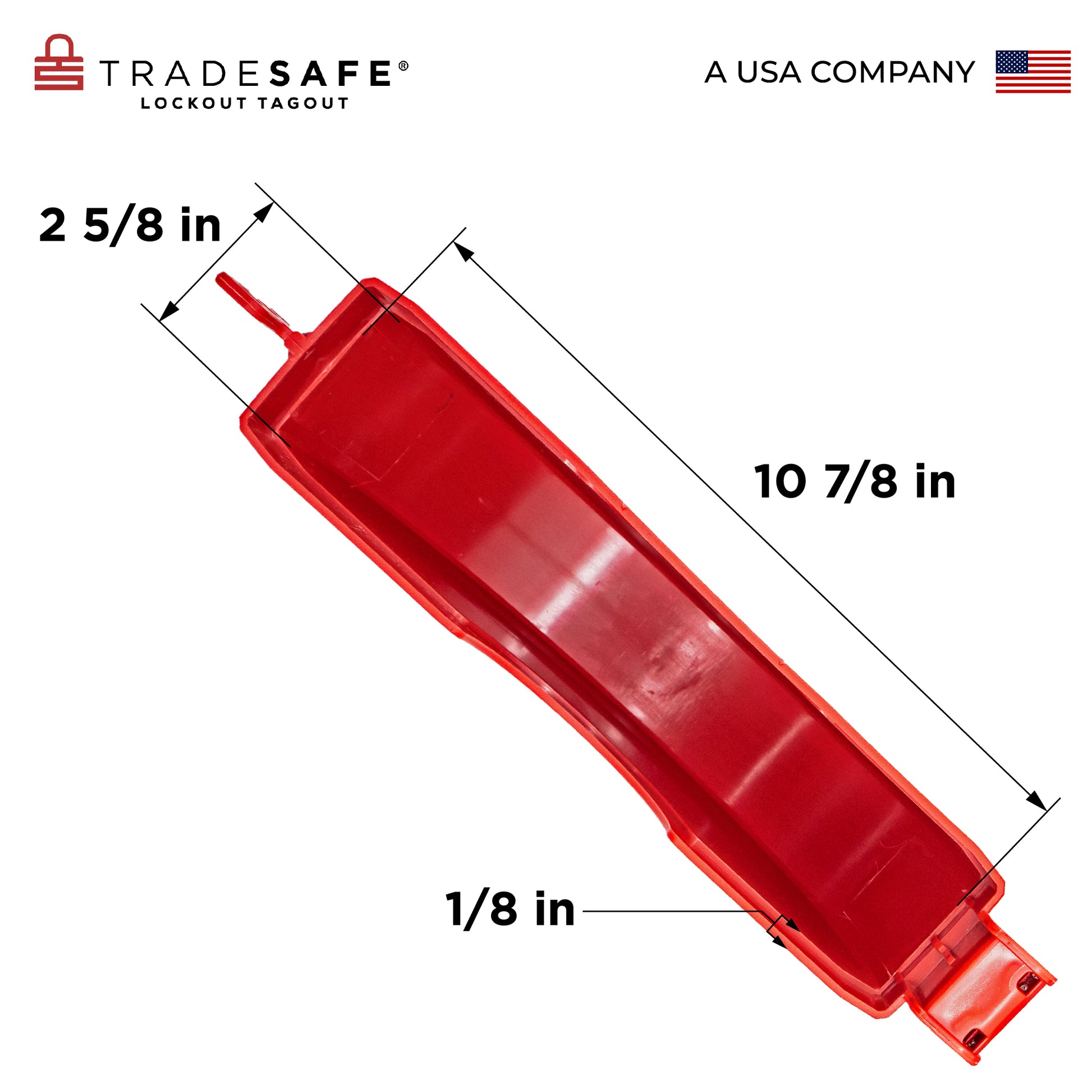

• Total body length: 13-3/8"
• ABS plastic thickness: 1/8"

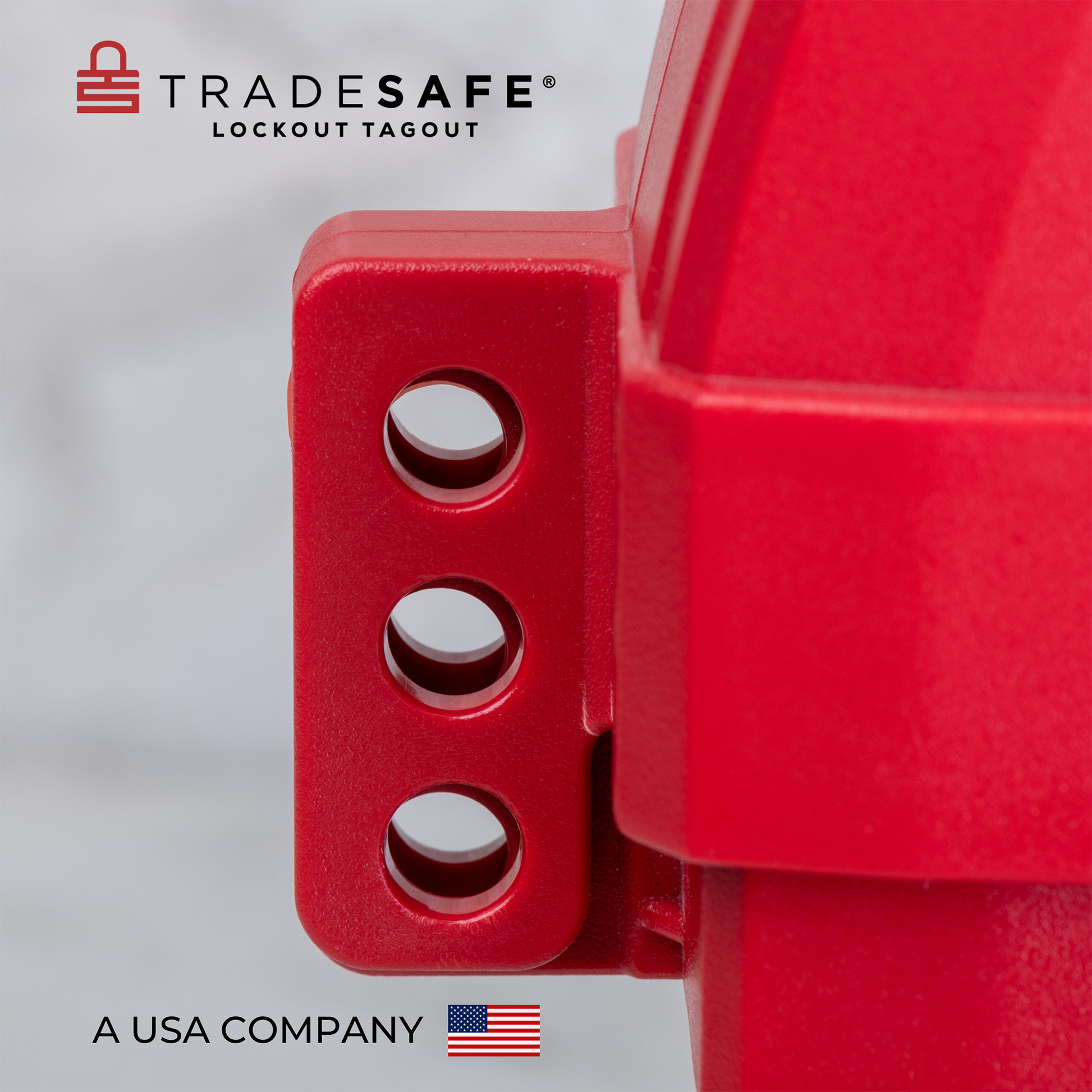

• Three integrated padlock positions
• Maximum compatible padlock shackle diameter: 11/32"
• Removable center knockout for qualifying OS&Y and rising-stem valves
• Designed specifically for compatible gate valve handles
• Not intended for ball valve or butterfly valve handles
• Lockout padlocks sold separately

Measure the handwheel and valve stem before ordering to confirm compatibility. This large model is intended for facilities that need dependable coverage for gate valves that cannot be secured with compact or medium-sized lockout devices.

Gate Valve Lockout with Industrial-Strength ABS Construction

This gate valve lockout is precision-molded from industrial-strength ABS selected for demanding indoor and outdoor work environments. Its nonconductive body resists impact and common chemical exposure while maintaining its shape across an operating temperature range of -51°F to 300°F.

Material and visibility features include:

• Impact-resistant ABS construction
• Chemical-resistant body
• Nonconductive material
• Operating temperature range: -51°F to 300°F
• High-visibility red finish
• Printed “DANGER – Locked Out – Do Not Remove” warning label
• Reinforced housing for recurring workplace use
• Detachable hinged design for more compact stacking and storage

The durable housing is well suited for utilities, manufacturing plants, processing facilities, maintenance operations, and outdoor service locations where valve lockout equipment may face frequent handling or changing environmental conditions. Its red finish and warning graphics also make the isolated valve easier for nearby personnel to identify.

Gate Valve Lock with an Overlapping Clamshell Design

The gate valve lock opens at the hinge, closes around the compatible handwheel, and is secured through the integrated lock holes. Its overlapping cover sections maintain fuller coverage around the operating handle, helping reduce shifting, loosening, and partial exposure after installation.

Installation and security features include:

• Hinged clamshell construction for straightforward placement
• Overlapping cover sections for stable handwheel coverage
• Removable center knockout for qualifying rising-stem configurations

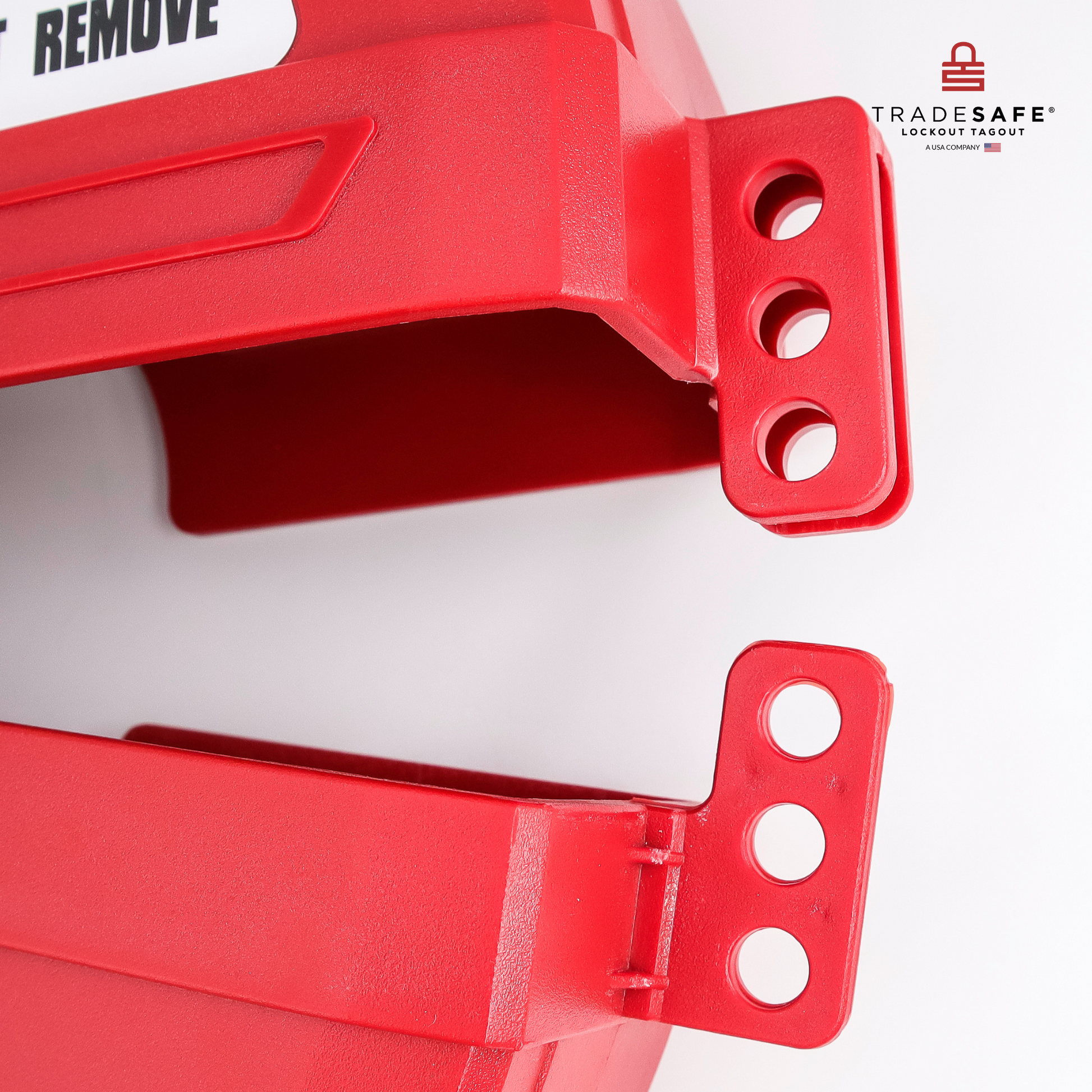

• Three integrated padlock positions
• Supports individual and multi-worker lockout applications
• Accepts padlock shackles up to 11/32" in diameter
• Detachable hinge for easier stacking between uses
• Lockout padlocks sold separately

The three-lock configuration allows multiple authorized employees to maintain personal control of the same isolation point when required by the facility’s procedures. Removing the center section also extends the device’s usefulness to compatible OS&Y and rising-stem gate valves when the stated handwheel and stem dimensions are met.

Lockout Gate Valve Handles in Large Industrial Applications

Use this device to lockout gate valve handles found on compatible industrial water lines, gas systems, propane equipment, utility infrastructure, processing installations, and selected fuel-system applications. Its large internal capacity and three padlock positions make it practical for both individual maintenance assignments and coordinated work involving several authorized employees.

Correct sizing and valve identification remain essential. Confirm that the handwheel measures between 6-1/2" and 10", that the stem does not exceed 3-1/2", and that the isolation point uses a compatible gate-valve design before installation; select another gate valve size or a dedicated ball or butterfly valve lockout when these conditions are not met.

Give your team durable coverage for large gate valve isolation points. Pair the device with the personal LOTO padlocks required by your facility’s hazardous energy control procedures. Choose the TRADESAFE large gate valve lock for secure handle coverage, clear warning communication, and dependable daily use.
