Sale

Complete Breaker Lockout Tagout Kit – 2 Keys Per Lock

  • LOTO starter kit for locking out circuit breakers safely and securely
  • Includes padlocks, hasps, breaker locks, safety tags, and cable ties
  • Comes with a pouch bag
  • Non-conductive materials

More Details

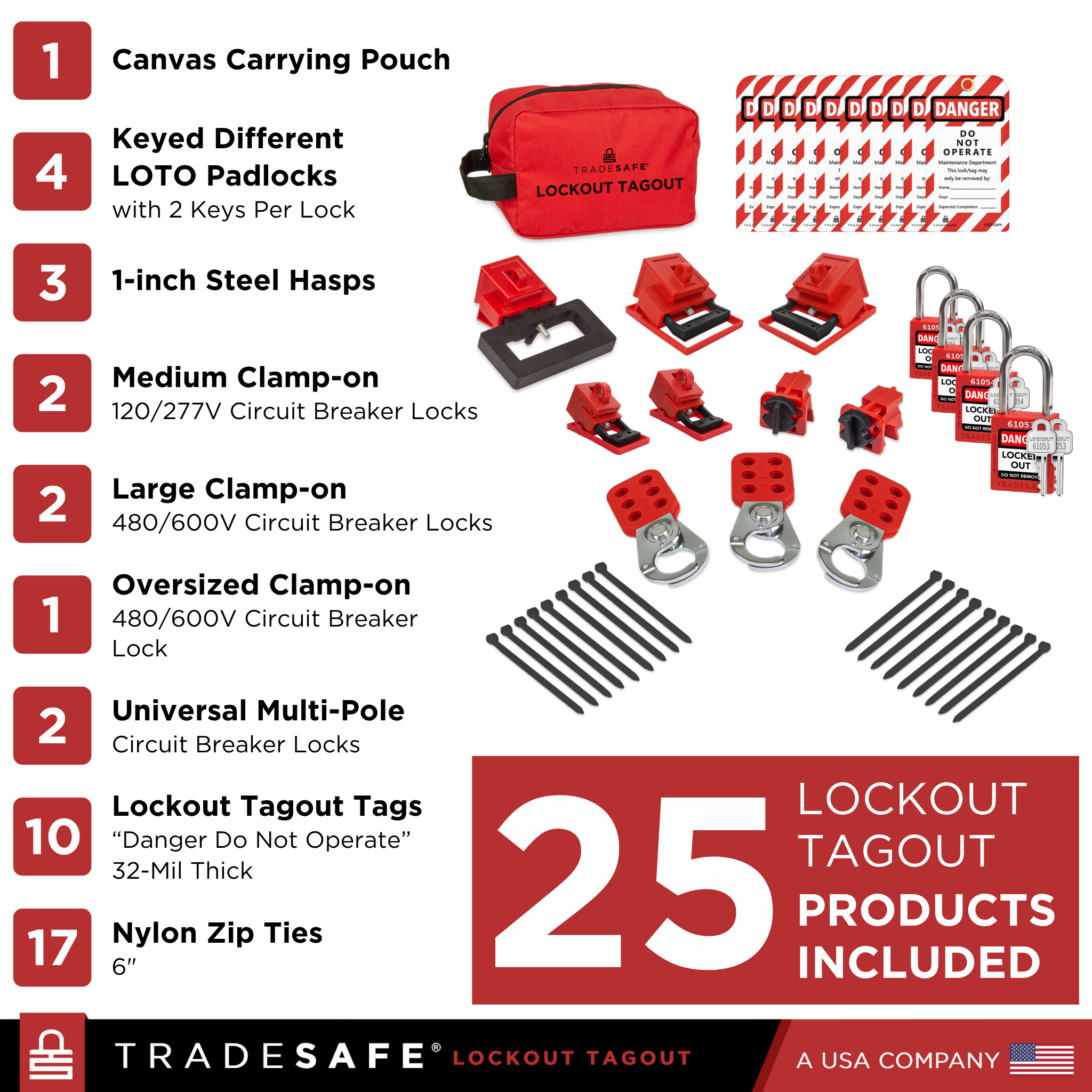

  • 1 pouch bag
  • 4 padlocks with 2 keys each
  • 3 hasps (1 inch)
  • 2 120/277V clamp-on circuit breaker lockouts
  • 480/600V clamp-on circuit breaker lockouts
  • 1 Over Sized 480/600V clamp-on circuit breaker lockout (XL)
  • 2 universal multi-pole circuit breaker lockouts
  • 10 Danger Do Not Operate lockout tags
  • 17 cable ties
  • An American-owned company
  • 100% OSHA compliant
  • LOTO starter kit
  • Non-conductive materials
  • Weather-resistant

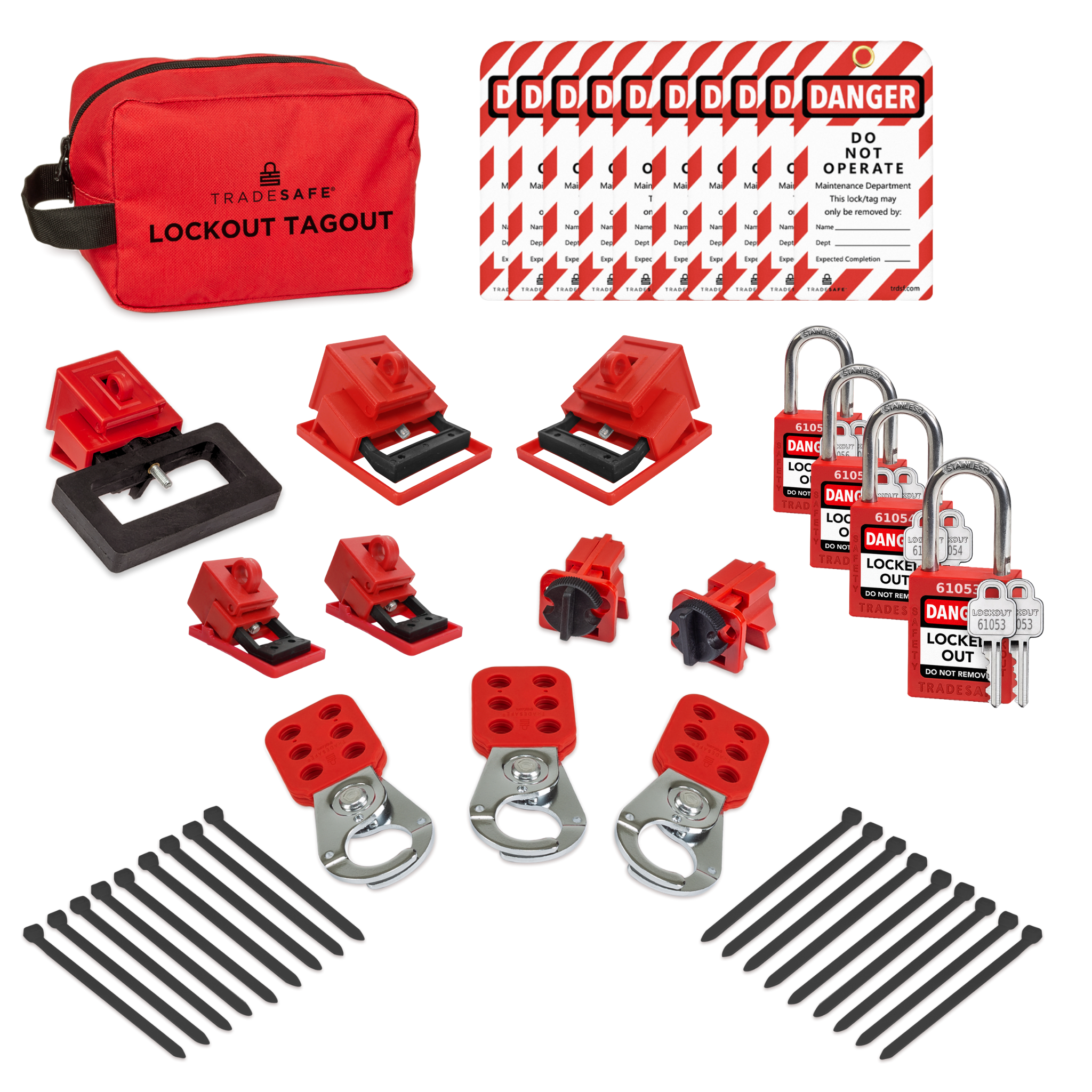

This kit is the perfect starter pack to begin locking out equipment safely and securely. Each order comes packaged ready to perform basic LOTO procedures right out of the box and contains:

Red Canvas Pouch Bag

  • Dimensions: 7-1/2" x 5-1/8" x 3-1/2"

This zippered bag is brightly colored, easily identifiable, and appropriately sized for the accompanying kit. It can easily hold all devices in the kit while leaving a little extra room to accommodate a few small items.

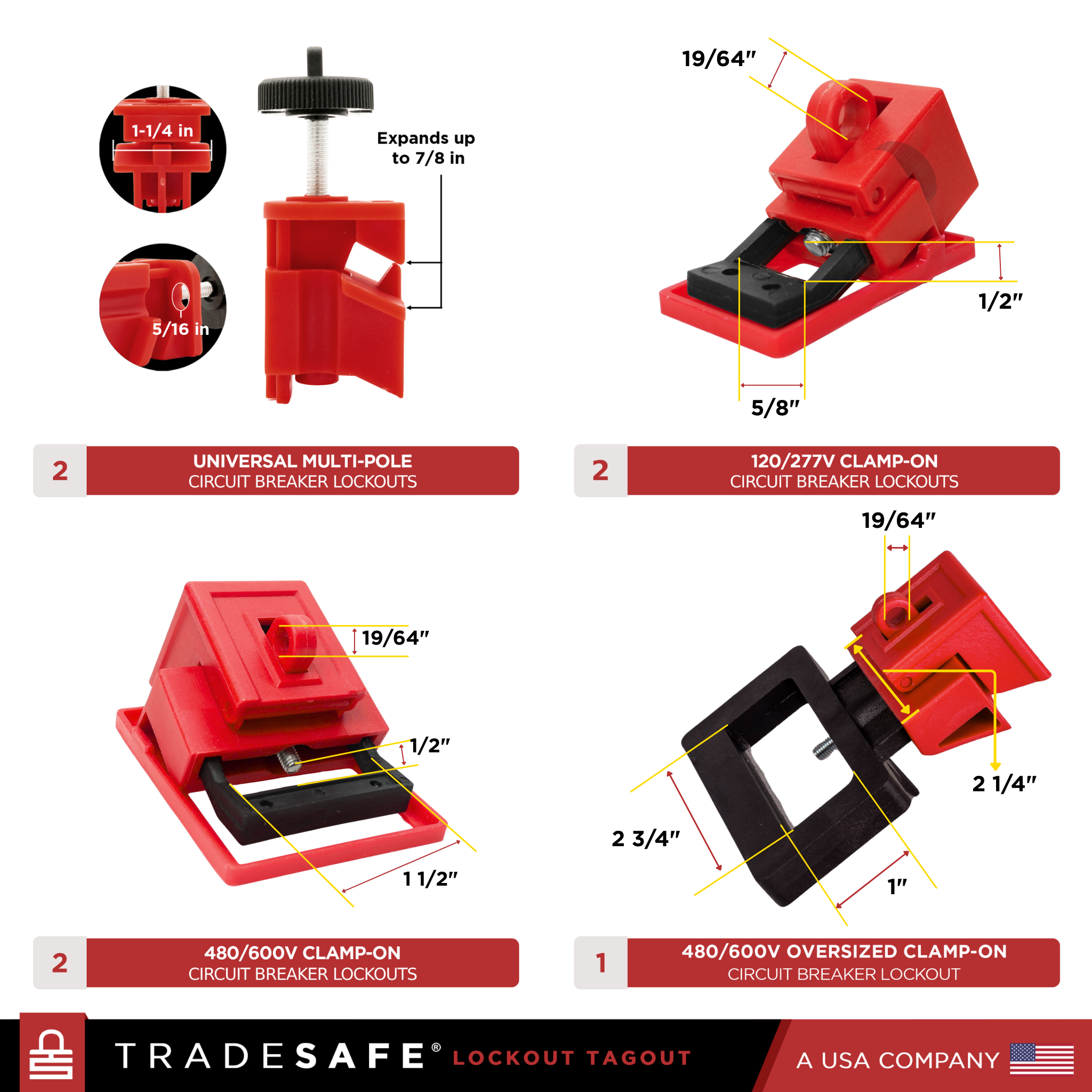

Circuit Breaker Lockouts

  • 120/277V: lockable toggle range of up to 5/8" x 1/2"
  • 480/600V clamp-on circuit breaker lockouts: lockable toggle range of up to 1/2" x 1-1/2"
  • Over Sized 480/600V clamp-on circuit breaker lockout (XL): lockable toggle range of up to 1” x 2-3/4"

These clamp-on devices are made out of nylon, making them durable and non-conducting. The lockout can be applied without special tools and integrates a lockout point into the device itself. These devices are ideal for handling single breakers or wall switch toggles.

Universal Multi-Pole Breaker Lockouts

  • Handle Range: 5/16” to 19/32”
  • Padlock Hole: 5/16”

These lockouts fit most modern single and multi-pole circuit breakers and will isolate the device either individually or in a multi-pole configuration. The device can be deployed without tools, has an integrated lockout point, and is manufactured from durable non-conducting nylon.

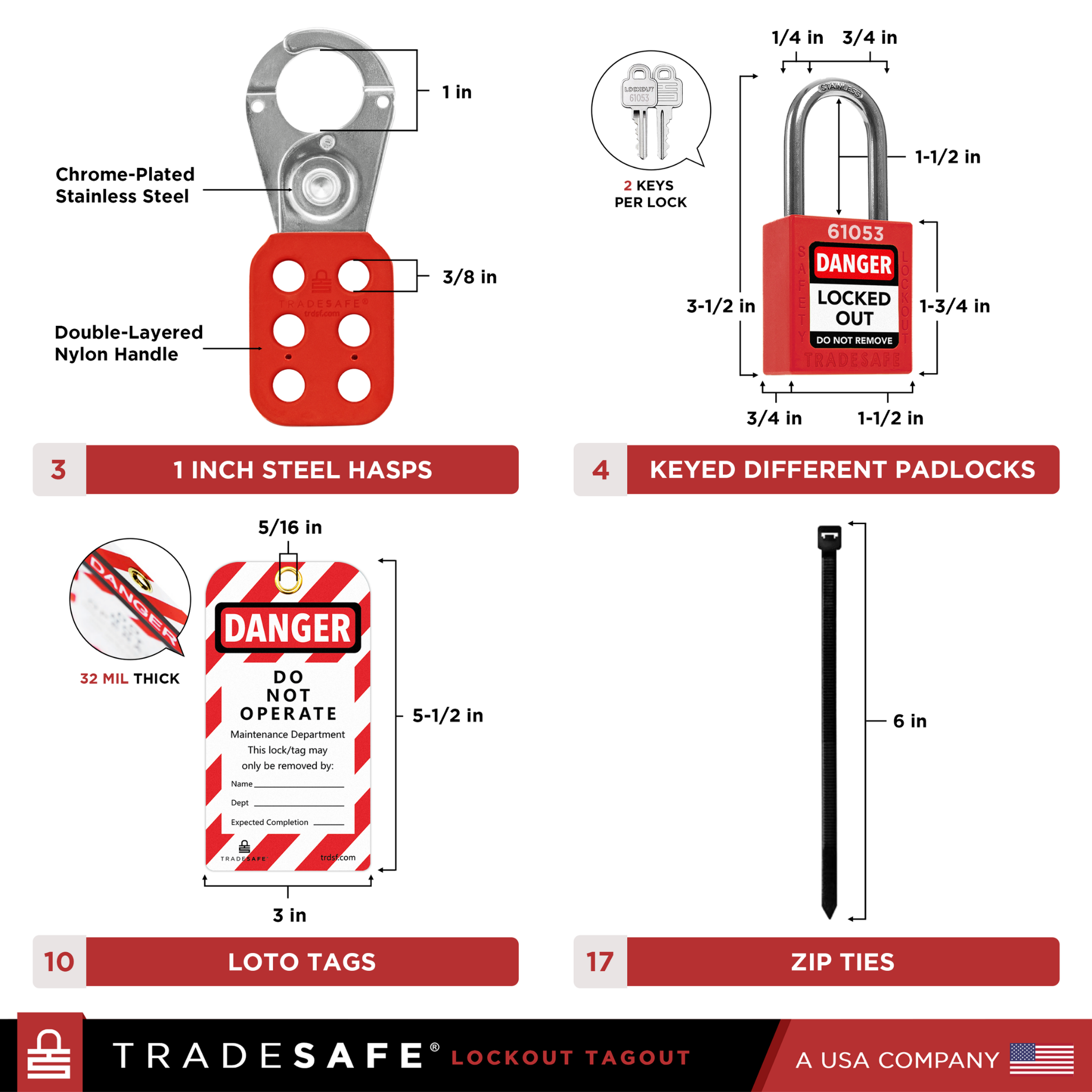

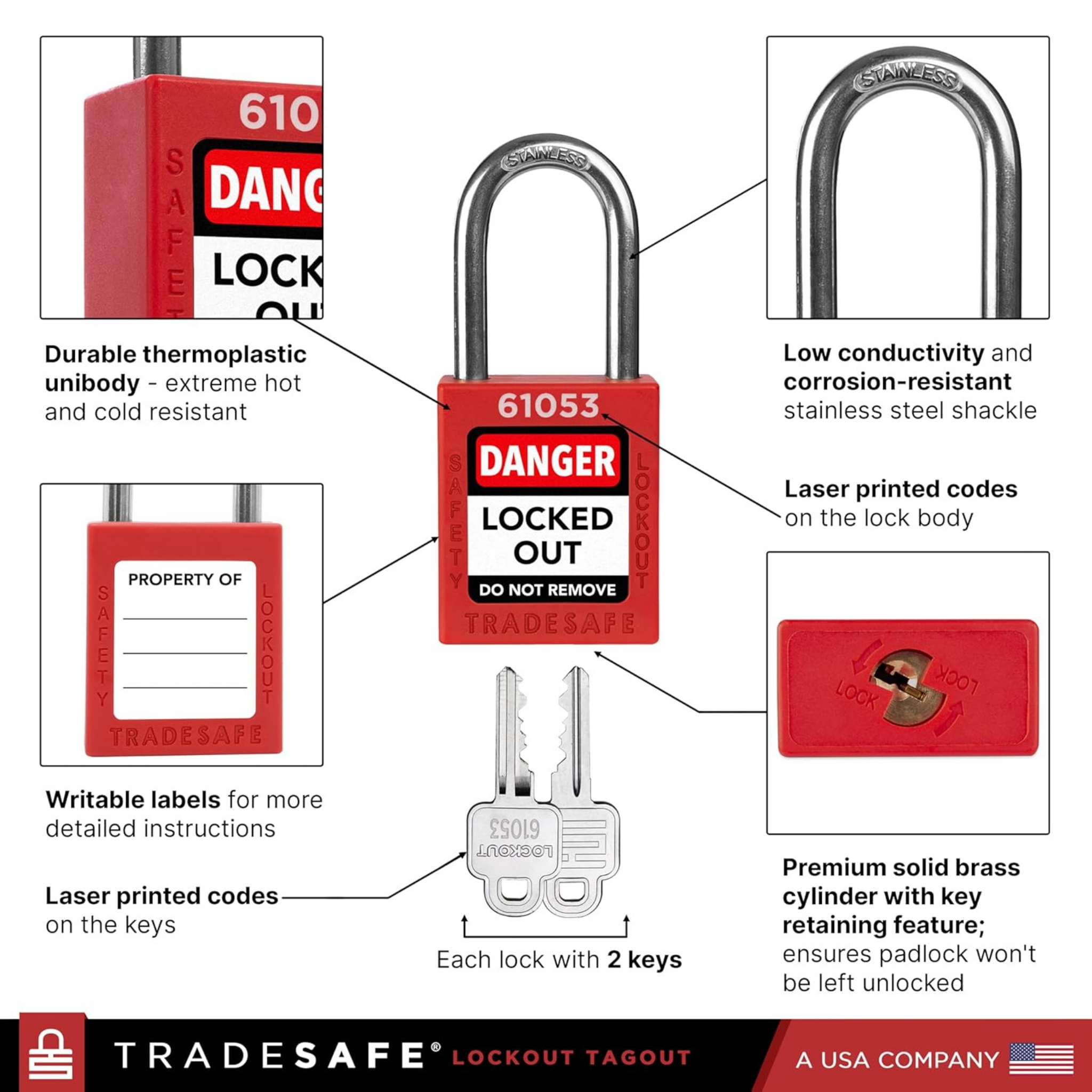

Safety Padlocks

  • Lock Body: 1-3/4" x 1-1/2" x 3/4"
  • Shackle Length: 1-1/2"
  • Shackle Diameter: 1/4"

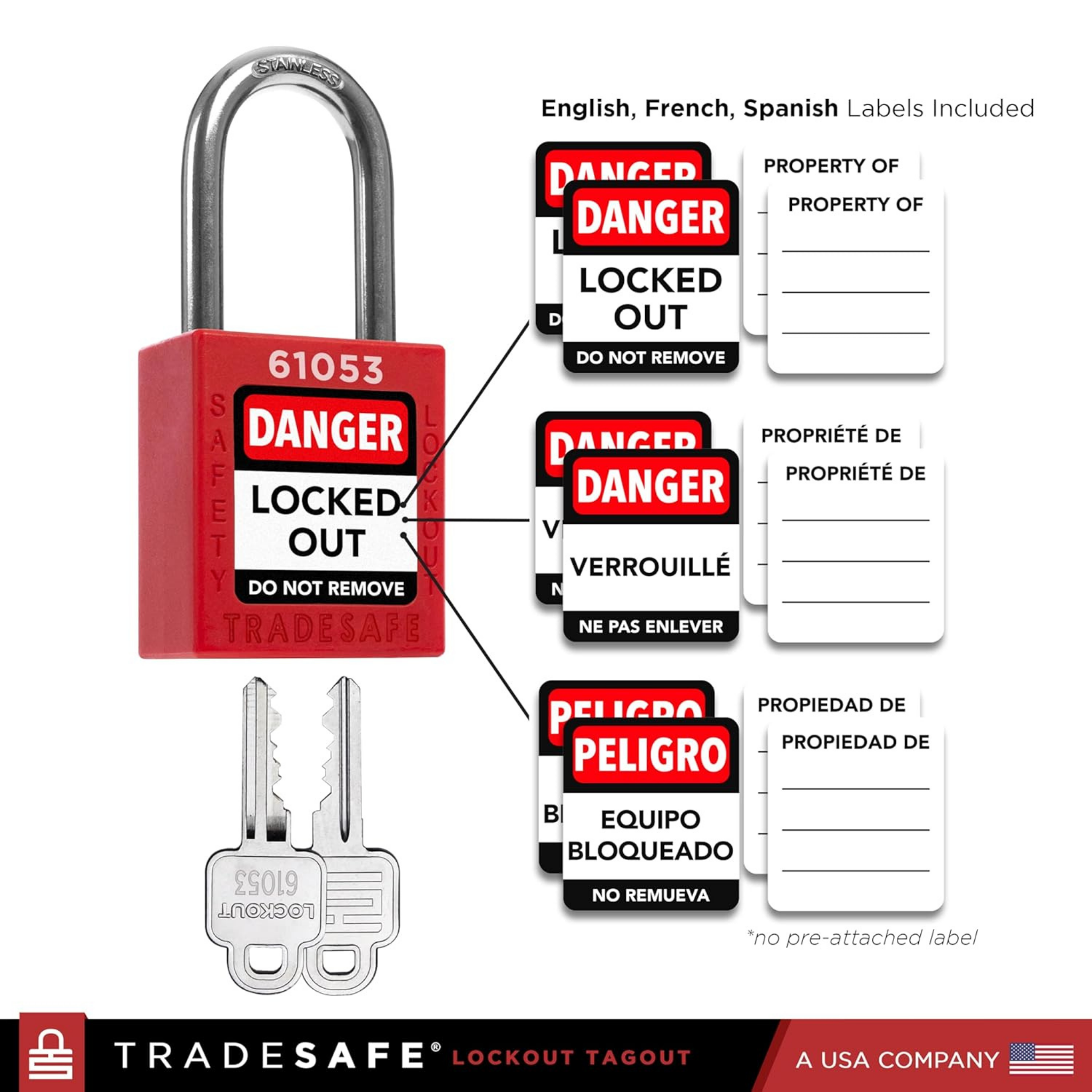

These locks are non-conductive and corrosion-resistant thanks to their thermoplastic uni-body design. The locks come with unique serial numbers printed on both sides for easy identification. All locks come with 2 keys per lock.

The cylinder is solid brass and has a key retaining feature that ensures that users won’t be able to remove the keys until the lock is engaged. Meanwhile, the shackle is made of stainless steel and is 1-½” wide to accommodate most lockout applications.

Lockout Hasps

  • Lock Shackle Diameter: 1”

The jaws are made of chrome-plated steel for durability. The nylon handles, meanwhile, are non-conductive, non-binding, and allow 1 to 6 padlocks to be used at once.

Writeable Lockout Tags

  • Dimensions: 5-1/2" x 3”; 5/16” (tie hole); 32 Mil Thick

These tags have been specifically designed for safety. The tags can be labeled with specific information for the hazard and the employee working on it. Each tag is made of 32-mil thick vinyl, making it rip- and tear-resistant, waterproof, weatherproof, and corrosion-resistant. The bold red and white pattern, as well as the ‘Danger’ ‘DO NOT OPERATE’ labels, make the tags easily visible and identifiable.

Heavy-Duty Zip Ties

  • Length: 6”

These ties can be easily attached by hand, but they won’t be as easy to untie. They are self-locking, non-releasable, non-reusable, and will need more than 50 pounds of pressure in order to be unlocked.


OSHA Compliance

Compliance with the OSHA Standard for The Control of Hazardous Energy (Lockout/Tagout) (29 CFR 1910.147) is vital to the safety of every employee on site. That’s why we make sure that all of our products help workplaces remain OSHA-compliant.

TRADESAFE products are made with the requirements for lockout tagout devices in mind. These are the requirements pursuant to OSHA Standard 1910.147:

  • Durable: Devices must be able to withstand exposure to the environment in which they will be used for as long as necessary.
  • Standardized: Devices used in a facility must be standardized according to color, shape, or size.
  • Substantial: Devices must be difficult to remove without the use of excessive force or techniques that are not typically used to remove the devices. They should also be able to prevent accidental removal.
  • Identifiable: Devices must be able to identify the employee who applied them.
  • Exclusive for Safety: Devices must not be used for any purpose other than controlling energy.


TRADESAFE: A Trusted USA-Based Partner in Lockout Tagout

  • TRADESAFE is a USA-based company well-versed in OSHA regulations
  • People-centered supplier of safety products
  • High-quality products made of heavy-duty and durable materials
  • Constant innovation and continuous adaptation to new standards

TRADESAFE is your partner in safety and we always keep the seriousness of that role in mind. That’s why all of our lockout tagout products are industrial-grade and meet regulatory standards. They are all ideal for use in the lockout of electrical and many other energy applications.

We don’t want to just be your supplier. We want to be your partner. For this reason, we approach things differently. Each and every day our team works to improve our products and the services we provide to the great people and businesses that put so much faith in us.

TRADESAFE is a USA-based company. This helps us stay up to date on the latest OSHA safety standards. We are inspired by the American worker and we are honored to help keep you safe from harm and hazards.
