Keyed Different Lockout Locks - 7 Red Padlocks - 1 Key Per Lock

TRADESAFE keyed-different lockout tagout locks provide maintenance teams, electricians, safety managers, and authorized employees with individually keyed padlocks for hazardous energy control procedures. This set includes seven red locks with one matching key per padlock, making it a practical option for facilities that assign personal LOTO locks to multiple workers during equipment service, repair, inspection, and shutdown tasks.

Each padlock combines a lightweight, nonconductive thermoplastic body with a corrosion-resistant stainless steel shackle and a key-retaining brass core cylinder. Every lock in the set has a unique key code, and matching identification codes are permanently marked on the lock body and corresponding key to simplify pairing and support organized personal key control.

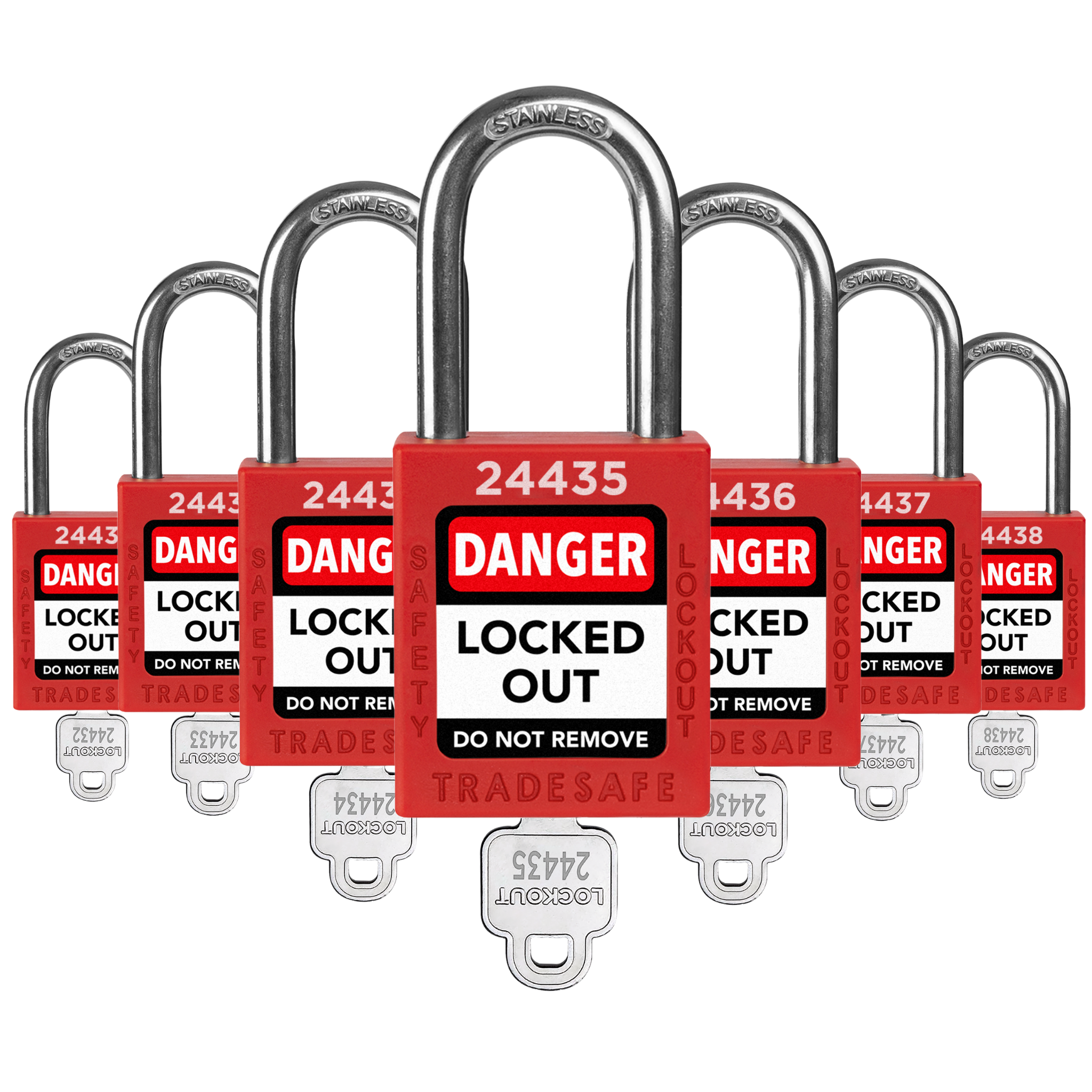

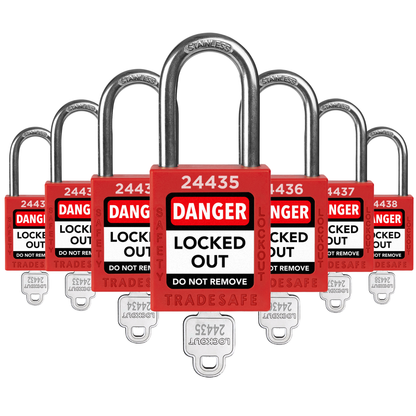

LOTO Lock Set with 7 Keyed-Different Red Padlocks

This LOTO lock set is designed for workplaces that issue individually keyed padlocks for personal lockout assignments. Each lock operates with its own key combination, so the key supplied with one padlock cannot open any of the other six locks in the set.

Part number: TS1KD7R. Similar industry part number: 410RED

Product details include:

• Pack quantity: 7 red lockout tagout locks
• Keying configuration: keyed different
  • Each padlock has a unique key code
  • The key for one padlock cannot unlock the other locks in the set
• Keys included: 1 matching key per lock
  • Total keys included: 7
• Identification system:
  • Matching code permanently marked on each lock body and corresponding key
  • Helps employees identify the correct key without testing multiple locks

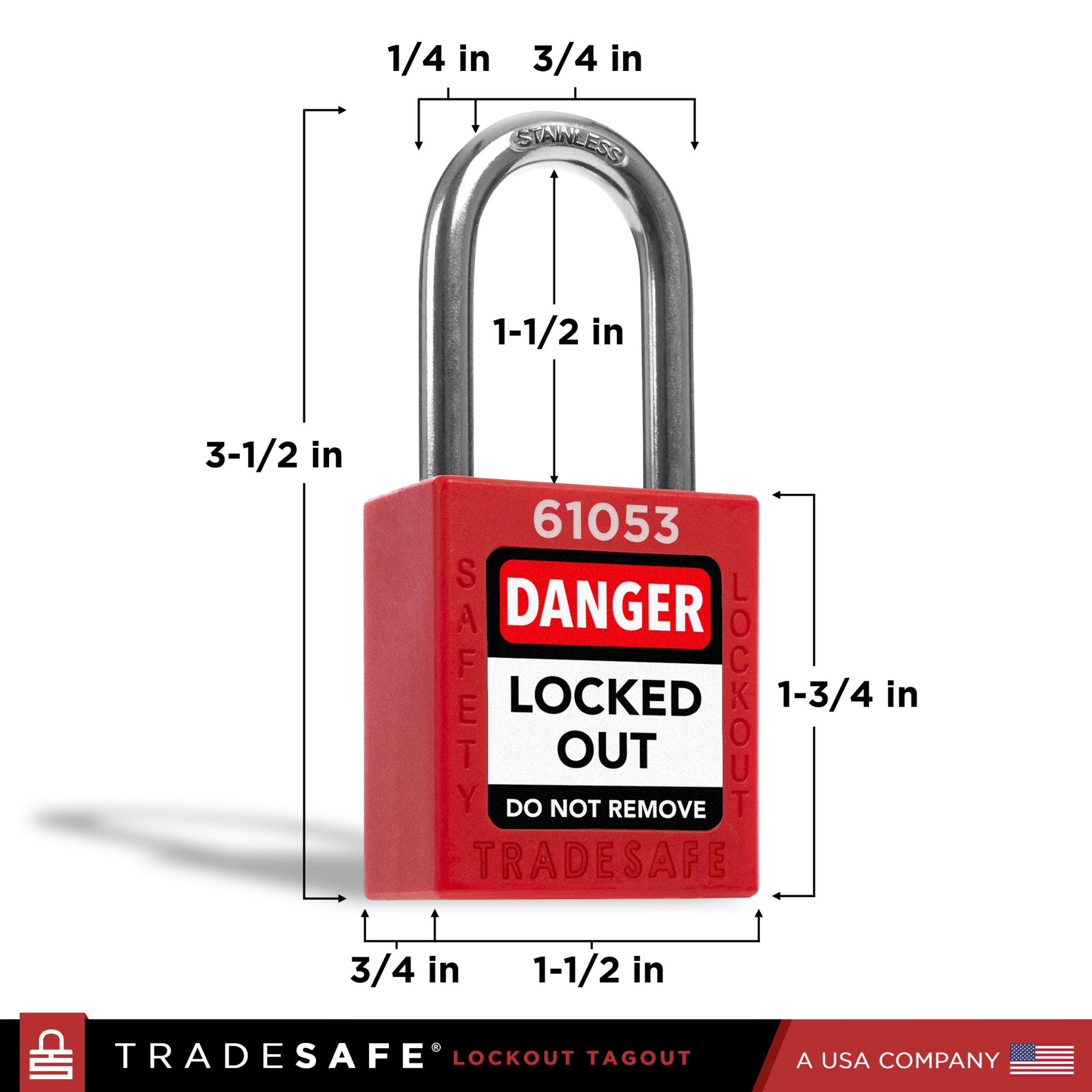

• Dimensions:
  • Overall padlock dimensions: 1-1/2" W x 3/4" D x 3-1/2" H
  • Lock body dimensions: 1-1/2" W x 3/4" D x 1-3/4" H
  • Shackle diameter: 1/4"
  • Shackle length: 1-1/2"
• High-visibility red lock bodies
• Seven personal padlocks for individual employee assignments

The keyed-different configuration supports individual key control and clearer employee accountability during lockout procedures. This seven-pack is well suited for maintenance departments, electrical crews, contractors, production facilities, utilities, and smaller teams that issue one dedicated safety lock and key to each authorized employee.

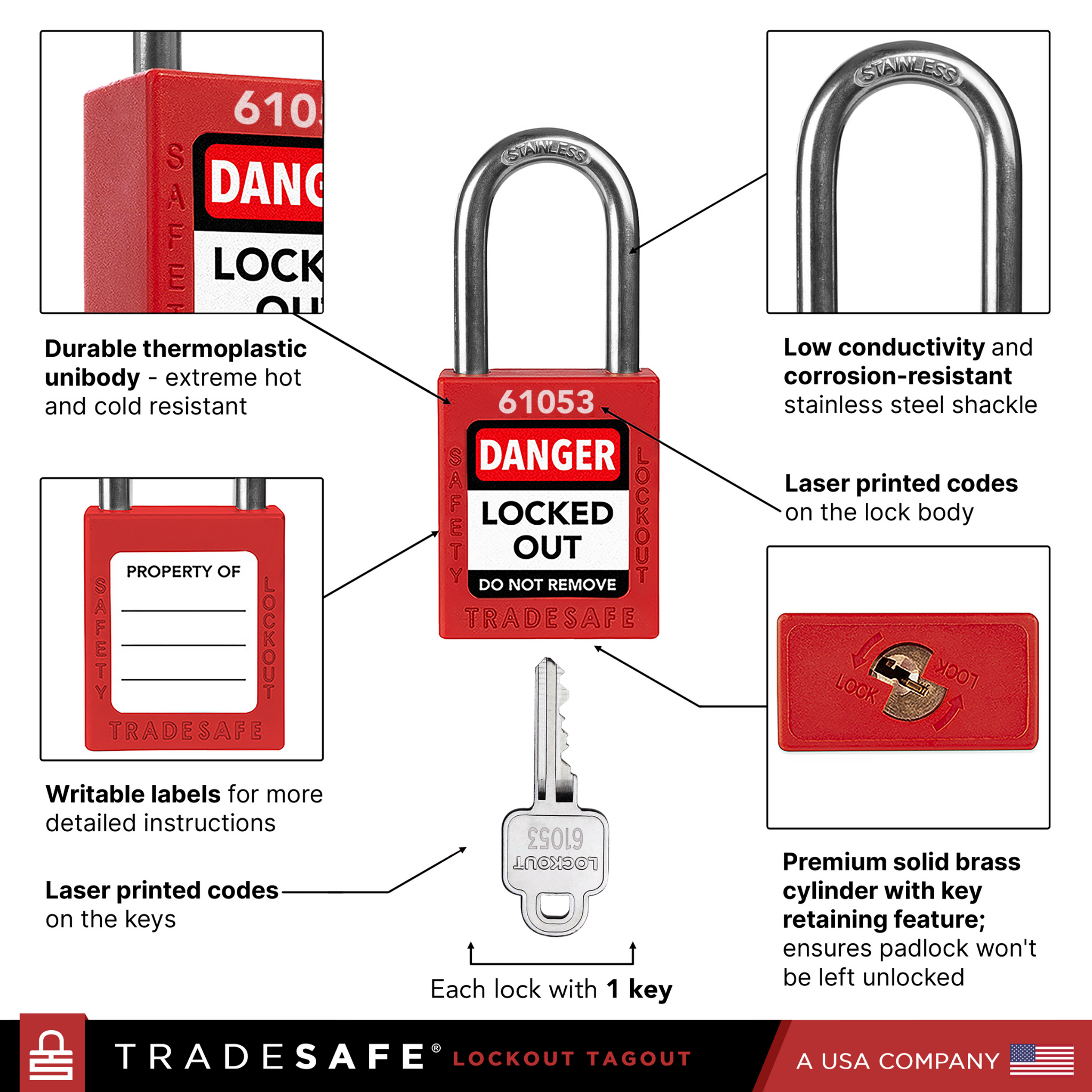

Lockout Lock Construction for Demanding Work Environments

Each lockout lock is made with materials selected for frequent handling and routine use in industrial workplaces. The thermoplastic body is formed as a single seamless unit, providing a lightweight, impact-resistant, and nonconductive housing for electrical lockout applications and other hazardous energy isolation points.

Construction and operating features include:

• Heavy-duty thermoplastic unibody
  • Nonconductive lock body
  • Single-injection construction
  • Seamless housing without joined body sections
  • Lightweight design for daily carrying and use
• Corrosion-resistant stainless steel shackle
  • Solid construction for repeated workplace use
  • 1/4" diameter
  • 1-1/2" length
  • Suitable for compatible lockout devices, hasps, and isolation points
• Spring-loaded shackle
  • Pops open when the padlock is unlocked
  • Reduces the need to pull the shackle manually
  • Helps limit sticking and jamming during regular operation
• Premium brass core cylinder
  • Durable internal locking mechanism
  • Key-retaining design
  • Keeps the key captured while the padlock is open
  • Releases the key only after the shackle is securely closed
• Permanently marked identification
  • Matching code on the lock body and corresponding key
  • Supports faster lock-and-key pairing
  • Helps reduce key mix-ups when several personal locks are stored together

The combination of a seamless thermoplastic body, stainless steel shackle, brass cylinder, and spring-loaded mechanism provides a practical balance of durability, low conductivity at the lock body, corrosion resistance, and manageable weight. These padlocks are suitable for regular use in electrical rooms, production areas, machinery zones, maintenance departments, utility spaces, and other industrial lockout locations.

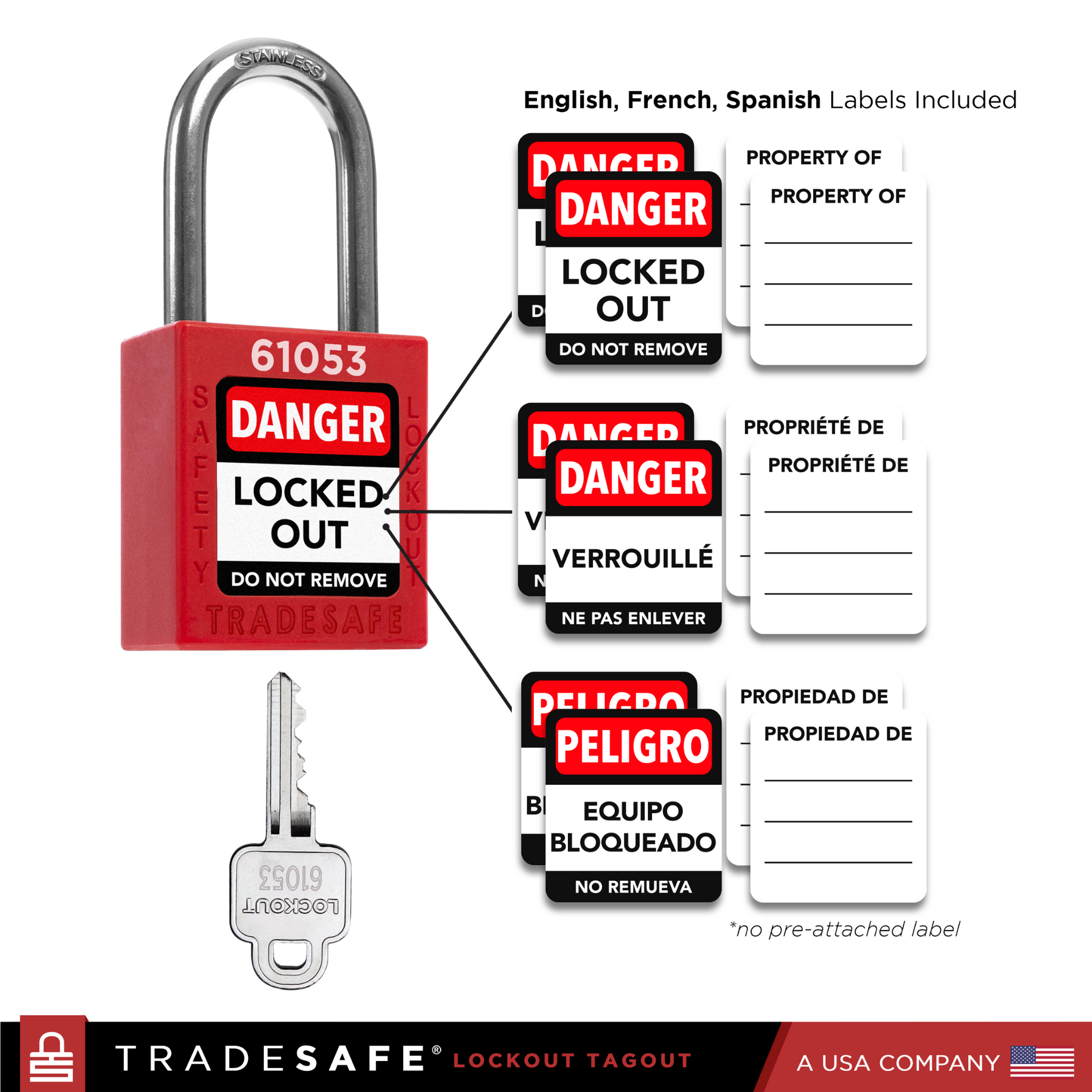

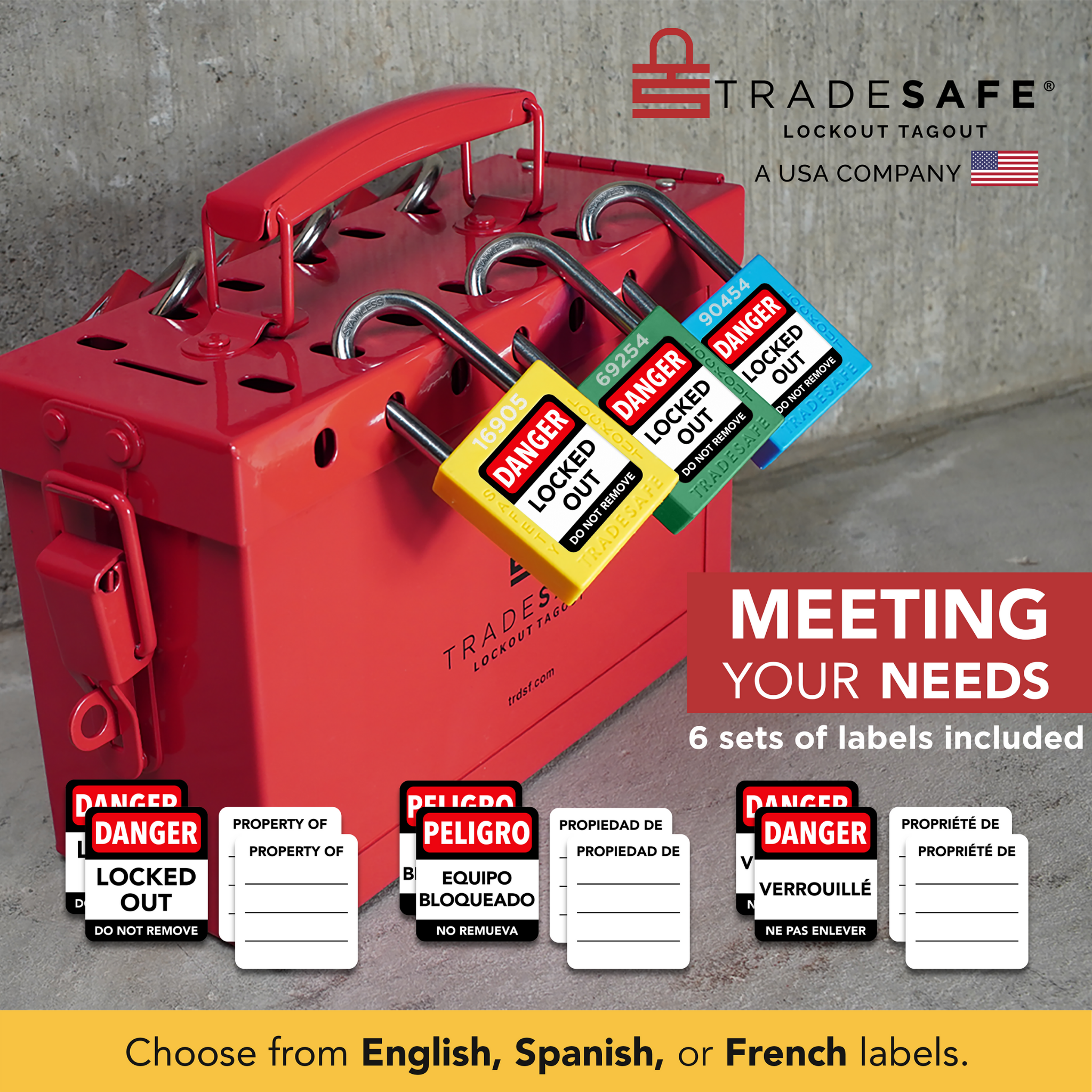

LOTO Padlocks with Multilingual Identification Labels

These LOTO padlocks include multilingual warning and identification labels that help communicate lockout status and identify the authorized employee who applied each lock. Every padlock comes with label options in English, Spanish, and French, making the set suitable for multilingual teams and facilities with standardized identification procedures.

Each lock includes six label sets:

• Two English label sets
  • “Danger Locked Out Do Not Remove” front warning label
  • Writable rear label for employee and lockout information
• Two Spanish label sets
  • “Peligro Equipo Bloqueado No Remueva” front warning label
  • Writable rear label for employee and lockout information
• Two French label sets
  • “Danger Verrouillé Ne Pas Enlever” front warning label
  • Writable rear label for employee and lockout information

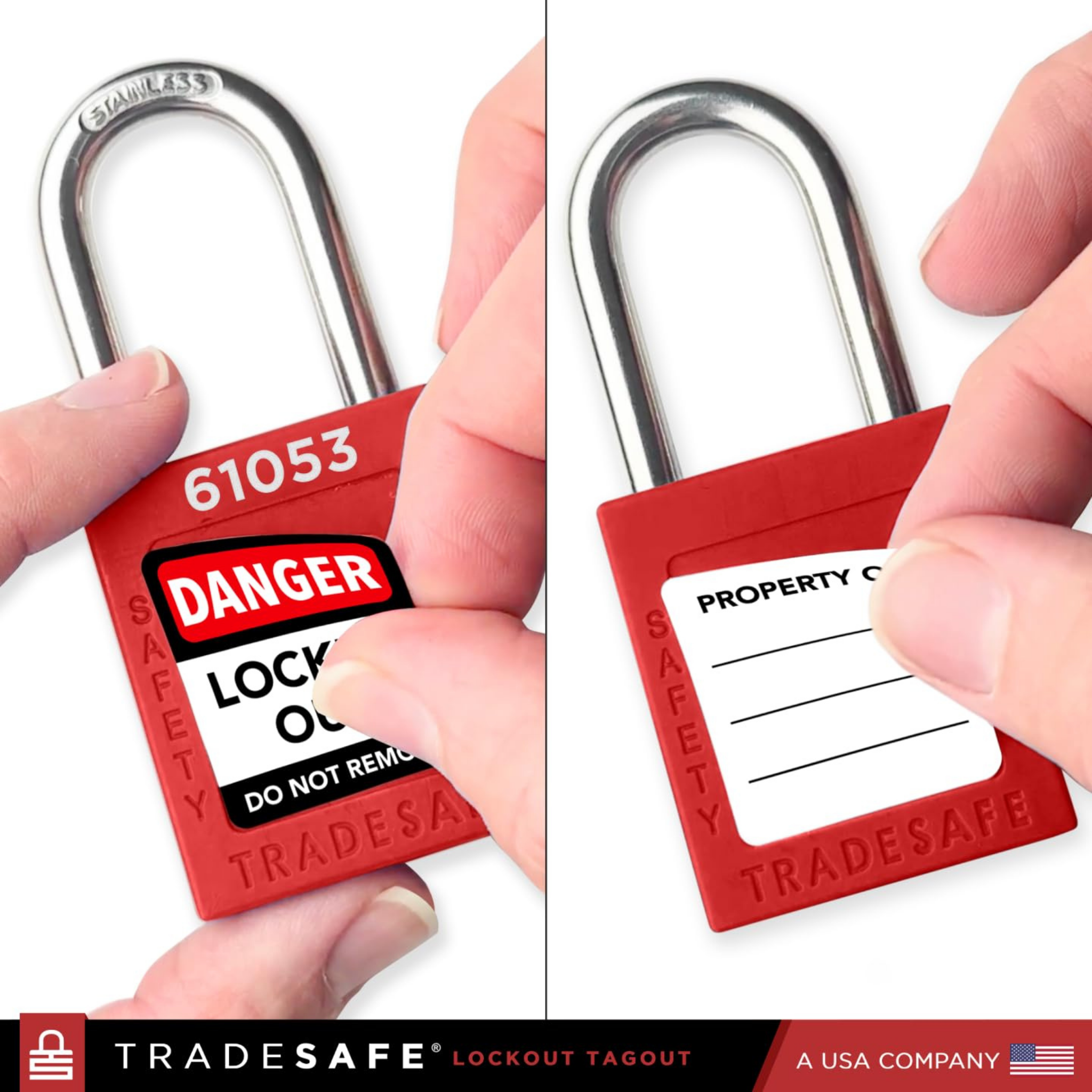

The front label clearly indicates that the equipment is locked out and must not be operated, while the writable rear label provides space for an employee name, department, contact details, instructions, or other information required by the facility. This combination helps workers communicate both the status of the isolation point and the identity of the person responsible for the lock.

Together with the unique key codes and matching identification marks, the labels support more consistent personal lockout practices and easier equipment management. The high-visibility red bodies also help distinguish these padlocks as dedicated hazardous energy control devices rather than general-purpose security locks.

Lockout Locks Keyed Different for OSHA-Aligned Procedures

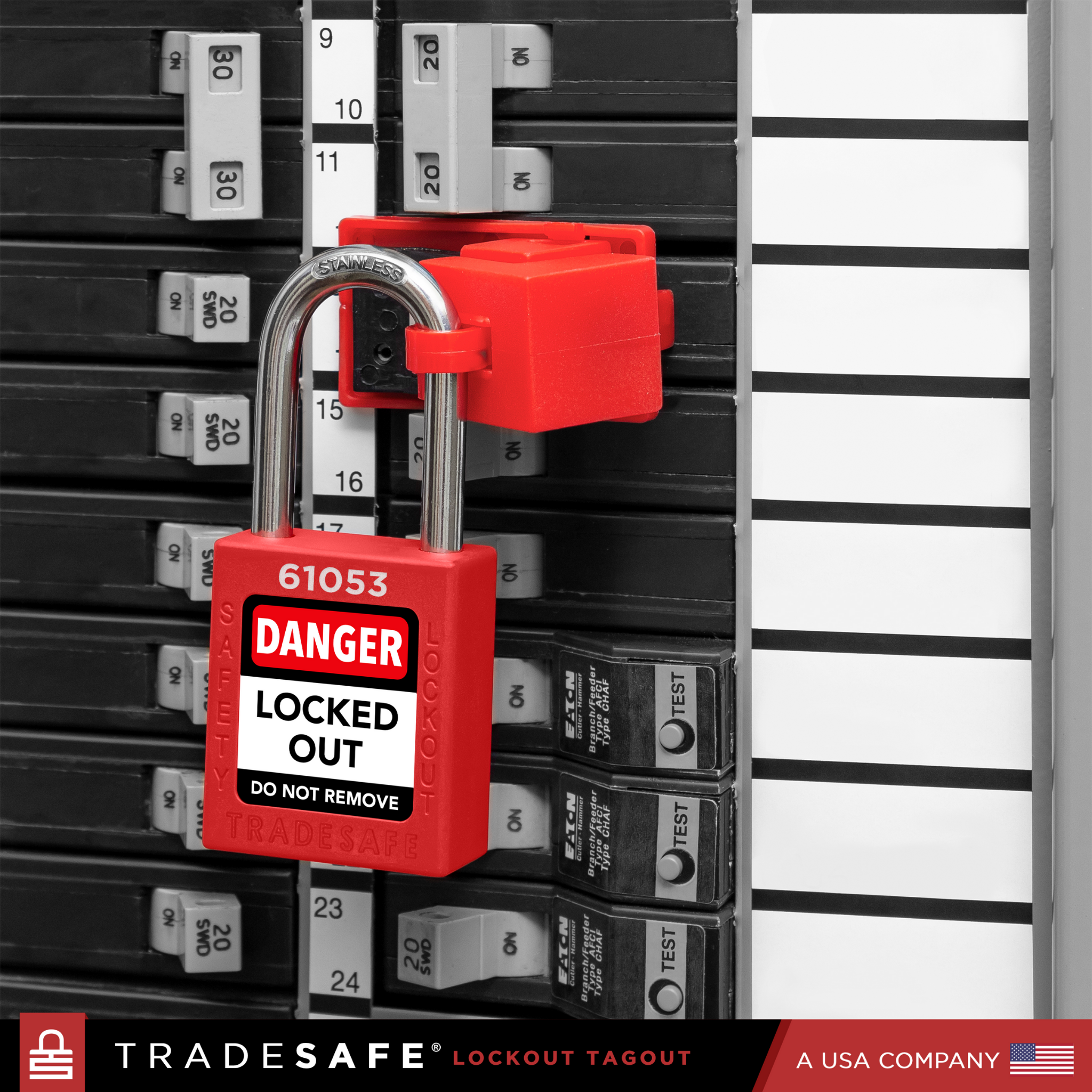

Lockout locks keyed different are commonly used when each authorized employee must maintain control of a separate personal padlock and key. These TRADESAFE locks are developed and tested with the lockout device principles addressed by OSHA 29 CFR 1910.147 in mind, helping facilities support procedures that require durable, standardized, substantial, identifiable, and dedicated energy control devices.

The red bodies help facilities standardize safety equipment by color, while the unique cylinders prevent one employee’s key from opening another worker’s lock. The key-retaining mechanism keeps the key captured until the shackle is closed, and the multilingual labels provide visible warning communication together with space for employee identification. TRADESAFE keyed-different locks are also available in purple, green, orange, blue, black, white, and yellow for facilities that organize LOTO equipment by department, trade, energy source, work area, or employee group.

Equip seven authorized employees with individually keyed personal safety padlocks. Keep every lock easier to identify through matching codes, multilingual labels, and high-visibility red bodies. Choose this TRADESAFE seven-pack for organized key control and more consistent daily lockout procedures.

OSHA-Compliant LOTO Lock

Compliance with the OSHA Standard for The Control of Hazardous Energy (Lockout/Tagout) (29 CFR 1910.147) is vital to the safety of every employee on site. That’s why we make sure that all of our products help workplaces remain OSHA-compliant.

TRADESAFE products are made with the requirements for lockout tagout devices in mind. These are the requirements pursuant to OSHA Standard 1910.147:

• Durable: Devices must be able to withstand exposure to the environment in which they will be used for as long as necessary.
• Standardized: Devices used in a facility must be standardized according to color, shape, or size.
• Substantial: Devices must be difficult to remove without excessive force or techniques that are not typically used to remove the devices. They should also be able to prevent accidental removal.
• Identifiable: Devices must be able to identify the employee who applied them.
• Exclusive for Safety: Devices must not be used for any purpose other than controlling energy
