Large Push Button Lockout – Round – 5 Pack

TRADESAFE push-button lockout covers provide a clear protective barrier around compatible control buttons while helping restrict accidental or unauthorized operation during maintenance, servicing, and controlled equipment shutdowns. This 5-pack features the larger round configuration with a 1-1/8-inch installation opening and 1-3/4-inch inner diameter, making it suitable for compatible controller buttons, start/stop controls, emergency stop buttons, and similar industrial switches.

Each cover is made from transparent, impact-resistant polycarbonate that keeps the enclosed control visible without leaving it directly accessible once the device is secured. Double-faced adhesive tape is included for mounting, while the hinged cover and dedicated lock hole allow each unit to be secured with one compatible LOTO padlock or hasp.

Push Button Lockout - Large Round, 5 Pack

This large round push button lockout configuration provides five individual covers for facilities that need to protect multiple compatible controls across machinery, panels, production areas, or maintenance locations. The larger internal dimensions provide additional clearance compared with smaller round models while maintaining a compact circular enclosure.

Part Number: TSE52

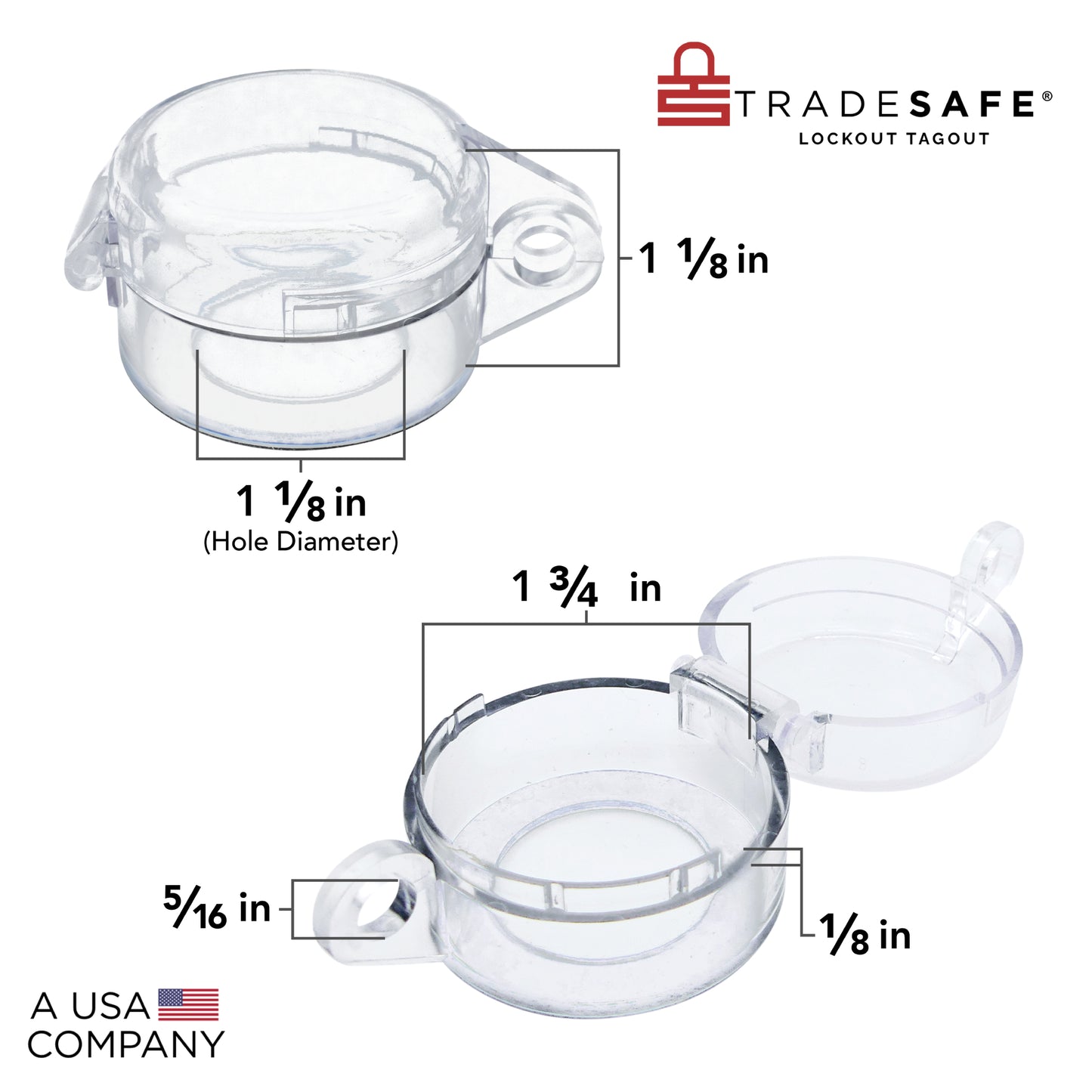

Product details include:

• Pack quantity: 5 large round push button lockout covers
• Installation hole diameter: 1-1/8"
• Inner height: 1-1/8"
• Inner body diameter: 1-3/4"
• Padlock hole diameter: 5/16"
• Polycarbonate thickness: 1/8"
• Transparent round enclosure
• Double-faced adhesive tape included
• Secures with 1 compatible safety padlock or hasp
• Padlock or hasp is not included

The 5-pack format gives maintenance departments, electrical teams, production facilities, and safety personnel several covers that can be installed across multiple control locations. Buyers should compare the mounting opening, internal clearance, button dimensions, and surrounding panel space with the product specifications before installation.

Push Button Lockout Device with Clear Polycarbonate Construction

Each push button lockout device is manufactured from transparent polycarbonate selected for durability, visibility, and repeated industrial use. The clear enclosure allows workers to identify the protected control and observe its position without opening the cover or removing the applied lock.

Construction features include:

• Impact-resistant transparent polycarbonate
  • Durable material for industrial environments
  • Maintains visibility of the enclosed control
• 1/8" polycarbonate thickness
• Resistance to:
  • Impact
  • Abrasion
  • Everyday wear
• Hinged round cover design
  • Encloses the compatible button or switch
  • Provides direct visual access without direct physical access

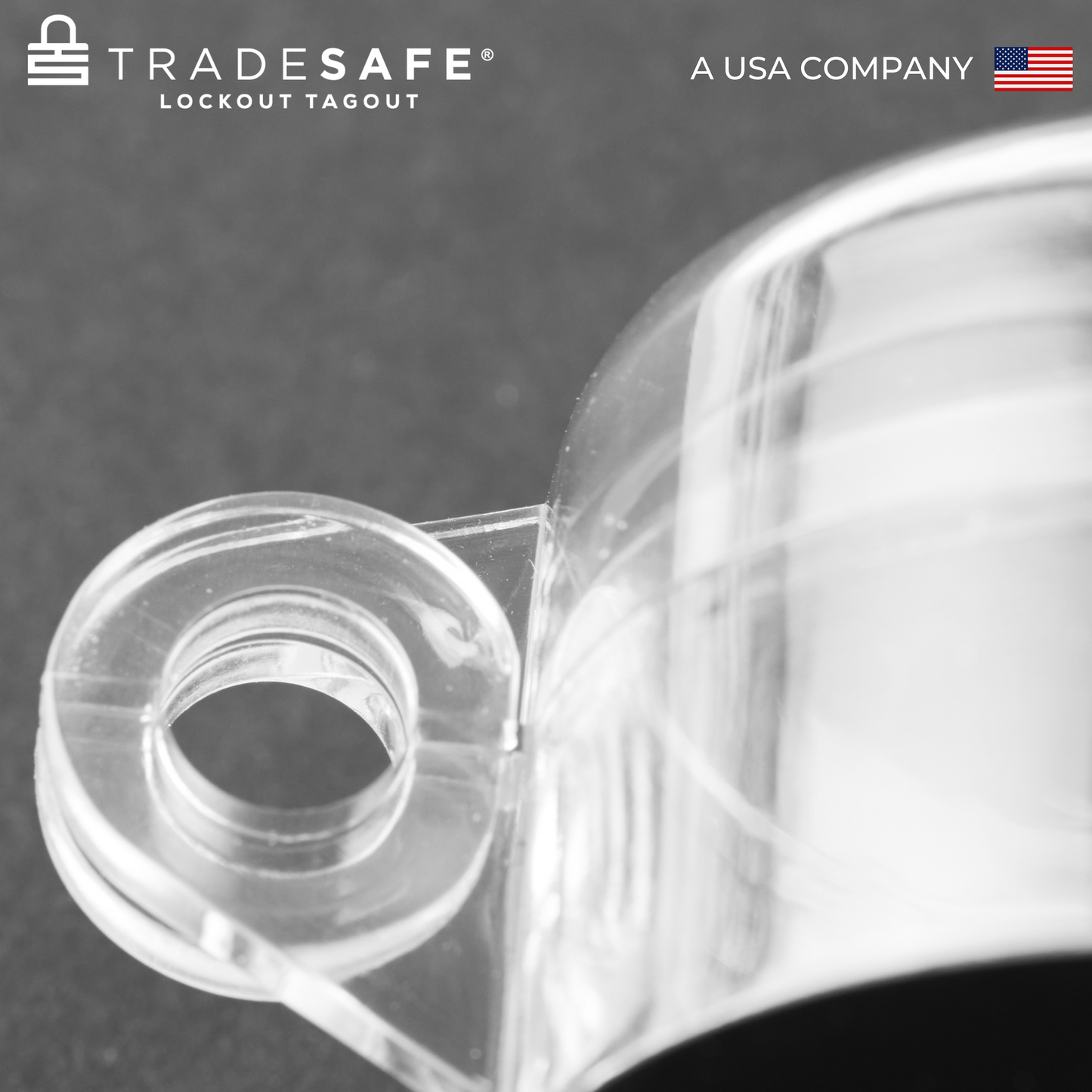

• Integrated 5/16" locking point

The transparent design is particularly useful on control panels where identifying the protected button remains important during servicing or shutdown activities. Rather than hiding the control behind an opaque enclosure, the cover keeps the button visible while the locking mechanism restricts direct operation.

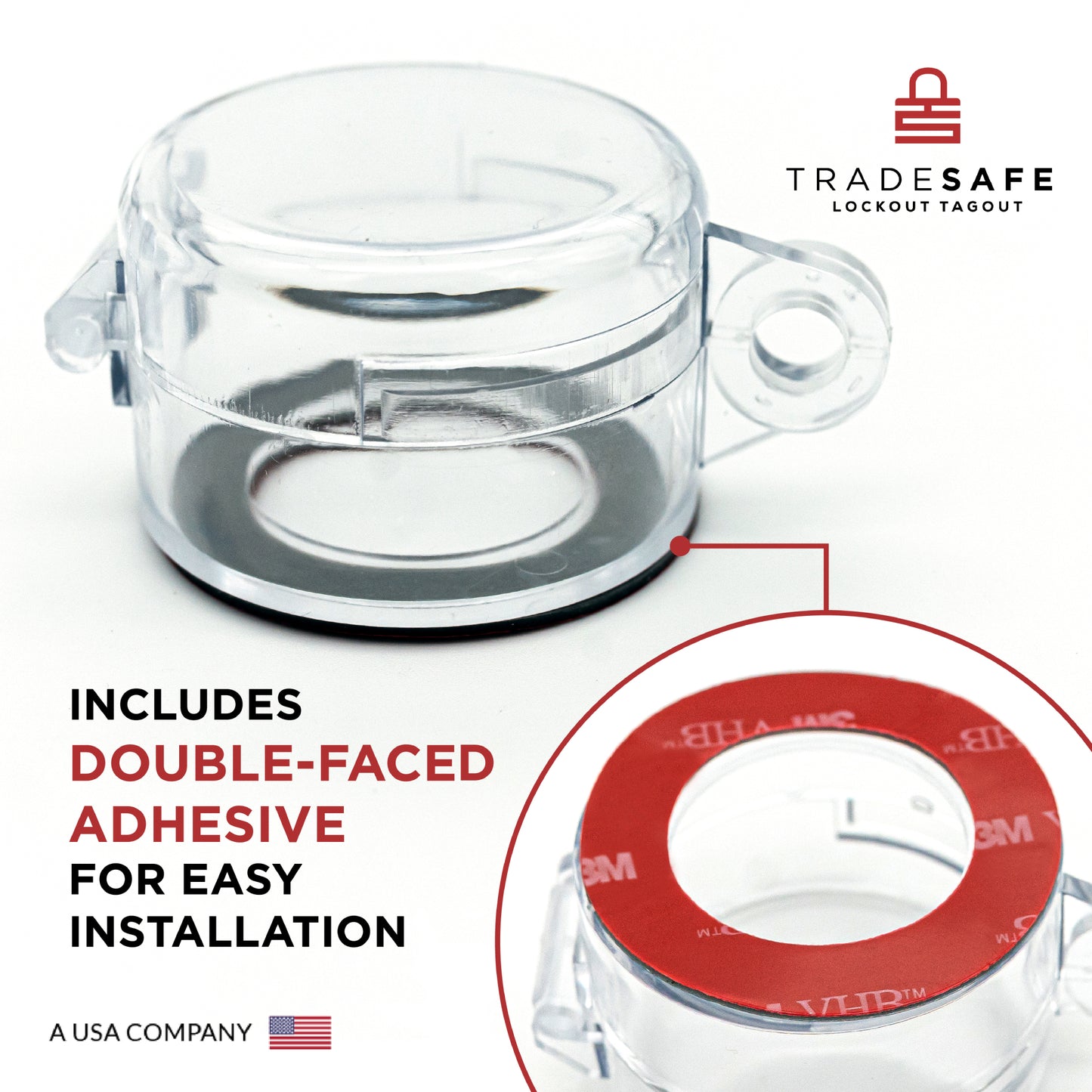

Push Button Lockout Cover with Adhesive Mounting

This push button lockout cover includes double-faced adhesive tape for mounting the base around a compatible control opening. The adhesive-backed design eliminates the need for a complex mounting system and allows the cover to remain positioned on the panel as a dedicated protective enclosure.

Mounting and operating features include:

• Double-faced adhesive tape included
• 1-1/8" installation opening
• Round base designed for compatible panel-mounted controls
• Hinged cover for convenient access when unlocked
• Dedicated padlock hole for securing the closed cover
• Compatible with one safety padlock or hasp with a 5/16" shackle diameter

Once mounted, the hinged design allows authorized personnel to open the cover when access is required and close it again before applying the appropriate lock. The permanent-position format also helps keep the lockout cover available at the control point rather than requiring a separate loose device to be located each time maintenance is performed.

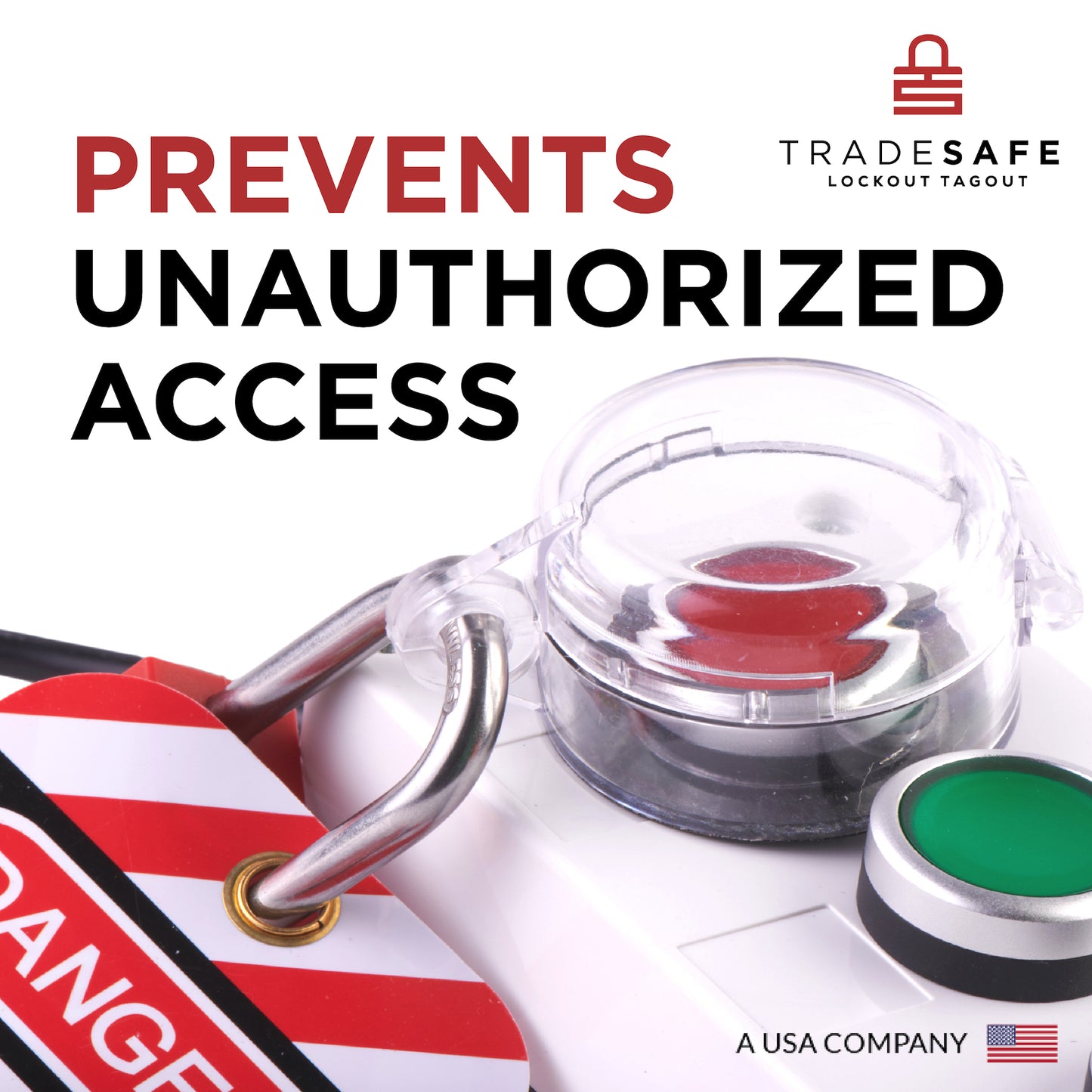

Emergency Stop Push Button Lockout for Controlled Access

This emergency stop push button lockout can be used with compatible emergency controls, controller buttons, start/stop buttons, and other panel-mounted switches that fit within the stated dimensions. The cover creates a physical barrier around the control while allowing workers to see what is enclosed through the transparent polycarbonate body.

The larger round configuration is especially useful where a medium-size cover does not provide sufficient internal clearance. Because button shapes, mounting arrangements, panel layouts, and control dimensions vary, users should confirm actual fit against the 1-1/8" installation opening, 1-1/8" inner height, and 1-3/4" inner diameter before selection.

Equip multiple control points with five TRADESAFE large round push button lockout covers featuring transparent polycarbonate construction, adhesive mounting, and individual locking points. Choose this larger configuration when compatible push buttons or emergency controls require additional internal clearance while maintaining clear visibility and controlled access during lockout/tagout activities.

OSHA-Compliant Push Button Lockout

Compliance with the OSHA Standard for The Control of Hazardous Energy (Lockout/Tagout) (29 CFR 1910.147) is vital to the safety of every employee on site. That’s why we make sure that all of our products help workplaces remain OSHA-compliant.

TRADESAFE products are made with the requirements for lockout tagout devices in mind. These are the requirements pursuant to OSHA Standard 1910.147:

• Durable: Devices must be able to withstand exposure to the environment in which they will be used for as long as necessary.
• Standardized: Devices used in a facility must be standardized according to color, shape, or size.
• Substantial: Devices must be difficult to remove without the use of excessive force or techniques that are not typically used to remove the devices. They should also be able to prevent accidental removal.
• Identifiable: Devices must be able to identify the employee who applied them.
• Exclusive for Safety: Devices must not be used for any purpose other than controlling energy.

TRADESAFE: A Trusted USA-Based Partner in Lockout Tagout

• TRADESAFE is a USA-based company well-versed in OSHA regulations
• People-centered supplier of safety products
• High-quality products made of heavy-duty and durable materials
• Constant innovation and continuous adaptation to new standards

TRADESAFE is your partner in safety and we always keep the seriousness of that role in mind. That’s why all of our lockout tagout products are industrial-grade and meet regulatory standards. They are all ideal for use in the lockout of electrical and many other energy applications.

We don’t want to just be your supplier. We want to be your partner. For this reason, we approach things differently. Each and every day our team works to improve our products and the services we provide to the great people and businesses that put so much faith in us.

TRADESAFE is a USA-based company. This helps us stay up to date on the latest OSHA safety standards. We are inspired by the American worker and we are honored to help keep you safe from harm and hazards.
