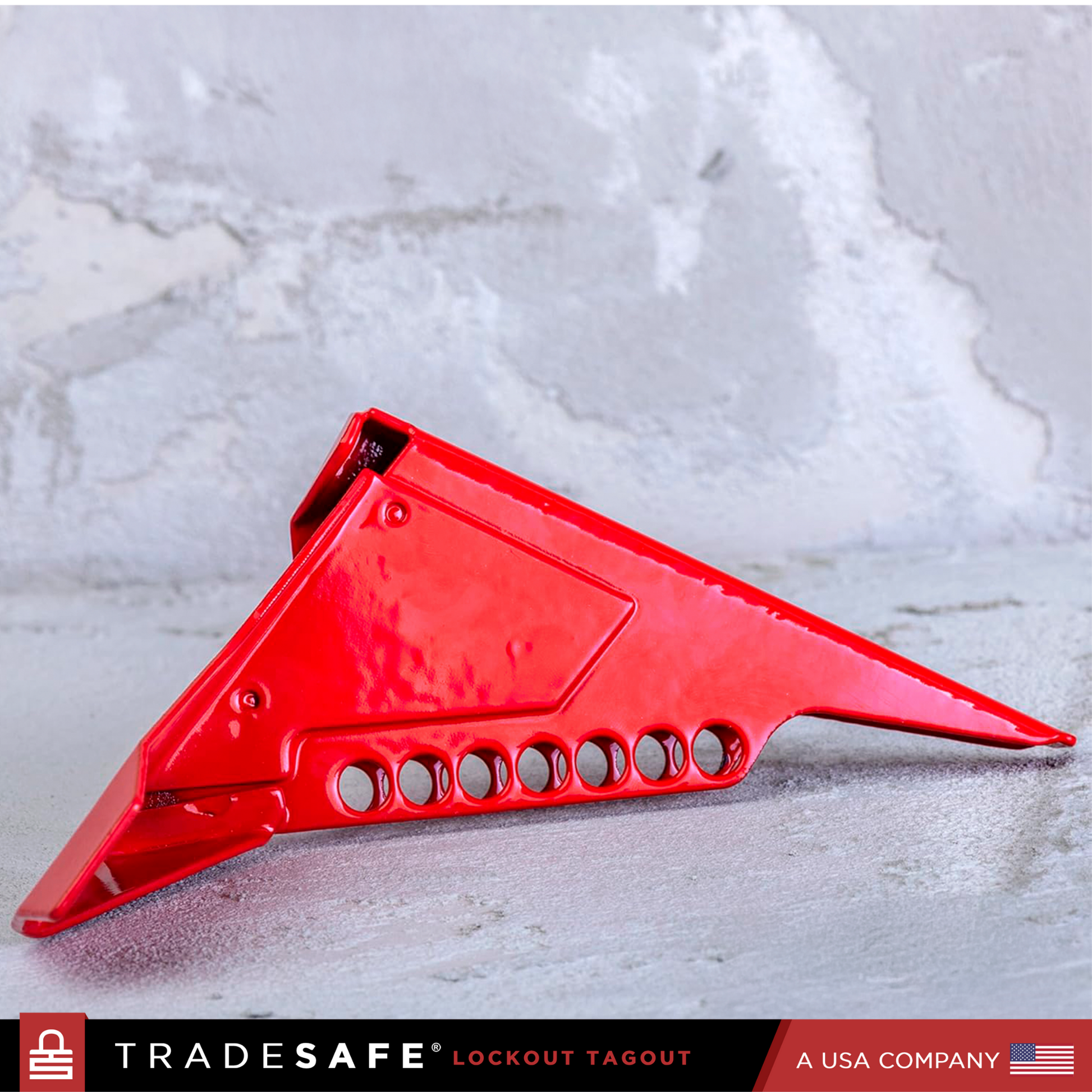

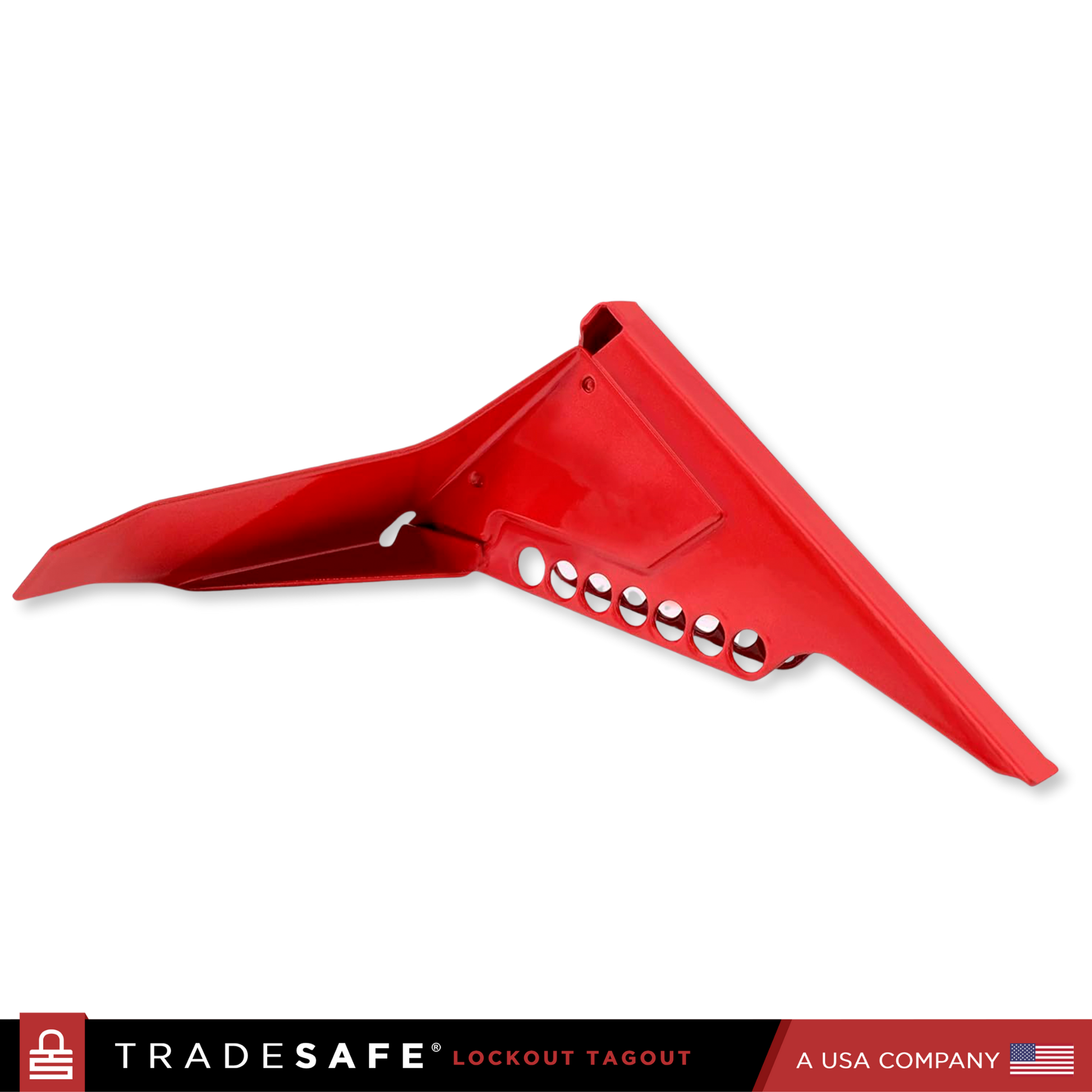

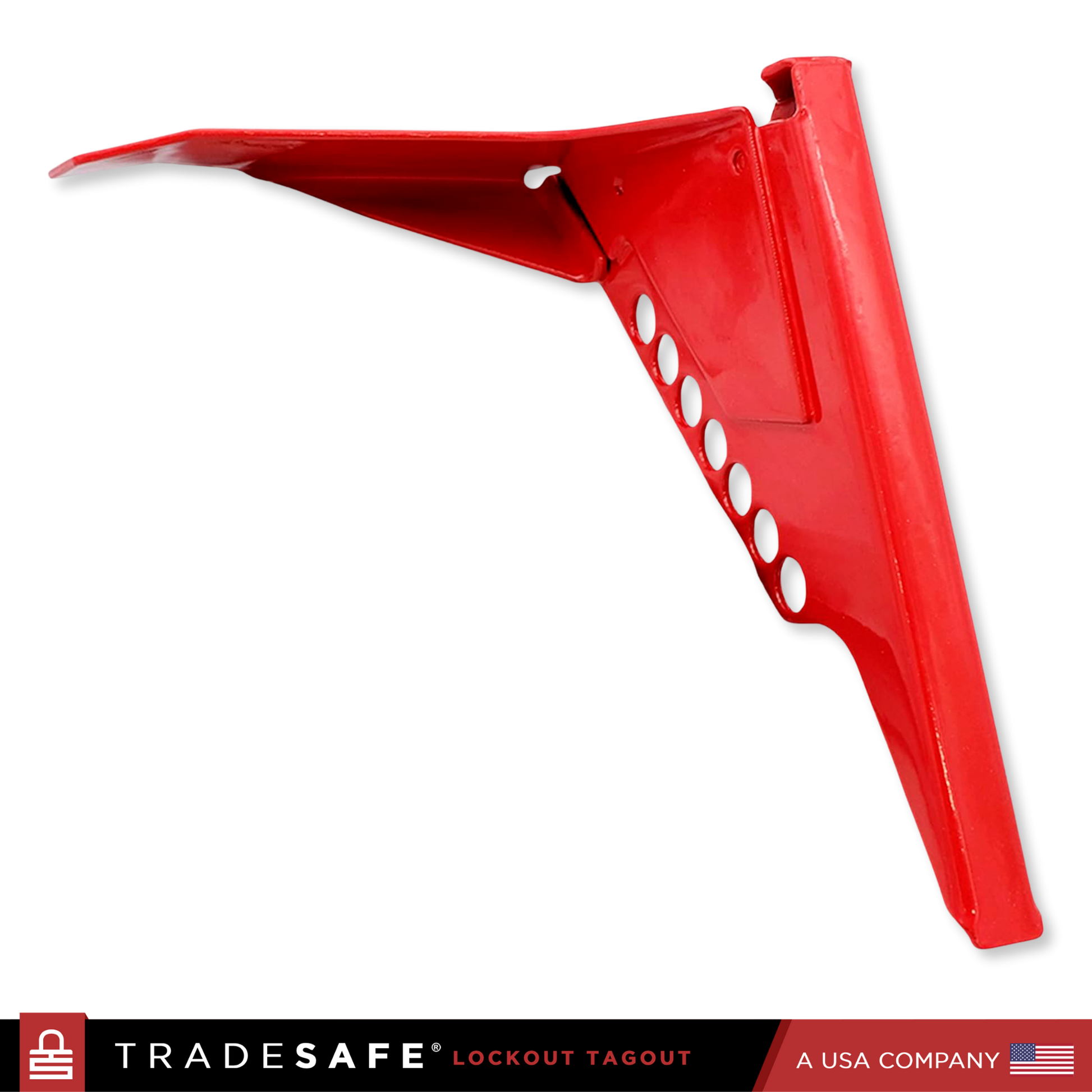

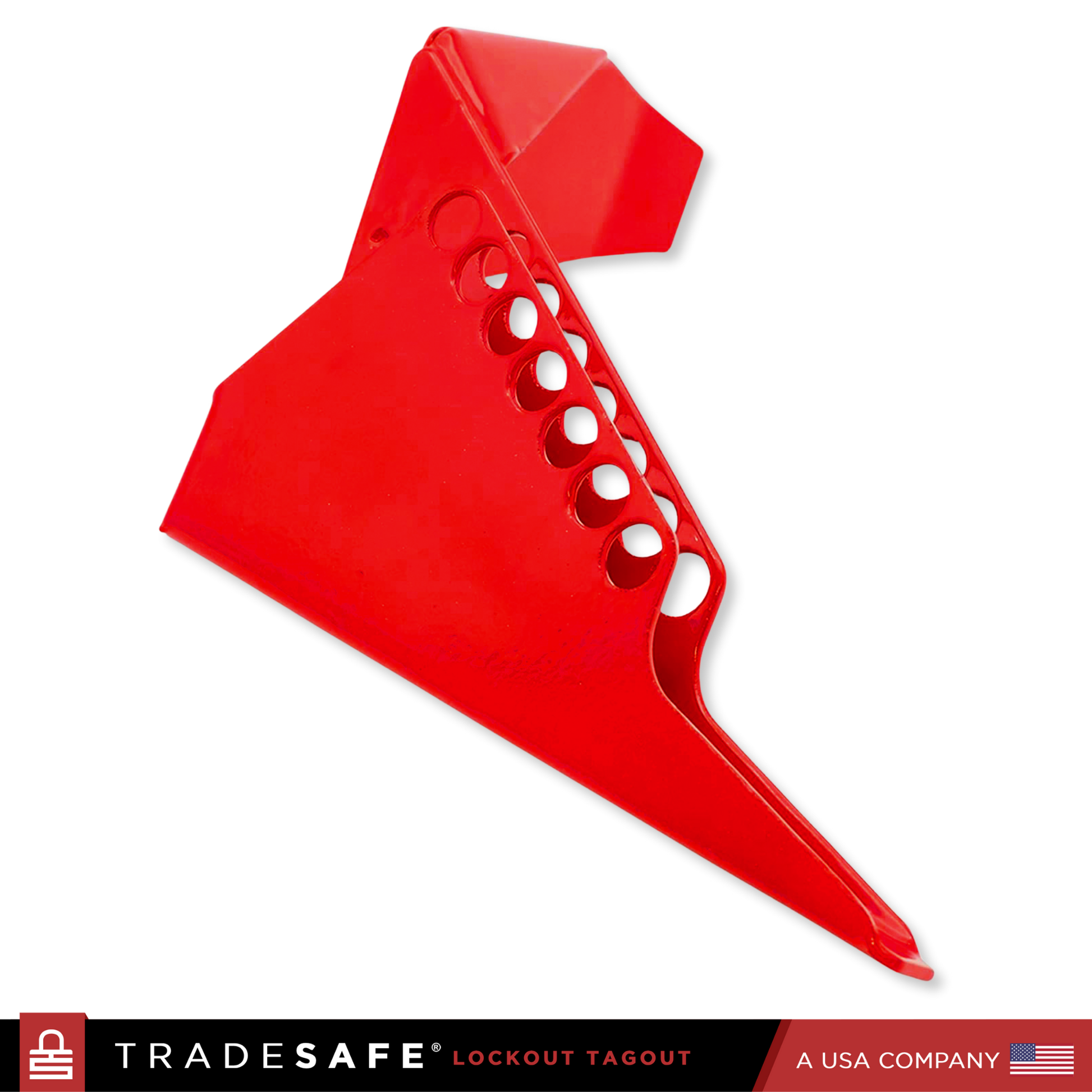

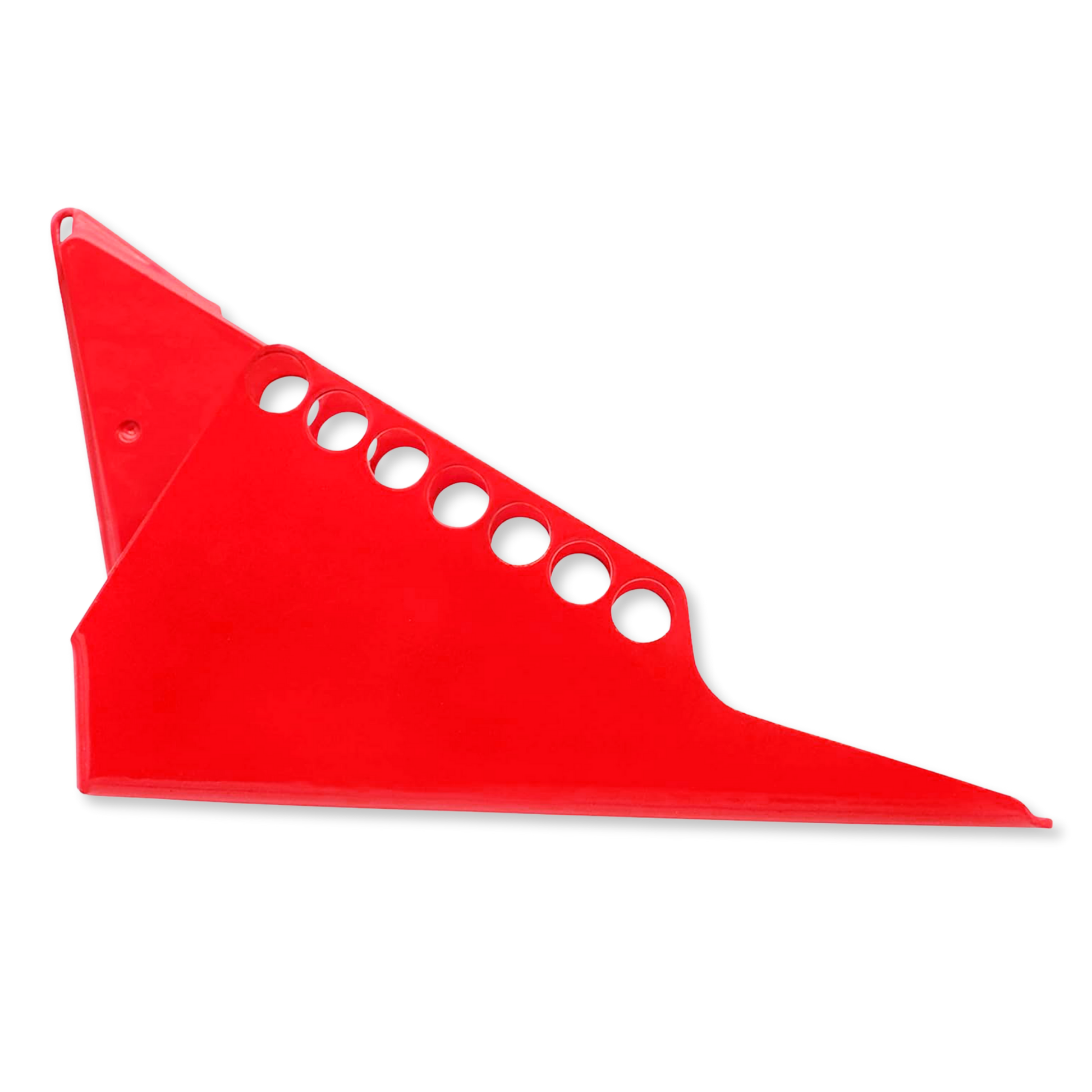

Standard Ball Valve Lockout – 1-1/4” to 2-1/2” Pipe Diameter

TRADESAFE standard ball valve lockout provides maintenance teams, safety personnel, contractors, and authorized employees with a durable way to secure larger compatible quarter-turn ball valve handles during maintenance, repair, inspection, and other lockout activities. Designed for valves with pipe diameters from 1-1/4" to 2-1/2", this larger fixed-size model accommodates compatible handles up to 6" long and 7/16" thick.

Constructed from hardened steel with a protective red powder-coated finish, the lockout combines rigid industrial construction with a straightforward single-piece design. Seven integrated padlock positions support both individual and group lockout applications, while the one-piece body allows fast tool-free installation without removable components that can be misplaced during routine maintenance work.

Standard Ball Valve Lockout Devices for 1-1/4" to 2-1/2" Pipes

These standard ball valve lockout devices are designed for larger compatible quarter-turn valves where a fixed-size steel enclosure is preferred over an adjustable lockout. The device slides over the valve handle in the OFF position and provides a dedicated locking point for appropriately sized gas, water, and other regulating valves.

Part Number: TSLSBV. Similar industry part number: 65669

Product details include:

• 1 red standard ball valve lockout
• Pipe diameter compatibility:
  • 1-1/4" to 2-1/2"

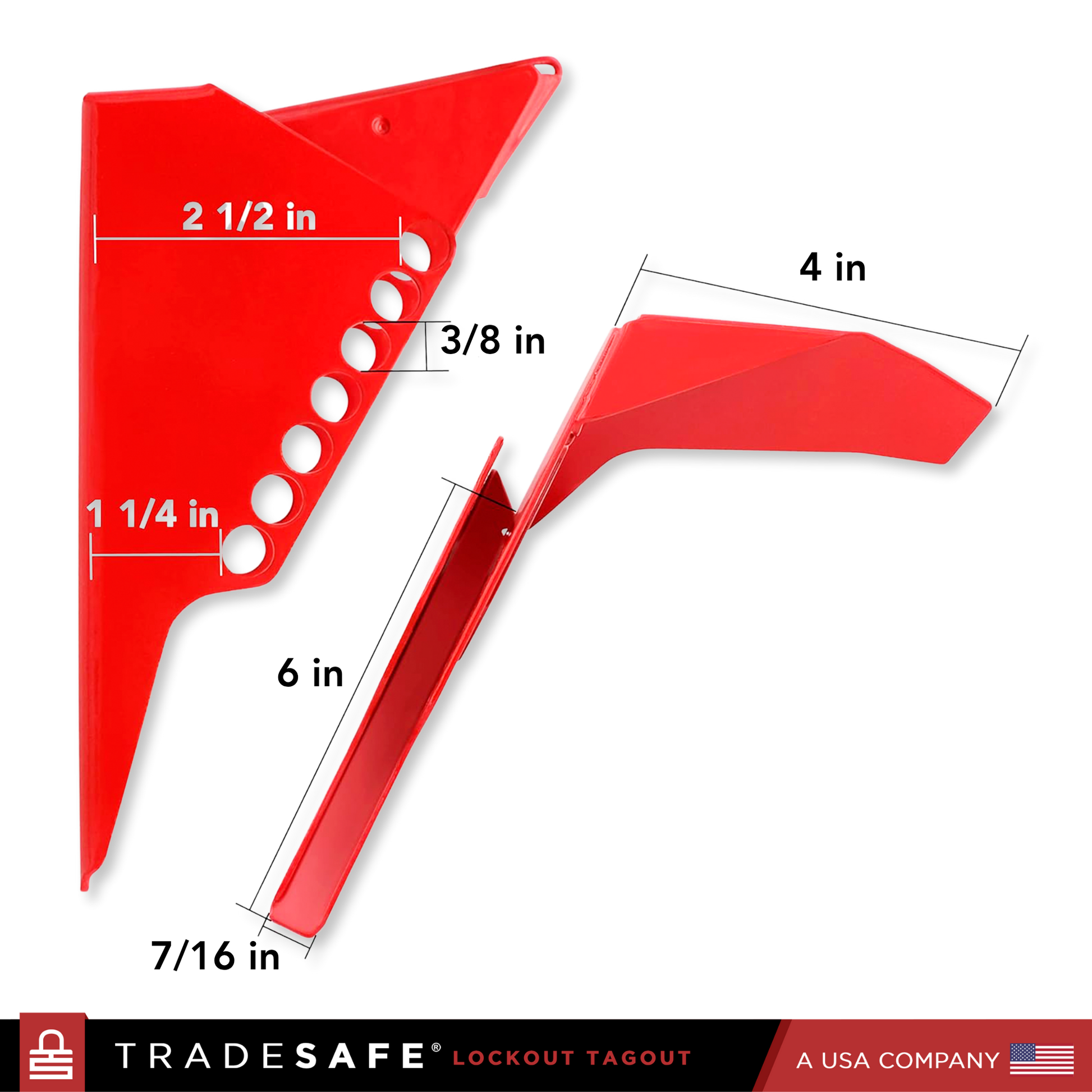

• Compatible valve handle dimensions:
  • Up to 6" long
  • Up to 7/16" thick
• Suitable for appropriately sized:
  • Quarter-turn ball valves
  • Gas valves
  • Water valves
  • Other compatible regulating valves
• Hardened steel construction
• Durable powder-coated finish
• Single-piece design
  • No removable components
  • Supports straightforward tool-free installation
• Designed to secure compatible valve handles in the OFF position
• Up to 7 integrated LOTO lock points
  • Compatible with padlock shackles up to 3/8"
• High-visibility red finish
• LOTO padlocks sold separately

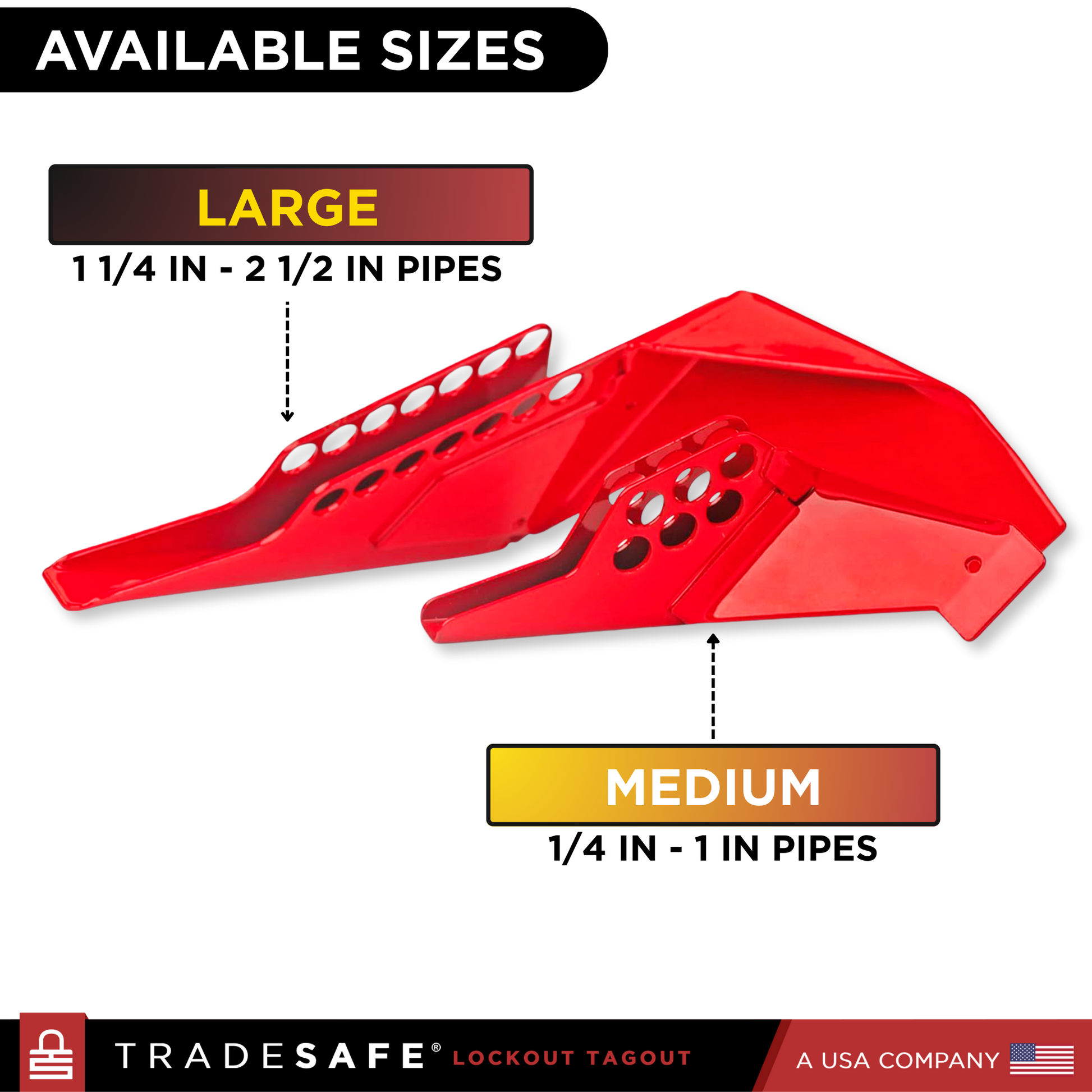

The larger 1-1/4" to 2-1/2" size range makes this model a better fit for facilities working with bigger quarter-turn valves than the smaller standard version. Its 6" handle capacity and seven lock positions also make it well suited for maintenance applications involving larger equipment and more authorized employees.

Ball Valve Handle Lockout with Seven Padlock Positions

This ball valve handle lockout uses a rigid hardened steel body to restrict movement of compatible valve handles while one or more personal LOTO padlocks remain attached. The powder-coated exterior helps protect the steel surface during regular workplace use, while the single-piece construction keeps setup simple and eliminates the need to manage separate inserts, sleeves, or adjustment components.

Construction and lockout features include:

• Hardened steel body
  • Provides a rigid enclosure around compatible valve handles
  • Suitable for repeated industrial handling
• Powder-coated finish
  • Helps protect the steel surface from corrosion and workplace wear
• Single-piece construction
  • Reduces the risk of losing removable parts
  • Supports quick installation during routine servicing

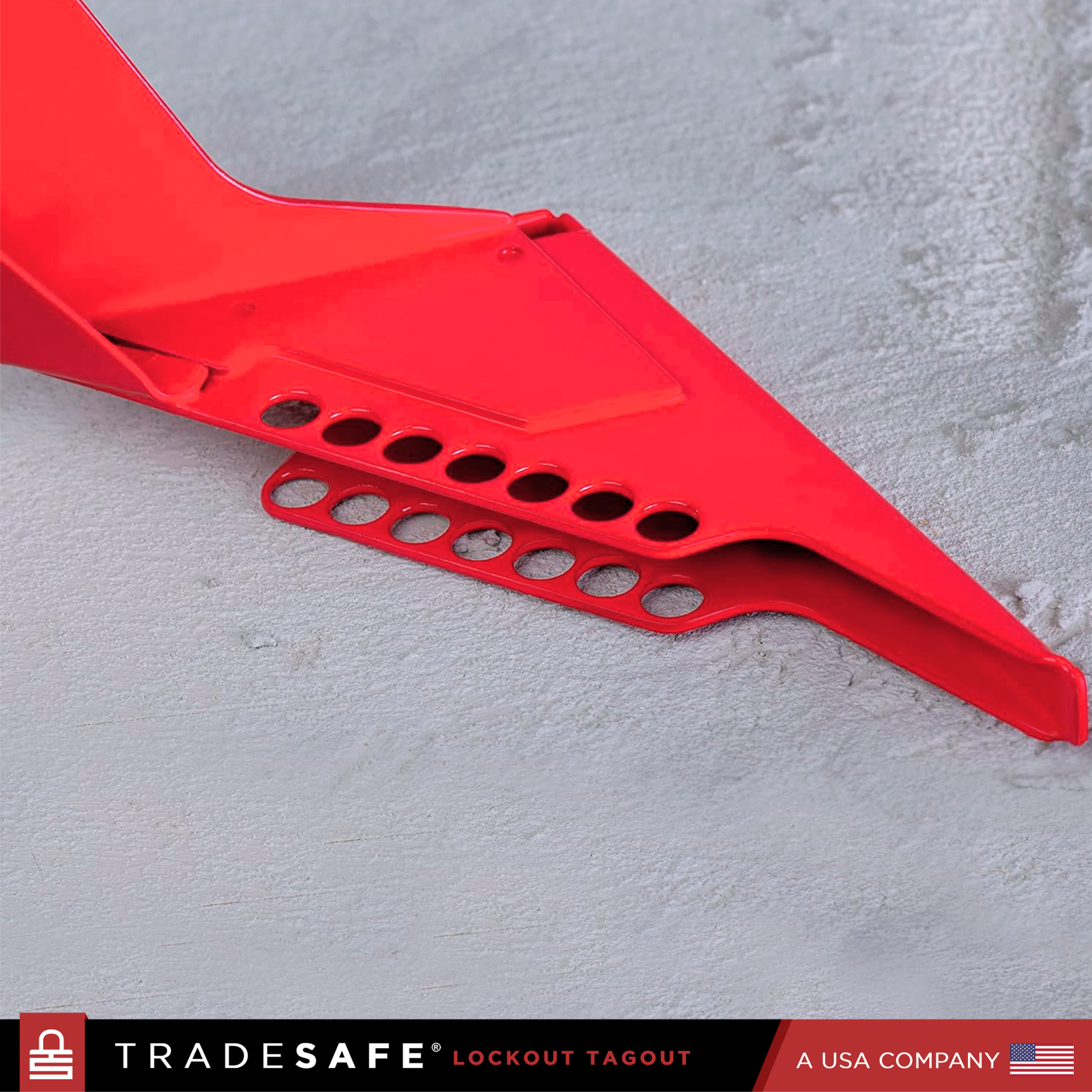

• Seven padlock holes
  • Allow individual lockout applications
  • Support up to 7 authorized employees during group LOTO
• Padlock shackle compatibility:
  • Up to 3/8"
• High-visibility red exterior
  • Helps personnel quickly identify the isolated valve
• Fixed-size geometry
  • Designed specifically for larger compatible valve handles
  • Avoids unnecessary adjustment steps when the valve falls within the stated size range

The seven-lock configuration distinguishes this model from the smaller standard version and makes it especially practical for larger maintenance teams. Manufacturing plants, utilities, processing facilities, mechanical rooms, and industrial maintenance departments can use the same isolation point while several authorized employees maintain individual control throughout the servicing task.

Lockout Ball Valve Handles During Maintenance and Servicing

To lockout ball valve handles with this device, authorized personnel first place the compatible valve in the OFF position, slide the steel lockout over the handle, and attach the required personal LOTO padlock or padlocks through the available lock points. The fixed single-piece design keeps the process straightforward and is particularly useful in facilities where the same larger valve sizes are serviced repeatedly and do not require the flexibility of an adjustable or universal device.

This model is intended for larger compatible quarter-turn valves within the 1-1/4" to 2-1/2" pipe diameter range and provides more handle clearance and one additional lock position compared with the smaller standard version. Its hardened steel construction, 6" handle capacity, and seven padlock points make it a practical choice for equipment rooms, production lines, utility systems, process areas, and other locations where several employees may be involved in the same maintenance or repair activity.

Choose the TRADESAFE standard ball valve lockout when you need a durable fixed-size solution for larger 1-1/4" to 2-1/2" quarter-turn valves. Use the hardened steel body and seven LOTO lock positions to support both individual and multi-worker servicing tasks. Add this larger valve lockout to your safety equipment for reliable, straightforward isolation of compatible ball valve handles.

OSHA-Compliant Standard Ball Valve Lockout

Compliance with the OSHA Standard for The Control of Hazardous Energy (Lockout/Tagout) (29 CFR 1910.147) is vital to the safety of every employee on site. That’s why we make sure that all of our products help workplaces remain OSHA-compliant.

TRADESAFE products are made with the requirements for lockout tagout devices in mind. These are the requirements pursuant to OSHA Standard 1910.147:

• Durable: Devices must be able to withstand exposure to the environment in which they will be used for as long as necessary.
• Standardized: Devices used in a facility must be standardized according to color, shape, or size.
• Substantial: Devices must be difficult to remove without the use of excessive force or techniques that are not typically used to remove the devices. They should also be able to prevent accidental removal.
• Identifiable: Devices must be able to identify the employee who applied them.
• Exclusive for Safety: Devices must not be used for any purpose other than controlling energy.
