Lockout Tagout Station – Large

TRADESAFE large lockout tagout station keeps frequently used lockout equipment organized in one wall-mounted location for maintenance teams, safety personnel, and authorized employees. The complete setup includes eight red keyed-different safety padlocks, three lockout hasps, 30 “DANGER – DO NOT OPERATE” tags, and 30 nylon zip ties for individual and group lockout applications.

The bright yellow station is built from impact-resistant polycarbonate and measures 16-1/4" x 12-3/8" x 2-5/8". Dedicated hooks and compartments keep the included devices visible and separated, while the transparent lockable cover helps protect stored equipment from dust, dirt, routine handling, and unauthorized access.

LOTO Lockout Station with 8 Padlocks and 3 Hasps

This LOTO lockout station combines commonly used locking and identification equipment in one organized wall-mounted setup. The supplied padlocks provide individual key control, while the three group lockout hasps allow several authorized employees to attach personal locks to compatible isolation points when required.

Part number: TSTN2. Similar industry part numbers: 153681, 1483BP410

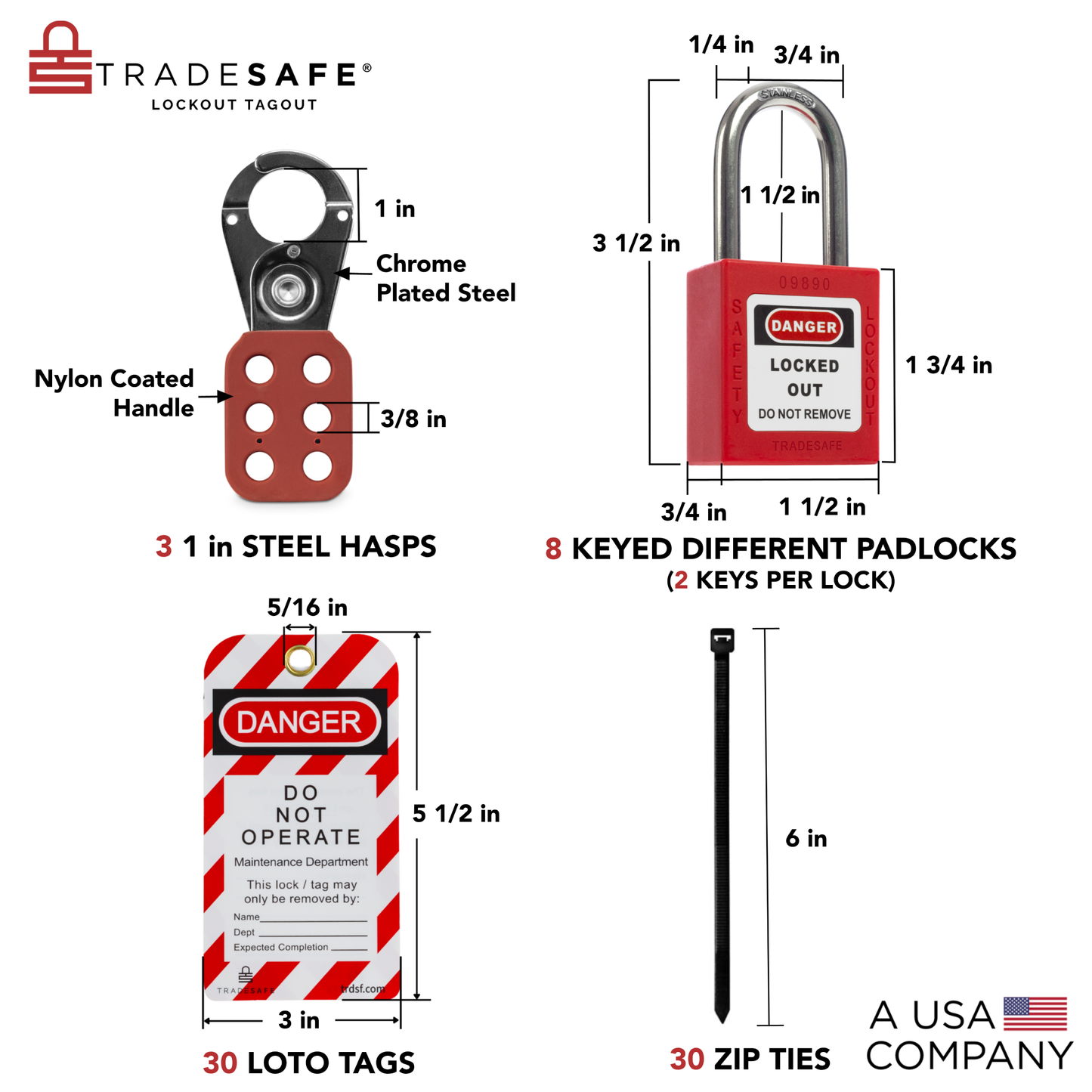

Product specifications and included components:

• 1 large yellow polycarbonate lockout station
  • Dimensions: 16-1/4" x 12-3/8" x 2-5/8"
  • Transparent lockable cover
  • Dedicated hooks and storage compartments
• 8 red keyed-different safety padlocks
  • 2 keys per padlock
  • Lock body: 1-3/4" x 1-1/2" x 3/4"
  • Shackle length: 1-1/2"
  • Shackle diameter: 1/4"
  • Key-retaining brass-core cylinder
• 3 lockout hasps
  • 1" jaw diameter
  • Chrome-plated steel jaws
  • Nonconductive nylon handles
  • Accommodate up to 6 padlocks per hasp
• 30 PVC vinyl lockout tags
  • Dimensions: 5-1/2" x 3"
  • Thickness: 32 mil
  • Tie-hole diameter: 5/16"
• 30 nylon zip ties
  • Length: 6"

The combination of padlocks, hasps, tags, and ties gives facilities multiple types of lockout equipment from one central station rather than requiring each component to be stored separately. Its smaller footprint compared with the XL station also makes this model practical where a complete assortment is needed without using as much wall space.

Lockout Tagout Wall Mount Station with Polycarbonate Board

This lockout tagout wall mount station uses a durable polycarbonate board designed for repeated use in industrial and maintenance environments. The bright yellow housing improves visibility, while the clear cover allows employees to check the available equipment without opening the station.

Storage and construction features include:

• Impact-resistant polycarbonate board
• Chemical-resistant station material
• High-visibility yellow finish
• Transparent lockable protective cover
• Integrated hooks for safety padlocks
• Dedicated compartments for tags and zip ties
• Wall-mount configuration
• Organized layout for fast visual inventory checks
• Covered storage to help reduce exposure to dust and workplace debris

The fixed wall-mounted layout creates a consistent location for returning and retrieving lockout equipment, while the individual hooks and compartments make missing items easier to identify. The lockable cover also adds controlled access without hiding the station contents from view.

LOTO Station for Centralized Lockout Equipment Access

This LOTO station is well suited to production areas, maintenance departments, workshops, utility spaces, and other workplaces where employees regularly need access to lockout hardware. Positioning the station near commonly serviced machinery or in a central safety area can reduce the time spent locating individual padlocks, hasps, tags, and attachment ties before maintenance begins.

The eight keyed-different padlocks support individual lock control, while the three included hasps expand compatible isolation points for group applications involving several authorized employees. The 30 tags and matching zip ties provide a ready supply of identification materials, allowing the station to support both physical isolation and clear equipment status communication from one location.

Add the TRADESAFE large LOTO station to a central work area to keep essential lockout equipment organized and accessible. Mount it where employees can quickly retrieve and return the included padlocks, hasps, tags, and ties. Choose this wall-mounted setup when you need a complete lockout assortment with protected, visible storage in a more compact format than an XL station.

OSHA-Compliant Industrial LOTO Station

Compliance with the OSHA Standard for The Control of Hazardous Energy (Lockout/Tagout) (29 CFR 1910.147) is vital to the safety of every employee on site. That’s why we make sure that all of our products help workplaces remain OSHA-compliant.

TRADESAFE products are made with the requirements for lockout tagout devices in mind. These are the requirements pursuant to OSHA Standard 1910.147:

• Durable: Devices must be able to withstand exposure to the environment in which they will be used for as long as necessary.
• Standardized: Devices used in a facility must be standardized according to color, shape, or size.
• Substantial: Devices must be difficult to remove without the use of excessive force or techniques that are not typically used to remove the devices. They should also be able to prevent accidental removal.
• Identifiable: Devices must be able to identify the employee who applied them.
• Exclusive for Safety: Devices must not be used for any purpose other than controlling energy.

TRADESAFE: A Trusted USA-Based Partner in Lockout Tagout

• TRADESAFE is a USA-based company well-versed in OSHA regulations
• People-centered supplier of safety products
• High-quality products made of heavy-duty and durable materials
• Constant innovation and continuous adaptation to new standards

TRADESAFE is your partner in safety and we always keep the seriousness of that role in mind. That’s why all of our lockout tagout products are industrial-grade and meet regulatory standards. They are all ideal for use in the lockout of electrical and many other energy applications.

We don’t want to just be your supplier. We want to be your partner. For this reason, we approach things differently. Each and every day our team works to improve our products and the services we provide to the great people and businesses that put so much faith in us.

TRADESAFE is a USA-based company. This helps us stay up to date on the latest OSHA safety standards. We are inspired by the American worker and we are honored to help keep you safe from harm and hazards.
