Gate Valve Lockout – 1” to 2-1/2” Valve Handle Diameter, 3/4" Stem Diameter

TRADESAFE compact valve lock helps maintenance teams, safety managers, utility crews, and authorized employees secure compatible gate valve handwheels during service, repair, inspection, and shutdown procedures. This single-device model fits valve handles from 1" to 2-1/2" in diameter and accommodates valve stems up to 3/4" in diameter, making it a practical choice for smaller isolation points used in water, gas, propane, utility, and compatible fuel-system applications.

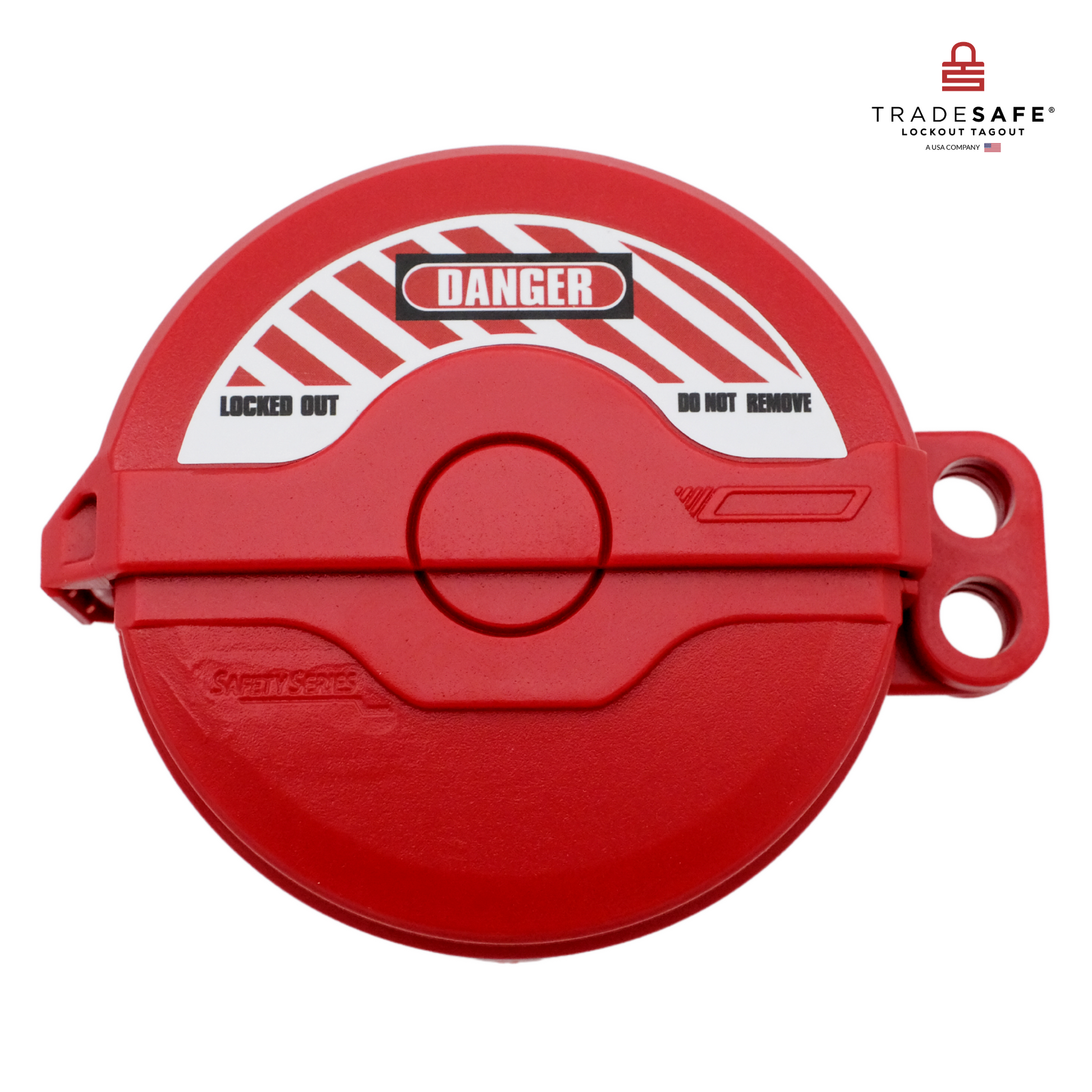

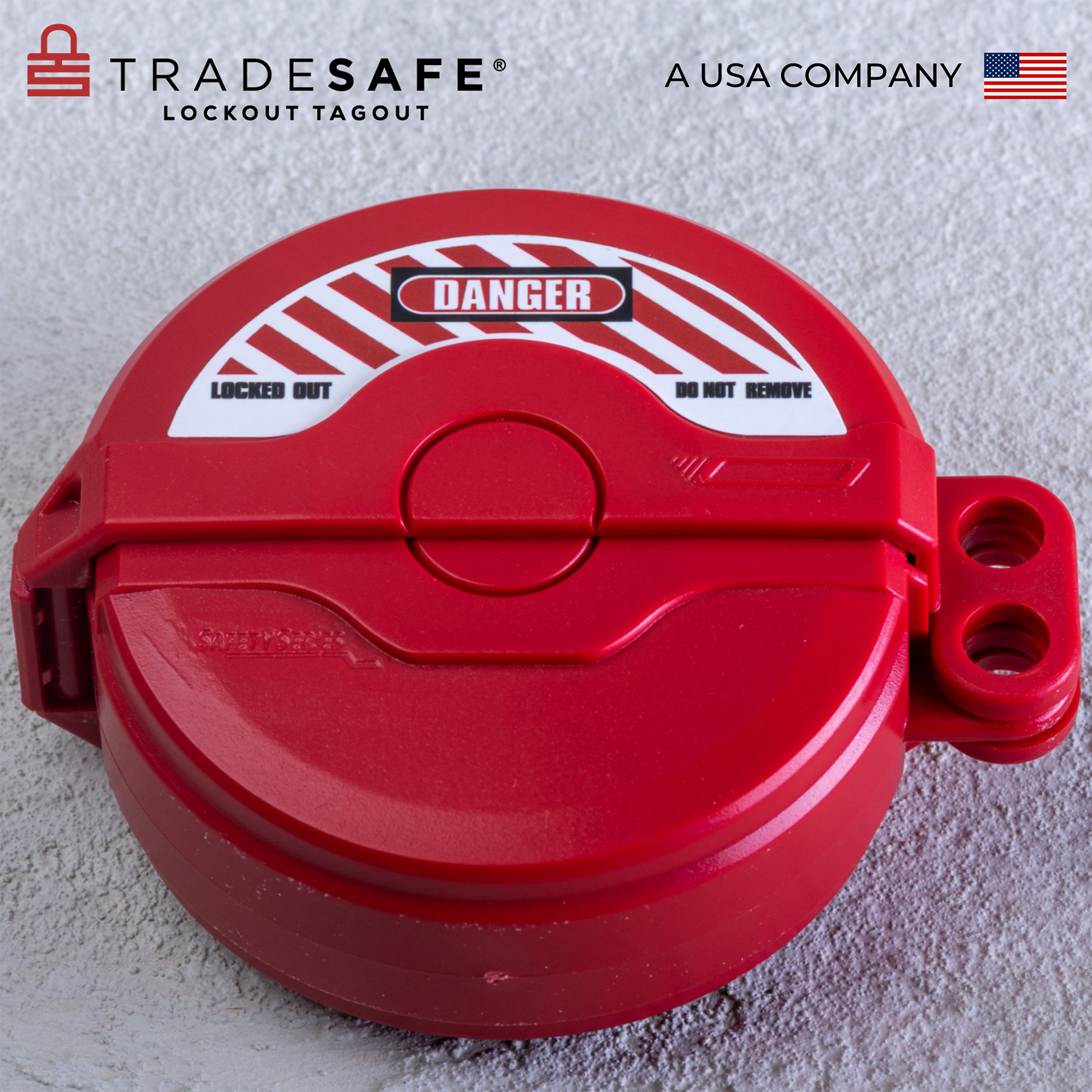

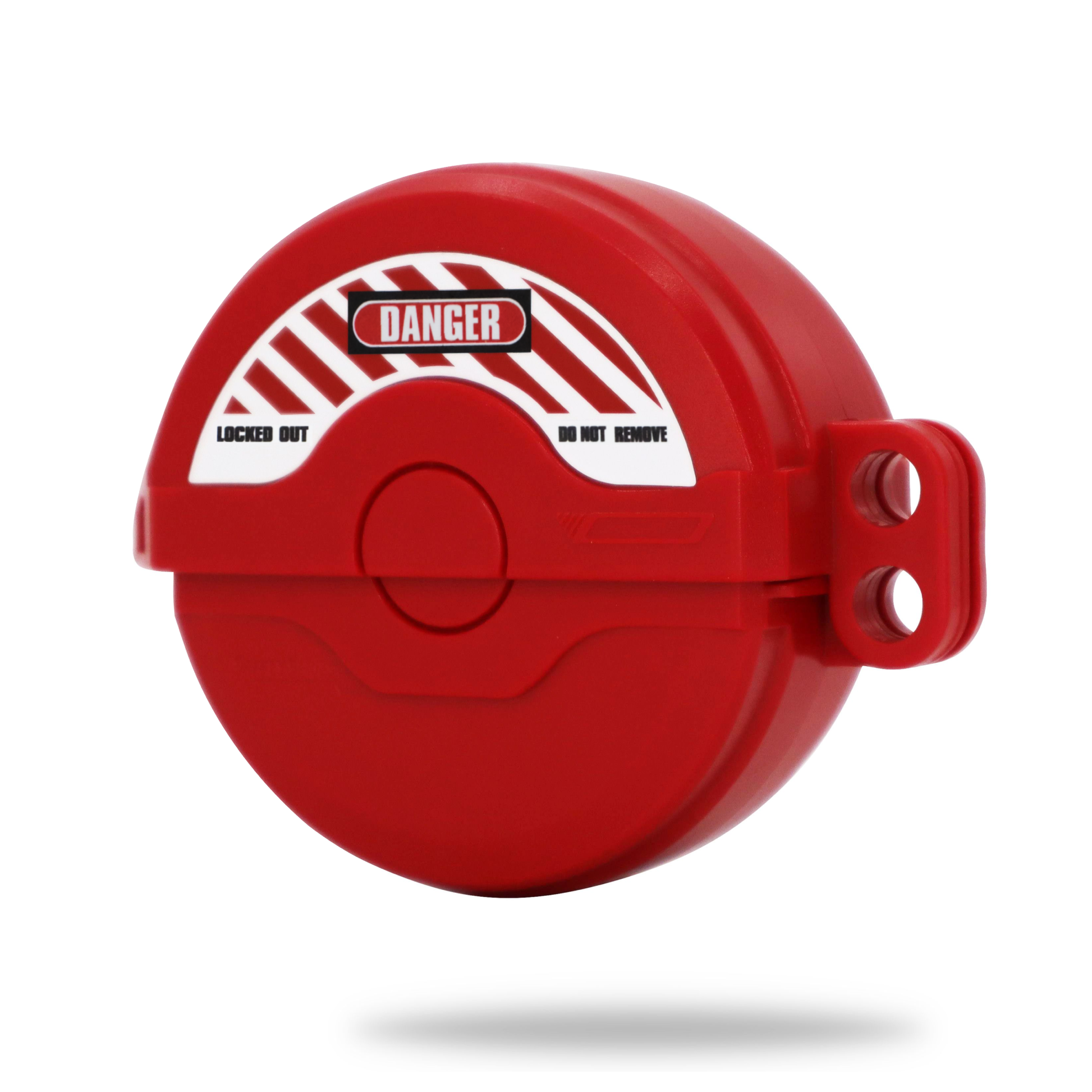

The high-visibility red clamshell body encloses the operating handle and includes two lock holes for personal or shared lockout procedures. Industrial-strength ABS construction provides impact, chemical, and temperature resistance, while the overlapping cover and removable center knockout support stable coverage and compatibility with qualifying OS&Y or rising-stem gate valves. Padlocks are not included.

Valve Lock for 1" to 2-1/2" Gate Valve Handles

This valve lock provides compact enclosed coverage for smaller gate valve handwheels used across industrial, commercial, utility, and maintenance environments. Once positioned around a compatible handle and secured with the required padlock or padlocks, the housing limits access to the operating point and helps prevent unintended valve movement while work is in progress.

Part number: TS5GTVR. Similar industry part numbers: 65560, 480

Product details include:

• 1 red gate valve lockout
• Compatible valve handle diameter: 1" to 2-1/2"
• Maximum valve stem diameter: 3/4"

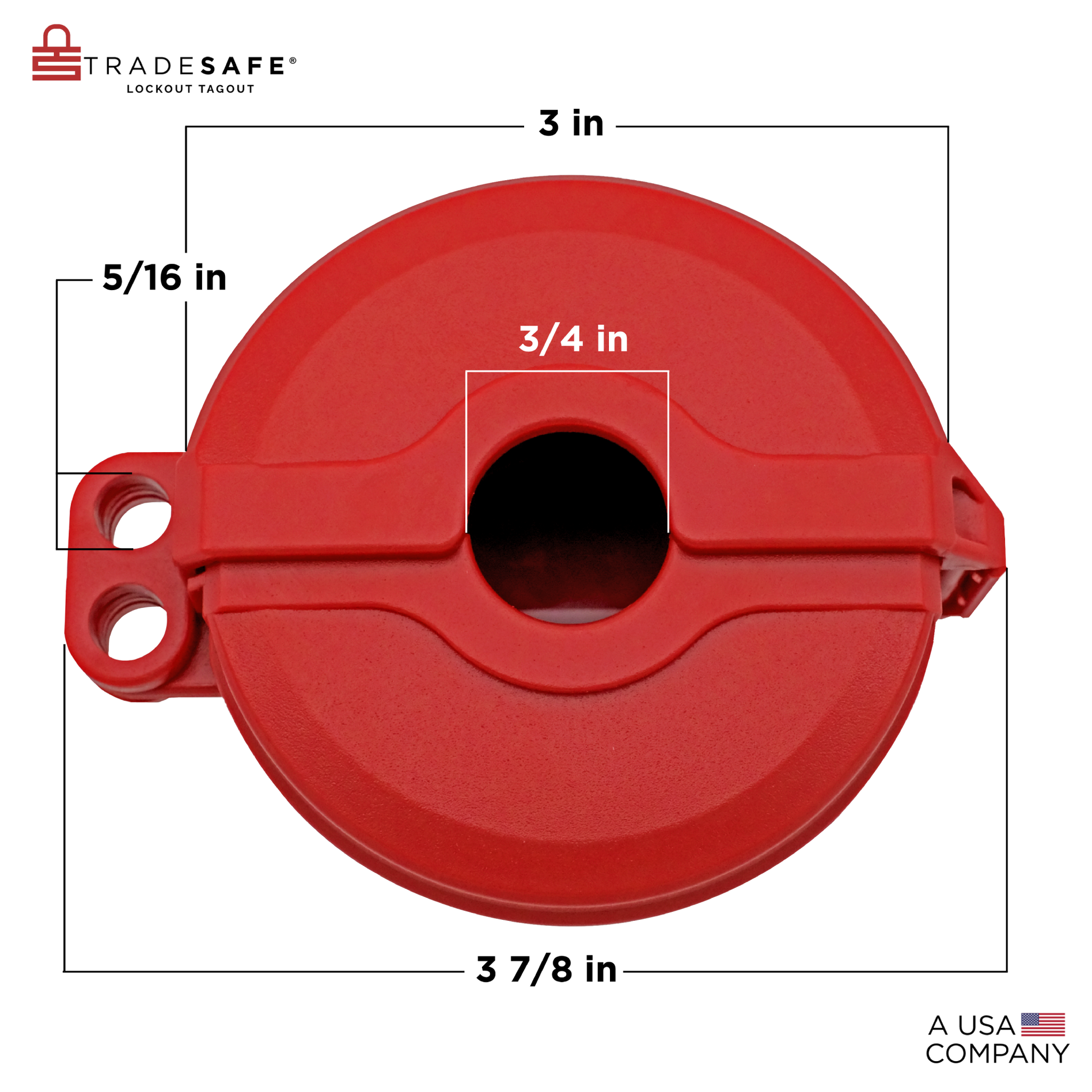

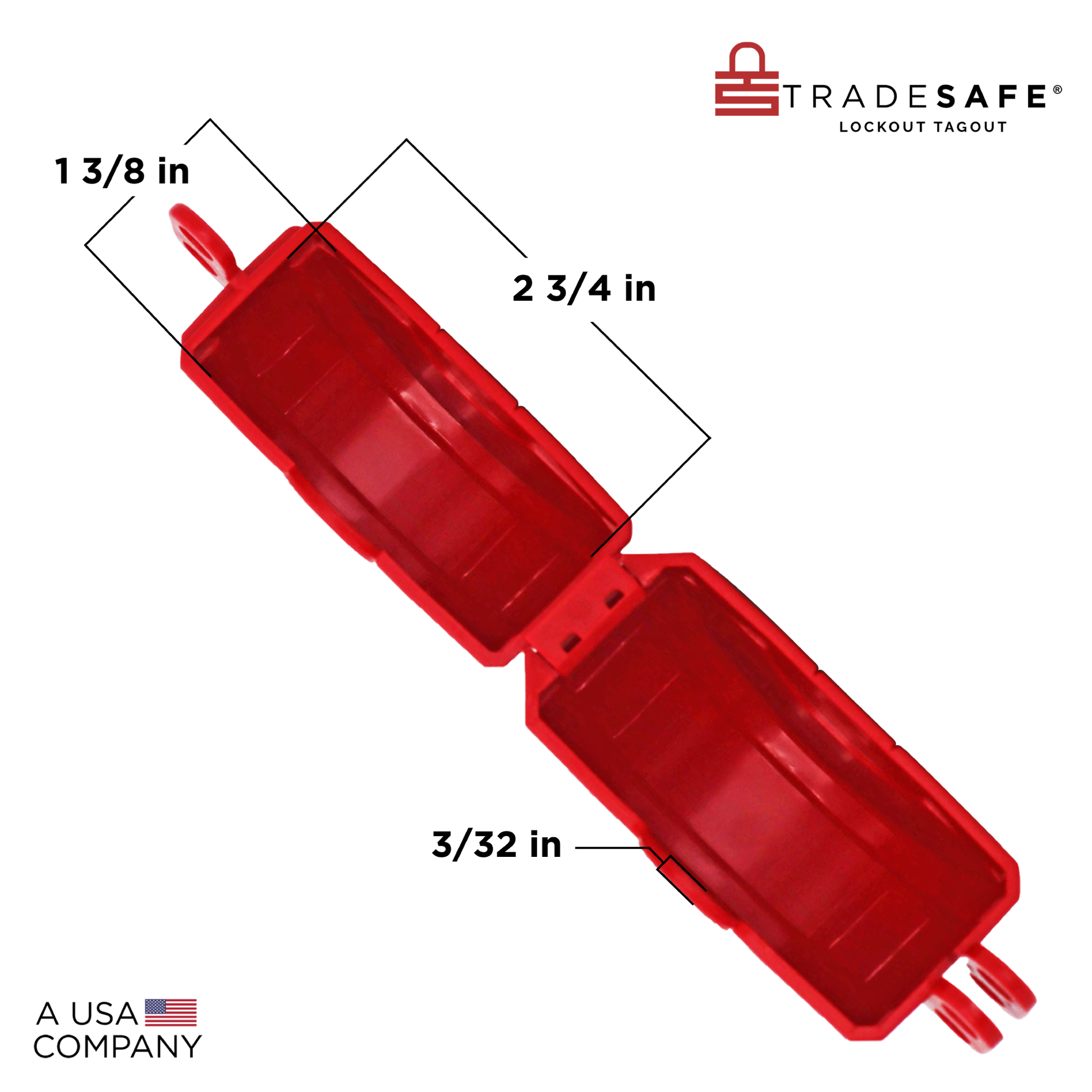

• Outer body diameter: 3"
• Inner diameter: 2-3/4"
• Total body length: 3-7/8"
• Inner height: 1-3/16"
• ABS plastic thickness: 3/32"

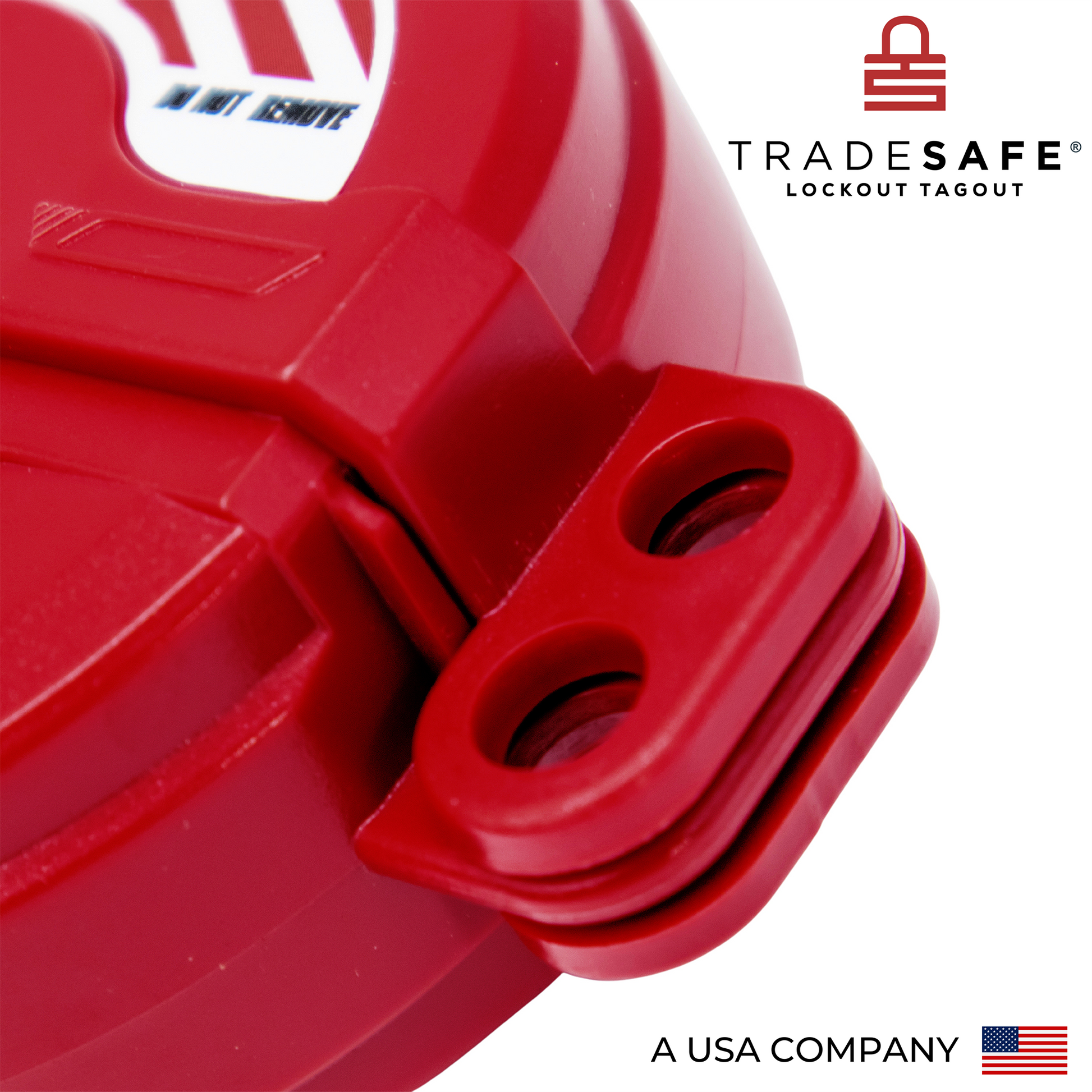

• Two integrated padlock positions
• Maximum compatible padlock shackle diameter: 5/16"
• Removable center knockout for qualifying OS&Y and rising-stem valves
• Designed specifically for compatible gate valve handles
• Not compatible with ball valve or butterfly valve handles
• Lockout padlocks sold separately

Measure the valve handwheel and stem before ordering to confirm compatibility. The single-device configuration is well suited for a dedicated isolation point, a compact maintenance kit, or facilities adding a small gate valve lockout to an existing LOTO equipment inventory.

Gate Valve Lockout with Durable ABS Construction

This gate valve lockout is molded from industrial-strength ABS selected for frequent use in demanding indoor and outdoor work environments. Its lightweight, nonconductive body resists impact and common chemical exposure while maintaining its shape across a broad operating temperature range.

Material and visibility features include:

• Impact-resistant ABS construction
• Chemical-resistant housing
• Nonconductive material
• Operating temperature range: -51°F to 300°F
• High-visibility red finish
• Printed “DANGER – Locked Out – Do Not Remove” warning label
• Reinforced compact housing
• Durable 3/32" body thickness
• Detachable hinged construction for easier storage

The compact ABS body is suitable for utilities, manufacturing facilities, processing operations, maintenance departments, and outdoor service areas where valve lockout equipment may encounter repeated handling or changing environmental conditions. Its bright finish and warning graphics also make the isolated valve easier for nearby personnel to recognize.

Gate Valve Lock with an Overlapping Clamshell Design

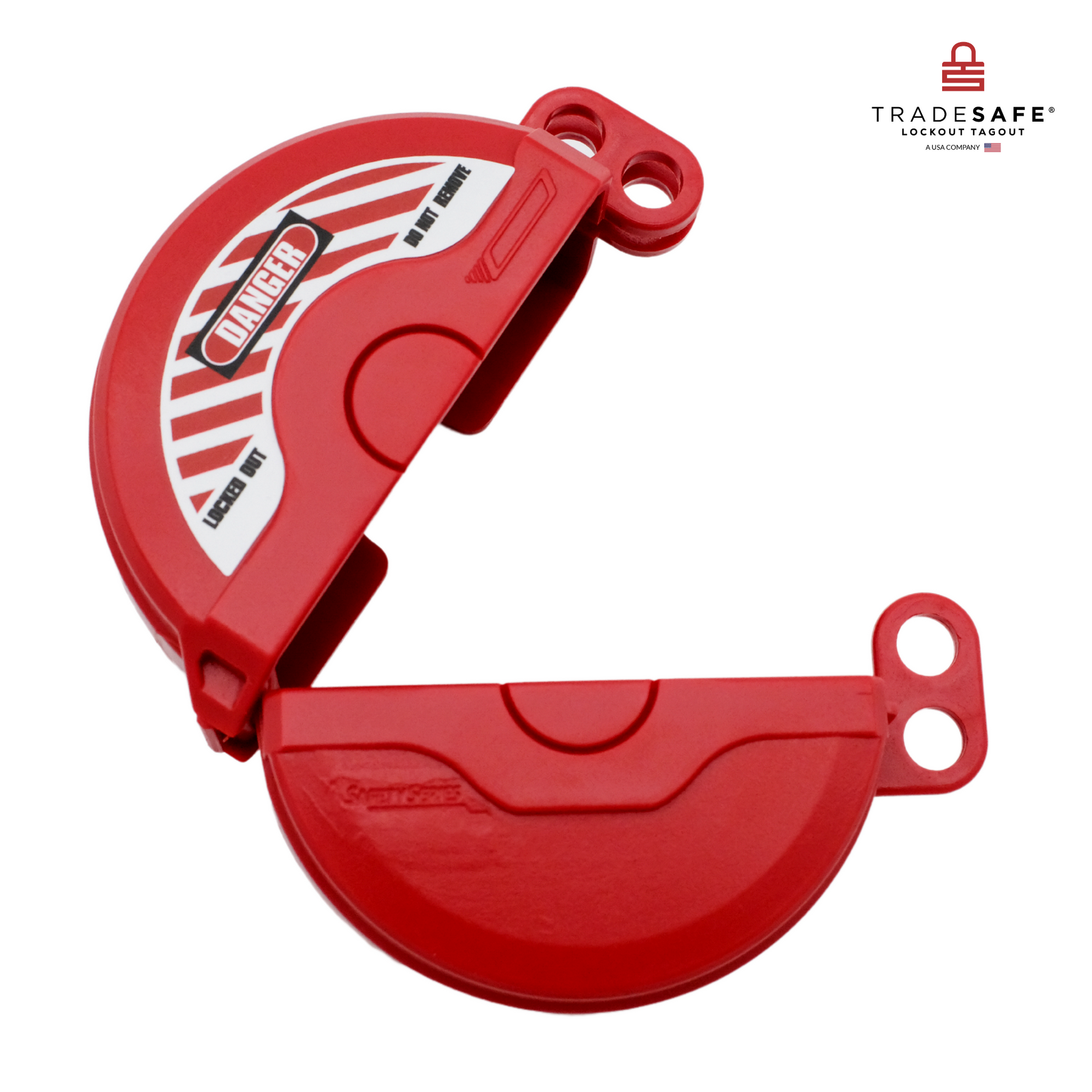

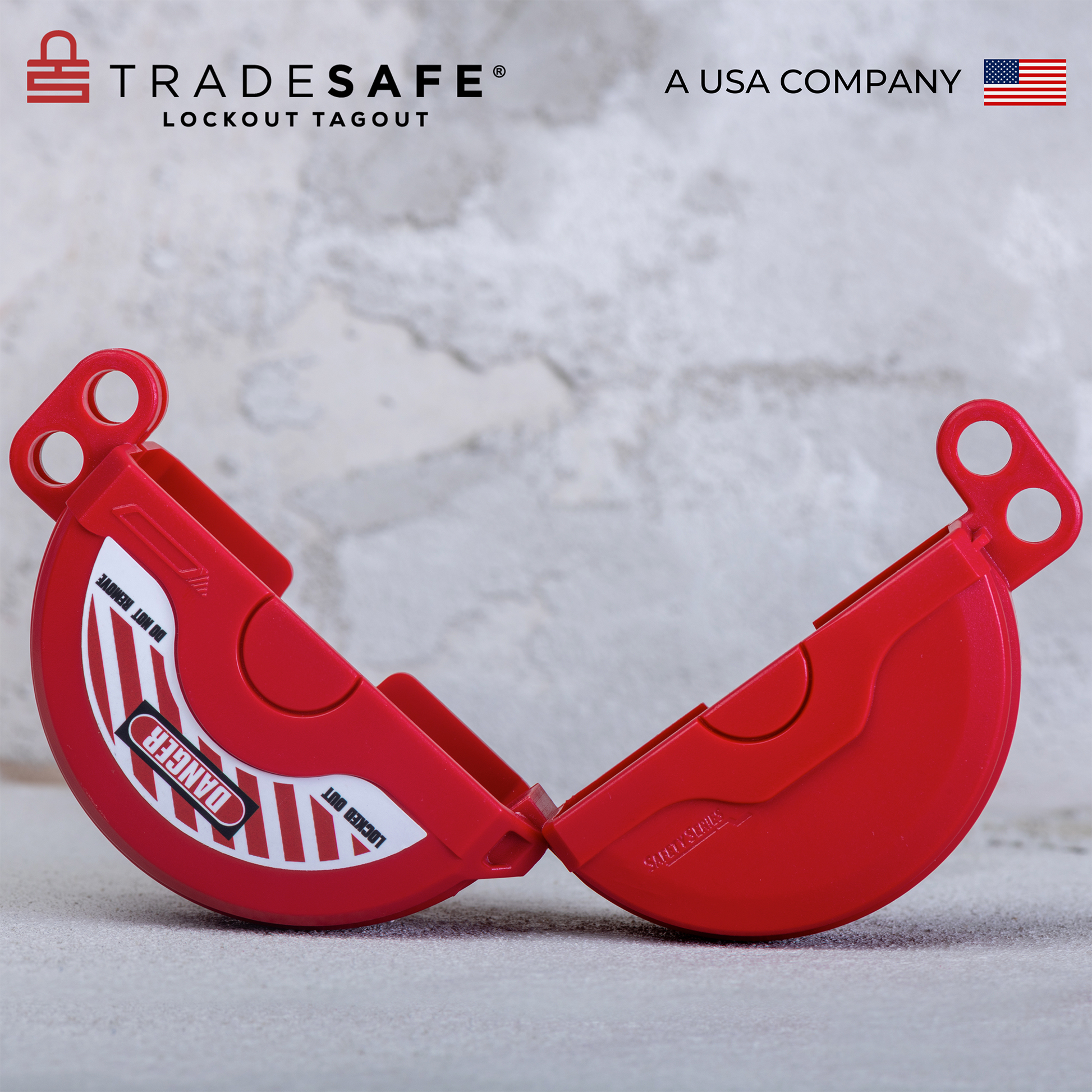

The gate valve lock opens at the hinge, closes around the compatible handwheel, and is secured through the integrated lock holes. Its overlapping cover sections maintain coverage around the valve handle, helping reduce shifting, loosening, and partial exposure after the device has been installed.

Installation and security features include:

• Hinged clamshell design for straightforward installation
• Overlapping cover sections for stable handwheel coverage
• Removable center knockout for qualifying rising-stem configurations
• Two integrated padlock positions
• Accepts padlock shackles up to 5/16" in diameter
• Supports individual and selected two-lock applications
• Enclosed design that restricts access to the operating handle
• Detachable hinge for compact stacking and storage
• Lockout padlocks sold separately

The two-lock configuration gives facilities flexibility when one or two authorized employees need to maintain personal control of the same isolation point. Removing the center section also allows the device to fit qualifying OS&Y and rising-stem gate valves when the handwheel and stem remain within the stated dimensional limits.

Lockout Gate Valve Handles in Compact Applications

Use this device to lockout gate valve handles found on compatible outdoor water faucets, gas lines, propane systems, utility equipment, processing installations, and selected forklift fuel systems. Its compact body is easy to carry in a toolbox or LOTO kit while providing purpose-built coverage for smaller gate valve handwheels.

Correct sizing and valve identification remain essential. Confirm that the handwheel measures between 1" and 2-1/2", that the stem does not exceed 3/4", and that the isolation point uses a compatible gate-valve design before installation; select another gate valve size or a dedicated ball or butterfly valve lockout when these requirements are not met.

Add a compact gate valve isolation device to your facility’s existing LOTO equipment. Pair it with the personal padlocks required by your hazardous energy control procedures. Choose the TRADESAFE small valve lock for durable coverage, clear warning communication, and dependable daily use.

OSHA-Compliant Gate Valve Lockout Device

Compliance with the OSHA Standard for The Control of Hazardous Energy (Lockout/Tagout) (29 CFR 1910.147) is vital to the safety of every employee on site. That’s why we make sure that all of our products help workplaces remain OSHA-compliant.

TRADESAFE products are made with the requirements for lockout tagout devices in mind. These are the requirements pursuant to OSHA Standard 1910.147:

• Durable: Devices must be able to withstand exposure to the environment in which they will be used for as long as necessary.
• Standardized: Devices used in a facility must be standardized according to color, shape, or size.
• Substantial: Devices must be difficult to remove without the use of excessive force or techniques that are not typically used to remove the devices. They should also be able to prevent accidental removal.
• Identifiable: Devices must be able to identify the employee who applied them.
• Exclusive for Safety: Devices must not be used for any purpose other than controlling energy.
