Gate Valve Lockout – 10" to 13" Valve Handle Diameter, 4-1/8" Stem Diameter

TRADESAFE gate valve lockout is designed for maintenance teams, safety managers, utility crews, and authorized employees who need to isolate large gate valve handwheels during service, repair, inspection, and equipment shutdowns. This model fits compatible valve handles from 10" to 13" in diameter and accommodates valve stems up to 4-1/8" in diameter, making it suitable for substantial shutoff points used in industrial water, gas, propane, processing, and utility systems.

The high-visibility red clamshell housing surrounds the operating handle and can be secured with up to four personal LOTO padlocks for individual or group lockout applications. Industrial-strength ABS construction provides impact, chemical, and temperature resistance, while the overlapping cover, detachable hinge, and removable center knockout support stable installation, compact storage, and use with qualifying OS&Y or rising-stem gate valves. Padlocks are not included.

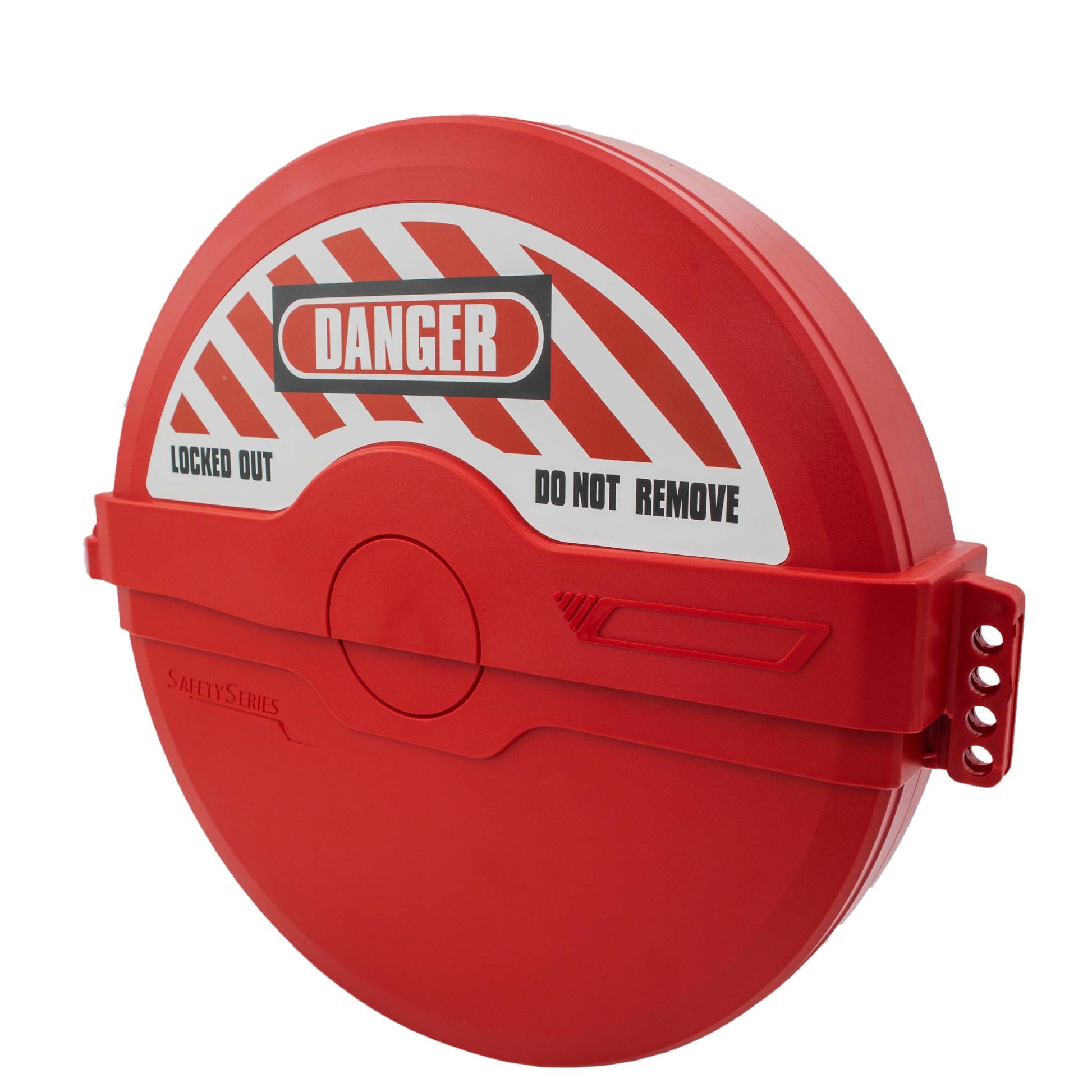

Gate Valve Lockout for 10" to 13" Valve Handles

This gate valve lockout provides enclosed coverage for large handwheels that exceed the capacity of smaller valve lockout models. Once the device is closed around a compatible handle and secured with the required padlock or padlocks, it restricts access to the operating point and helps prevent unauthorized valve movement throughout the maintenance task.

Part number: TS2GTVR. Similar industry part numbers: 65564, 484, KDD474

Product details include:

• 1 red gate valve lockout
• Compatible valve handle diameter: 10" to 13"
• Maximum valve stem diameter: 4-1/8"

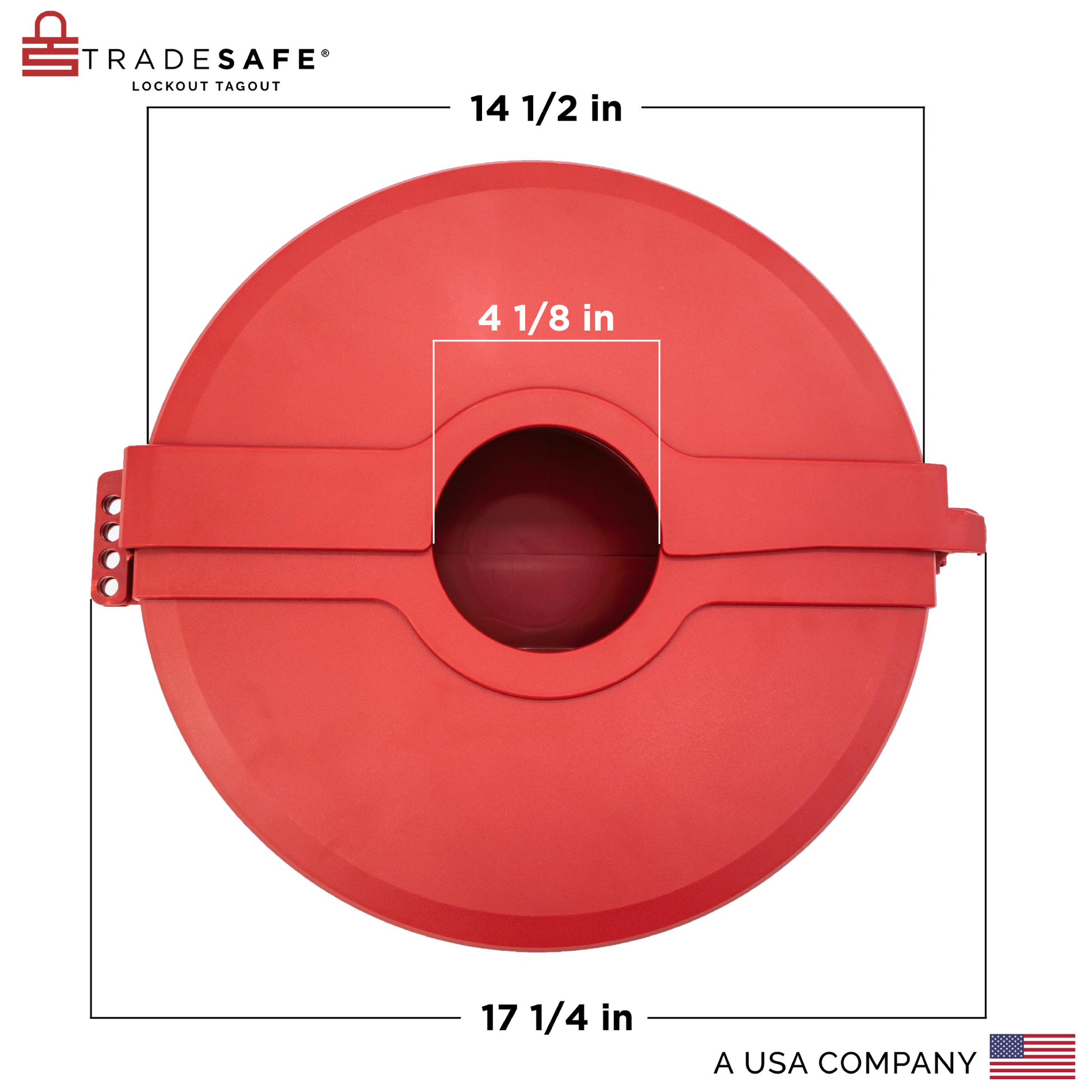

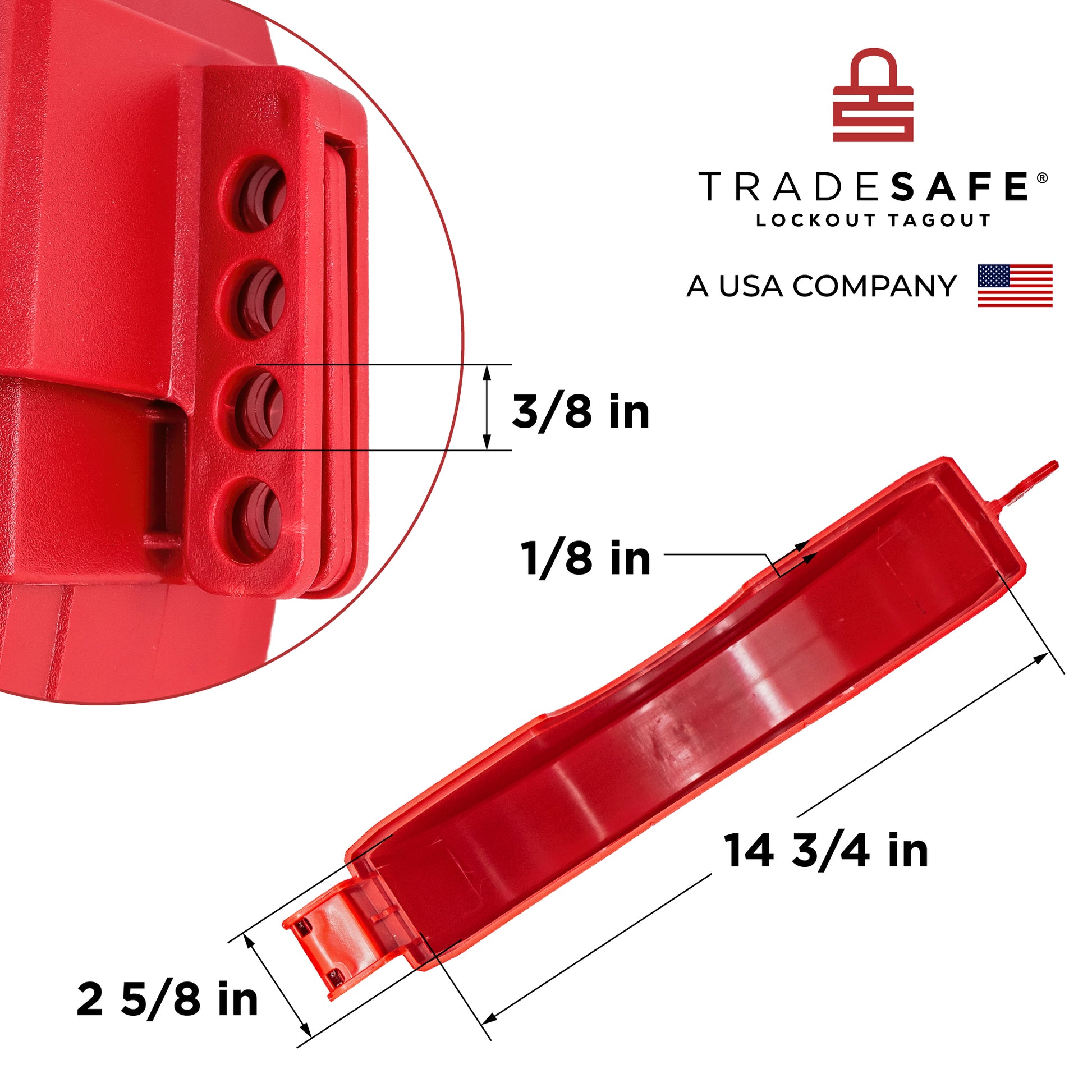

• Approximate body diameter: 14-1/2"
• Total body length: 17-1/4"
• Inner height: 2-5/8"
• ABS plastic thickness: 1/8"
• Four integrated padlock positions
• Maximum compatible padlock shackle diameter: 3/8"
• Removable center knockout for qualifying OS&Y and rising-stem valves
• Designed specifically for compatible gate valve handles
• Not intended for ball valve or butterfly valve handles
• Lockout padlocks sold separately

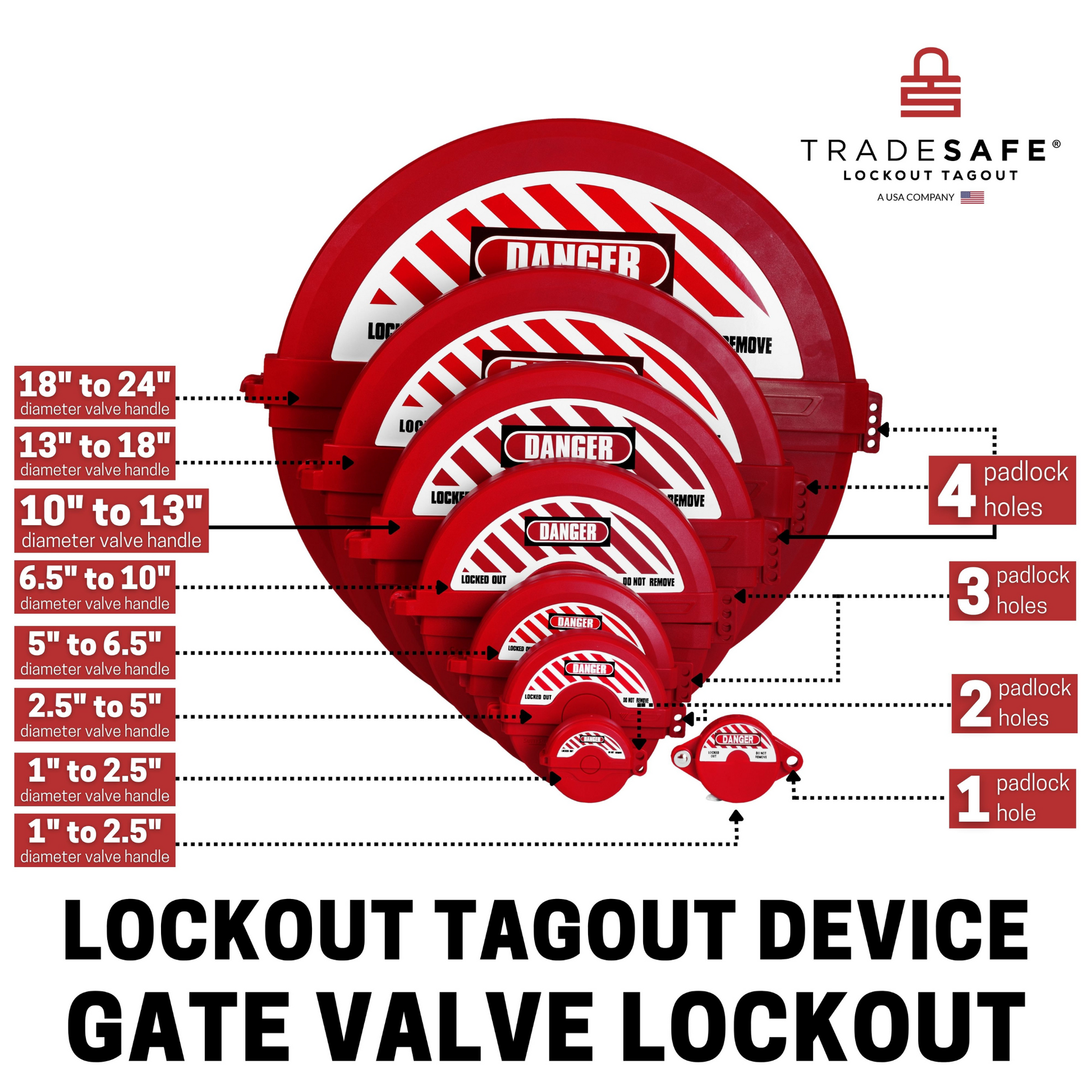

Measure the valve handwheel and stem before ordering to confirm compatibility. This model is intended for facilities with oversized gate valves that require greater internal coverage than compact and medium-sized lockout devices can provide.

Gate Valve Lock with Industrial-Strength ABS Construction

The gate valve lock is precision-molded from industrial-strength ABS selected for frequent use in demanding indoor and outdoor environments. Its nonconductive body resists impact and common chemical exposure while maintaining its shape across a broad operating temperature range.

Material and visibility features include:

• Impact-resistant ABS construction
• Chemical-resistant housing
• Nonconductive material
• Operating temperature range: -51°F to 300°F
• High-visibility red finish

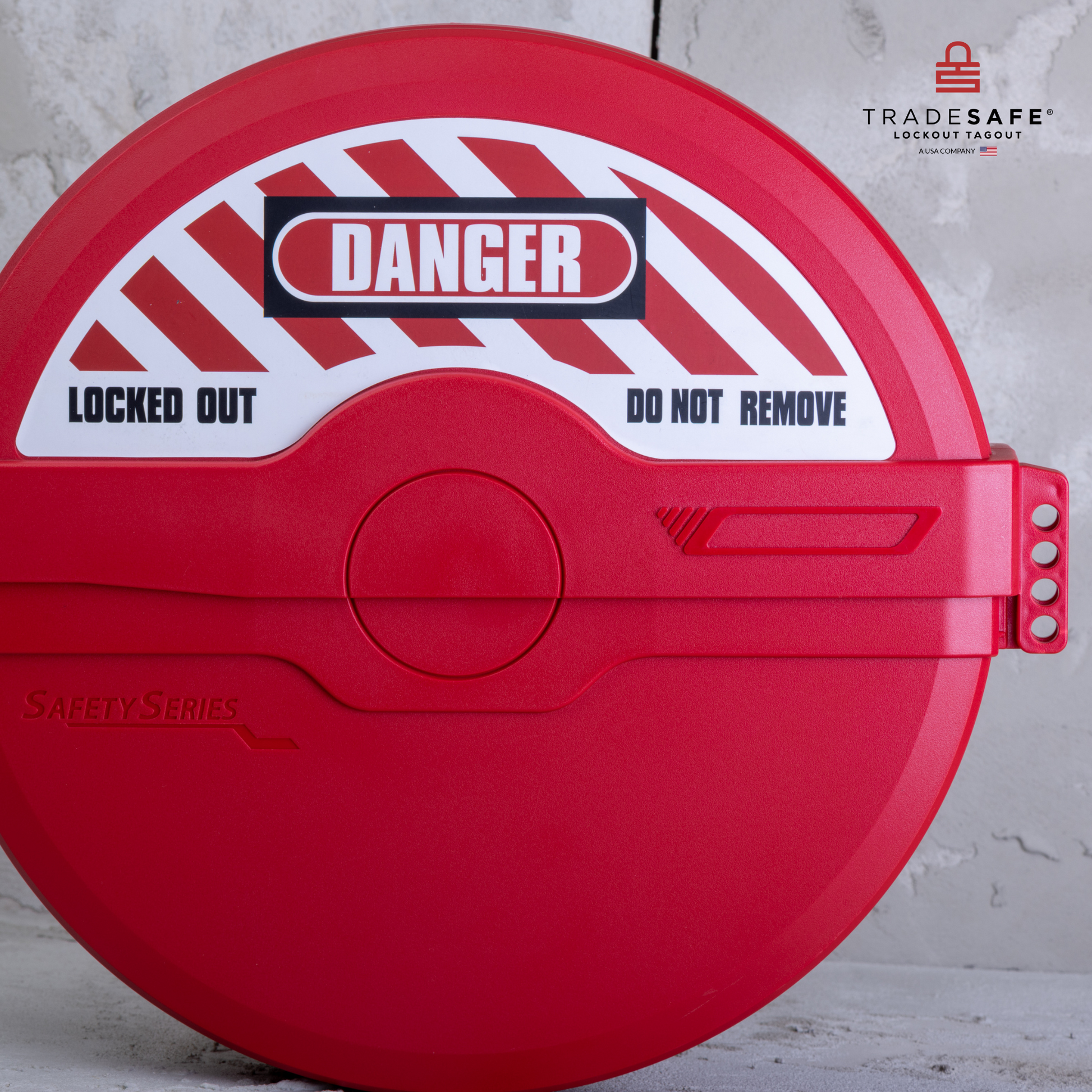

• Printed “DANGER – Locked Out – Do Not Remove” warning label
• Reinforced housing for recurring industrial use

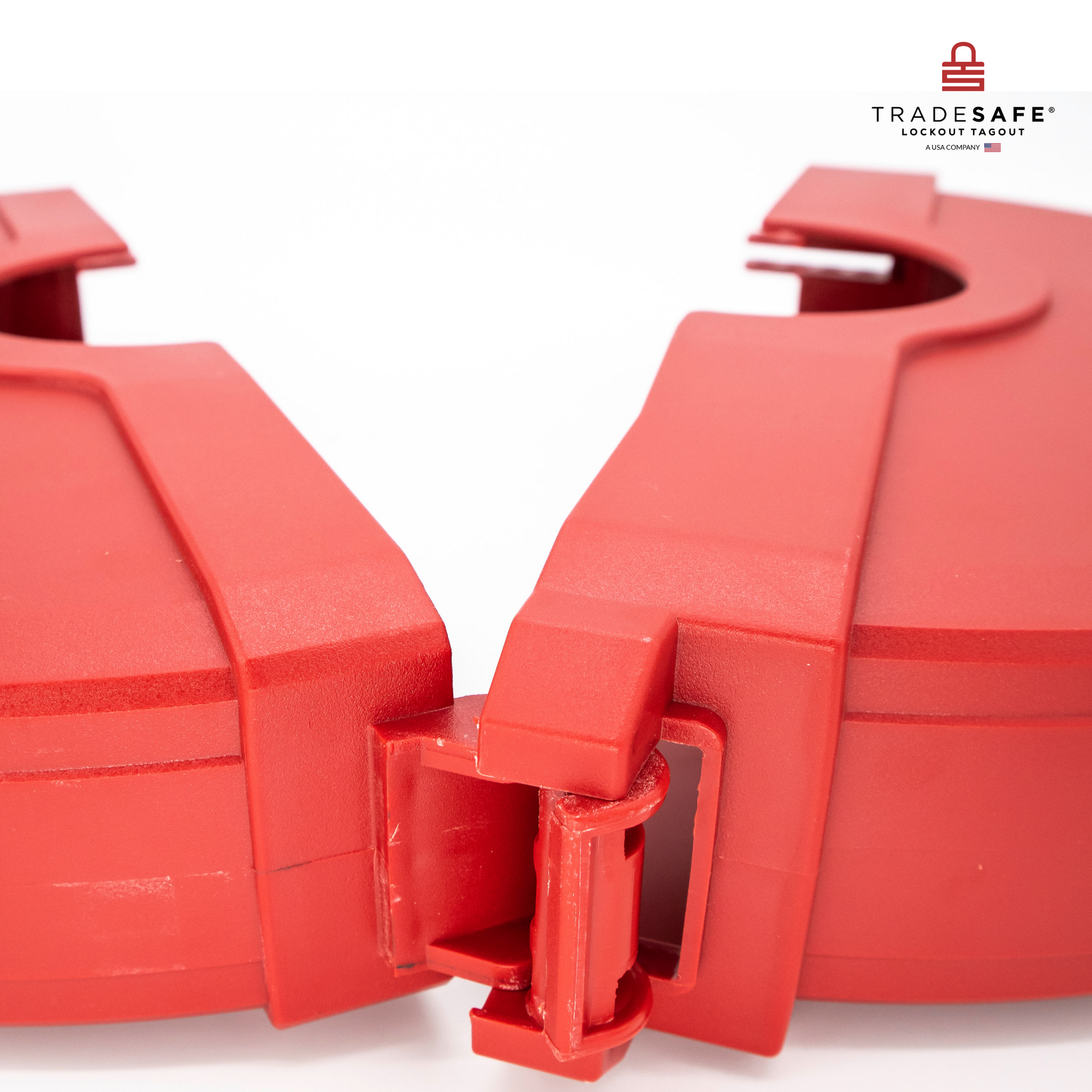

• Detachable hinged construction for easier stacking and storage
• Durable 1/8" body thickness

The rugged housing is suitable for utilities, manufacturing plants, processing facilities, maintenance departments, and outdoor installations where valve lockout equipment may be exposed to changing temperatures, rough handling, or repeated deployment. Its bright red finish and prominent warning graphics also make the isolated valve easier for nearby personnel to recognize.

Lockout Gate Valve Handles with Four Padlock Positions

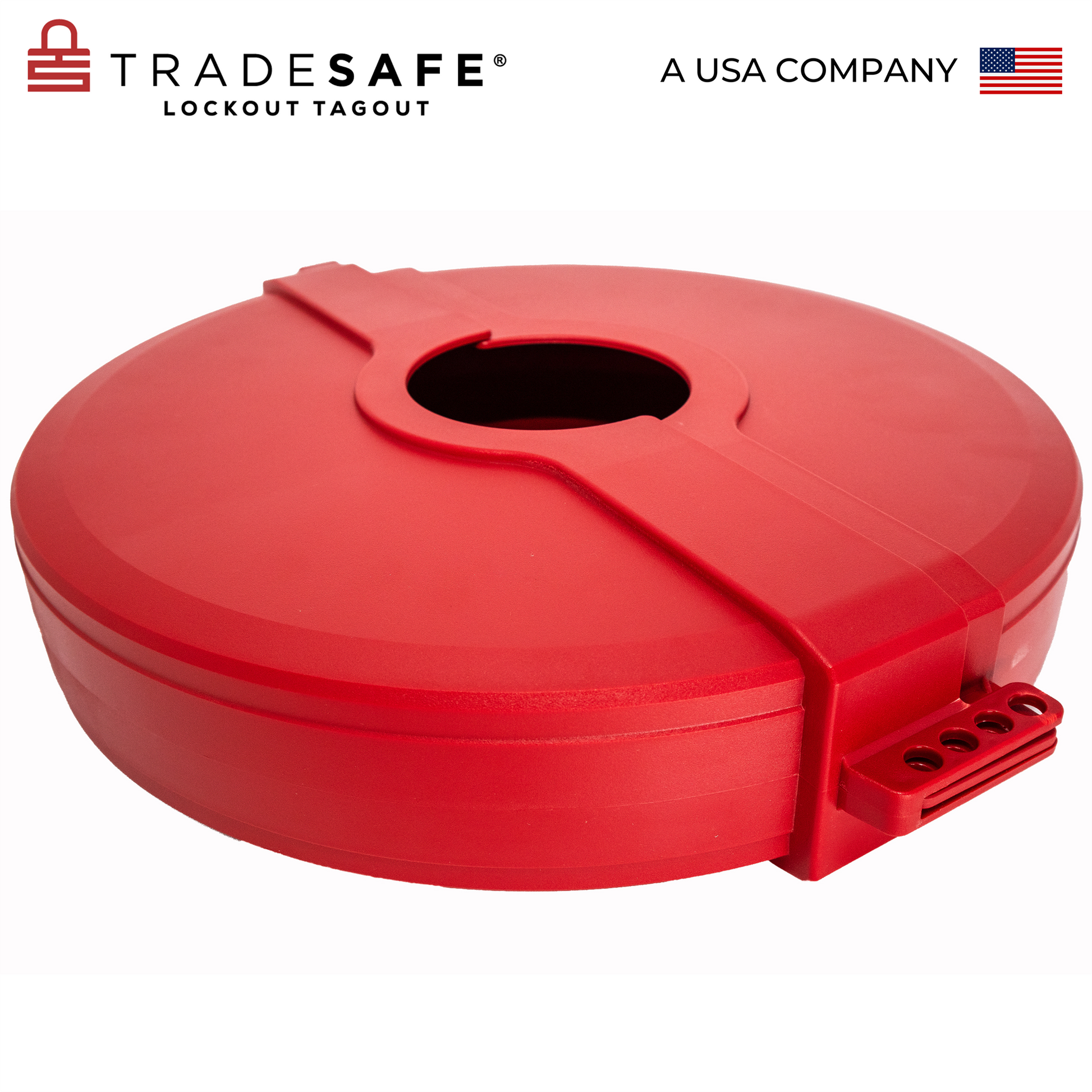

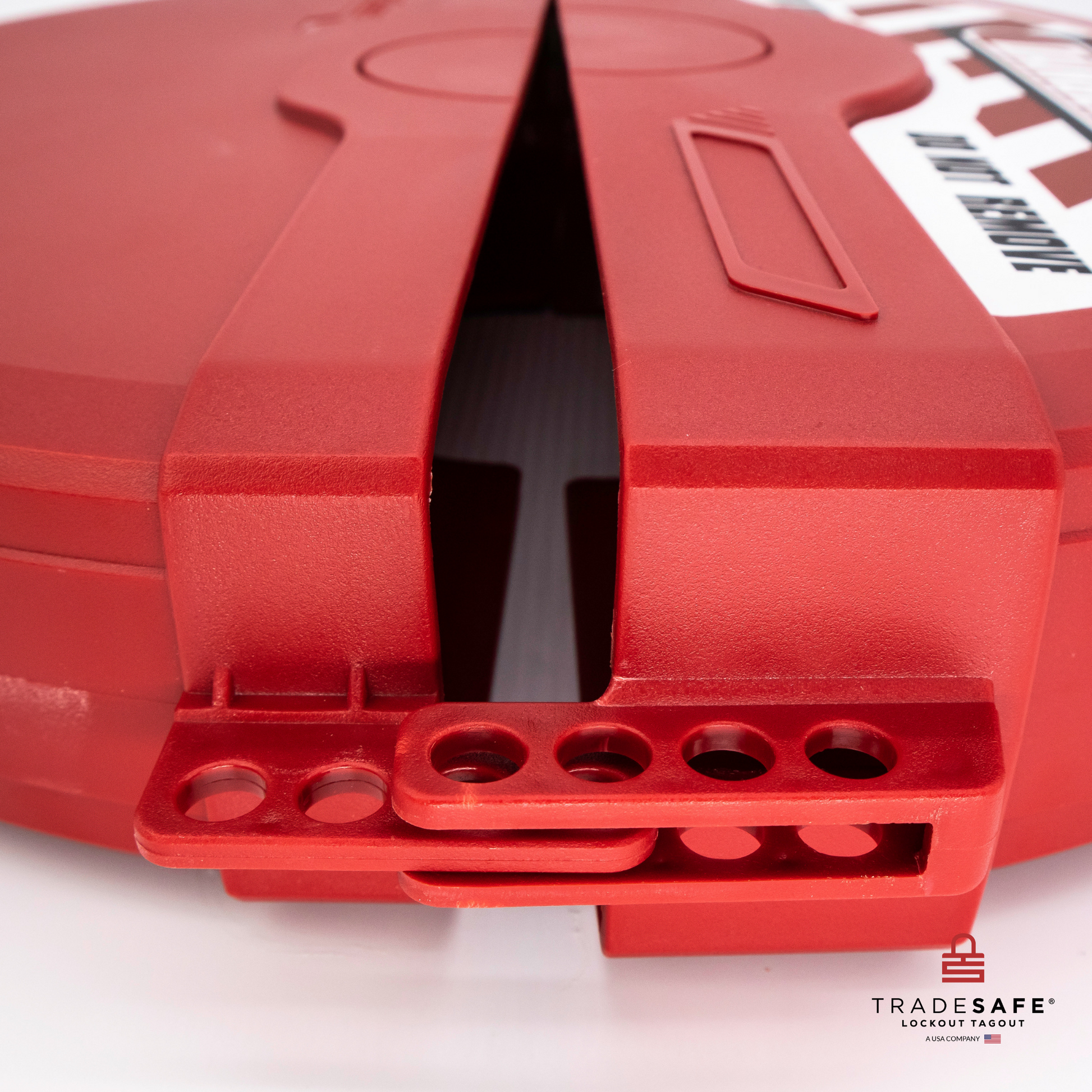

To lockout gate valve handles, open the device at the hinge, position the clamshell sections around the compatible handwheel, close the housing, and align the integrated lock holes. The overlapping cover sections maintain fuller coverage around the operating handle, helping reduce shifting, loosening, and partial exposure after installation.

Installation and security features include:

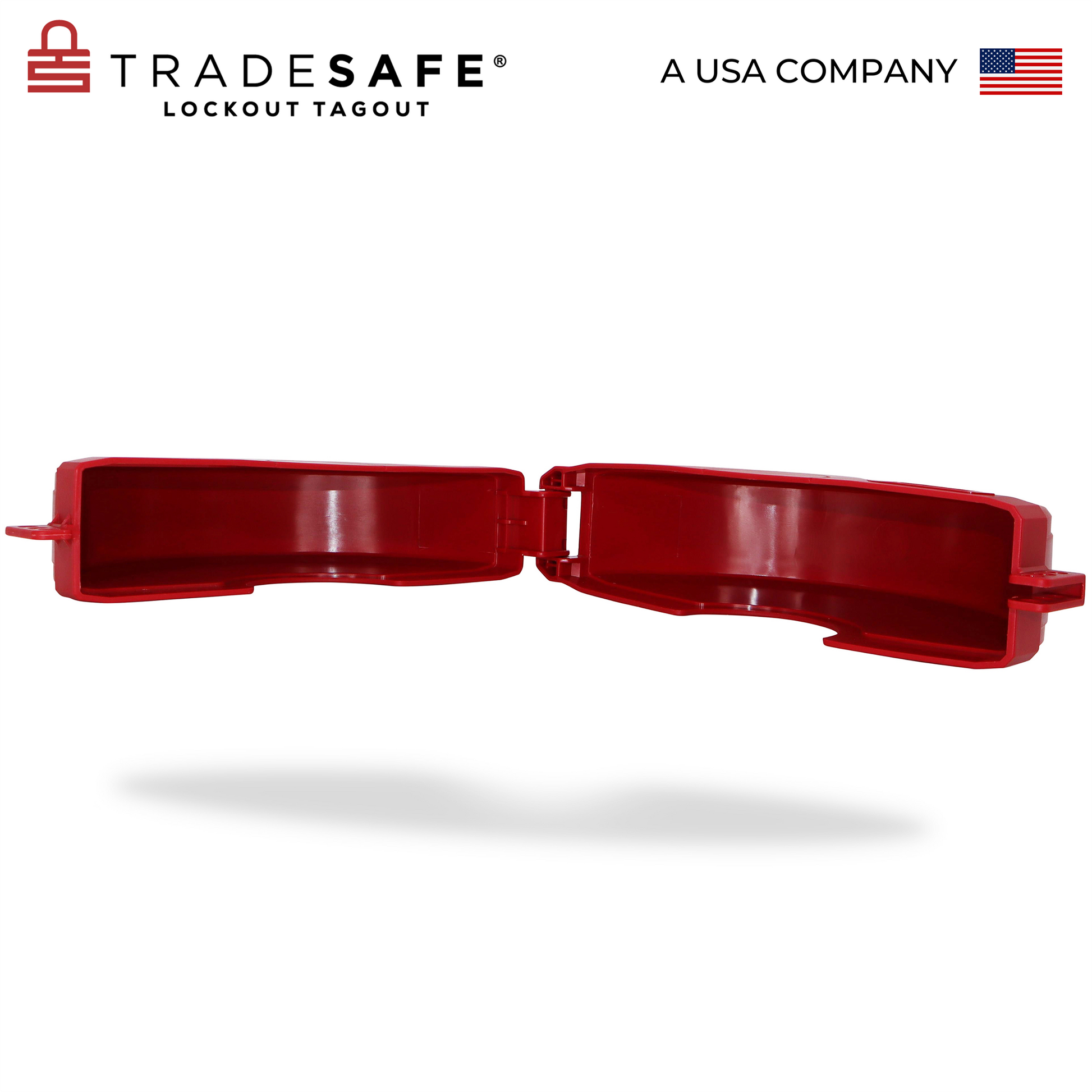

• Hinged clamshell design for straightforward placement
• Overlapping cover sections for stable handwheel coverage
• Removable center knockout for qualifying rising-stem configurations

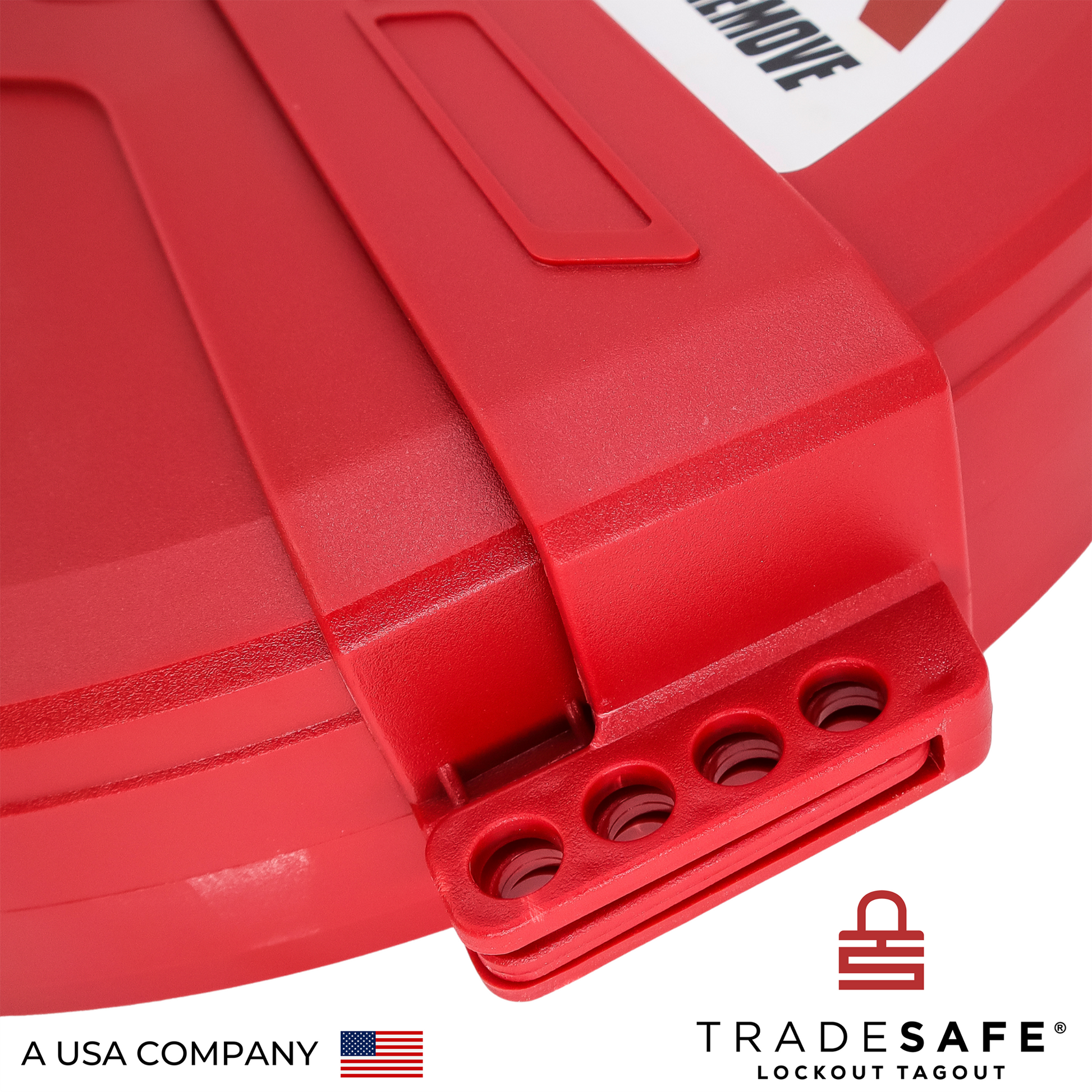

• Four integrated padlock positions
• Supports individual and multi-worker lockout applications
• Accepts padlock shackles up to 3/8" in diameter

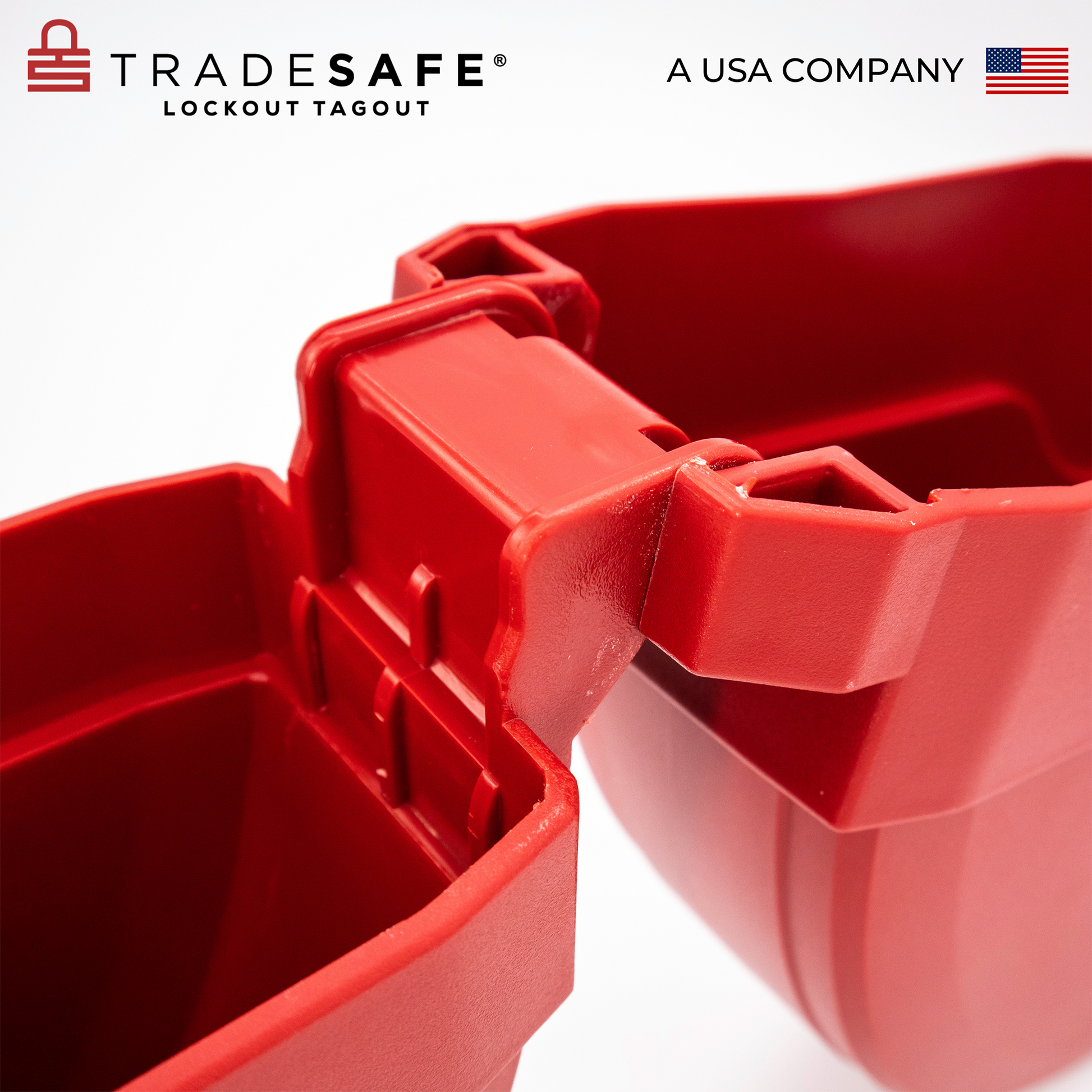

• Detachable hinge for compact storage between uses
• Enclosed design that restricts access to the valve handle
• Lockout padlocks sold separately

The four-lock configuration allows multiple authorized employees to attach separate personal padlocks when group lockout procedures require individual control of the same isolation point. Removing the center section also expands compatibility to qualifying OS&Y and rising-stem valves when the stated handwheel and stem dimensions are met.

Gate Valve Lockout Device for Large Industrial Applications

This gate valve lockout device is intended for compatible shutoff points used in industrial water systems, gas lines, propane equipment, utility infrastructure, processing operations, and selected fuel-system applications. Its large internal capacity and four padlock positions support both individual maintenance work and coordinated jobs involving several authorized employees.

Correct valve identification and sizing remain essential. Confirm that the handwheel measures between 10" and 13", the stem does not exceed 4-1/8", and the isolation point uses a compatible gate-valve design before installation; select another gate valve size or a dedicated ball or butterfly valve lockout when these requirements are not met.

Give your team durable coverage for large gate valve isolation points. Pair the device with the personal LOTO padlocks required by your facility’s hazardous energy control procedures. Choose the TRADESAFE gate valve lockout for secure handle coverage, clear warning communication, and dependable workplace use.

OSHA-Compliant Gate Valve Lockout Device

Compliance with the OSHA Standard for The Control of Hazardous Energy (Lockout/Tagout) (29 CFR 1910.147) is vital to the safety of every employee on site. That’s why we make sure that all of our products help workplaces remain OSHA-compliant.

TRADESAFE products are made with the requirements for lockout tagout devices in mind. These are the requirements pursuant to OSHA Standard 1910.147:

• Durable: Devices must be able to withstand exposure to the environment in which they will be used for as long as necessary.
• Standardized: Devices used in a facility must be standardized according to color, shape, or size.
• Substantial: Devices must be difficult to remove without the use of excessive force or techniques that are not typically used to remove the devices. They should also be able to prevent accidental removal.
• Identifiable: Devices must be able to identify the employee who applied them.
• Exclusive for Safety: Devices must not be used for any purpose other than controlling energy.
