Gate Valve Lockout – 18" to 24" Valve Handle Diameter, 5" Stem Diameter

TRADESAFE oversized valve lock is designed for maintenance teams, safety managers, utility crews, and authorized employees who need to secure exceptionally large gate valve handwheels during service, repair, inspection, and shutdown procedures. This model fits compatible valve handles from 18" to 24" in diameter and accommodates valve stems up to 5" in diameter, providing extensive coverage for large isolation points used in industrial water, gas, propane, processing, and utility systems.

The high-visibility red clamshell housing surrounds the operating handle and can be secured with up to four personal LOTO padlocks for individual or multi-worker applications. Industrial-strength ABS construction provides impact, chemical, and temperature resistance, while the overlapping cover, detachable hinge, and removable center knockout support stable installation, compact storage, and compatibility with qualifying OS&Y or rising-stem gate valves. Padlocks are not included.

Valve Lock for 18" to 24" Gate Valve Handles

This valve lock provides full enclosure for oversized gate valve handwheels that cannot be covered by standard large lockout models. Once closed around a compatible handle and secured with the required padlock or padlocks, the housing restricts access to the operating point and helps prevent unauthorized valve movement throughout maintenance work.

Part number: TS4GTVR

Product details include:

• 1 red oversized gate valve lockout
• Compatible valve handle diameter: 18" to 24"
• Maximum valve stem diameter: 5"

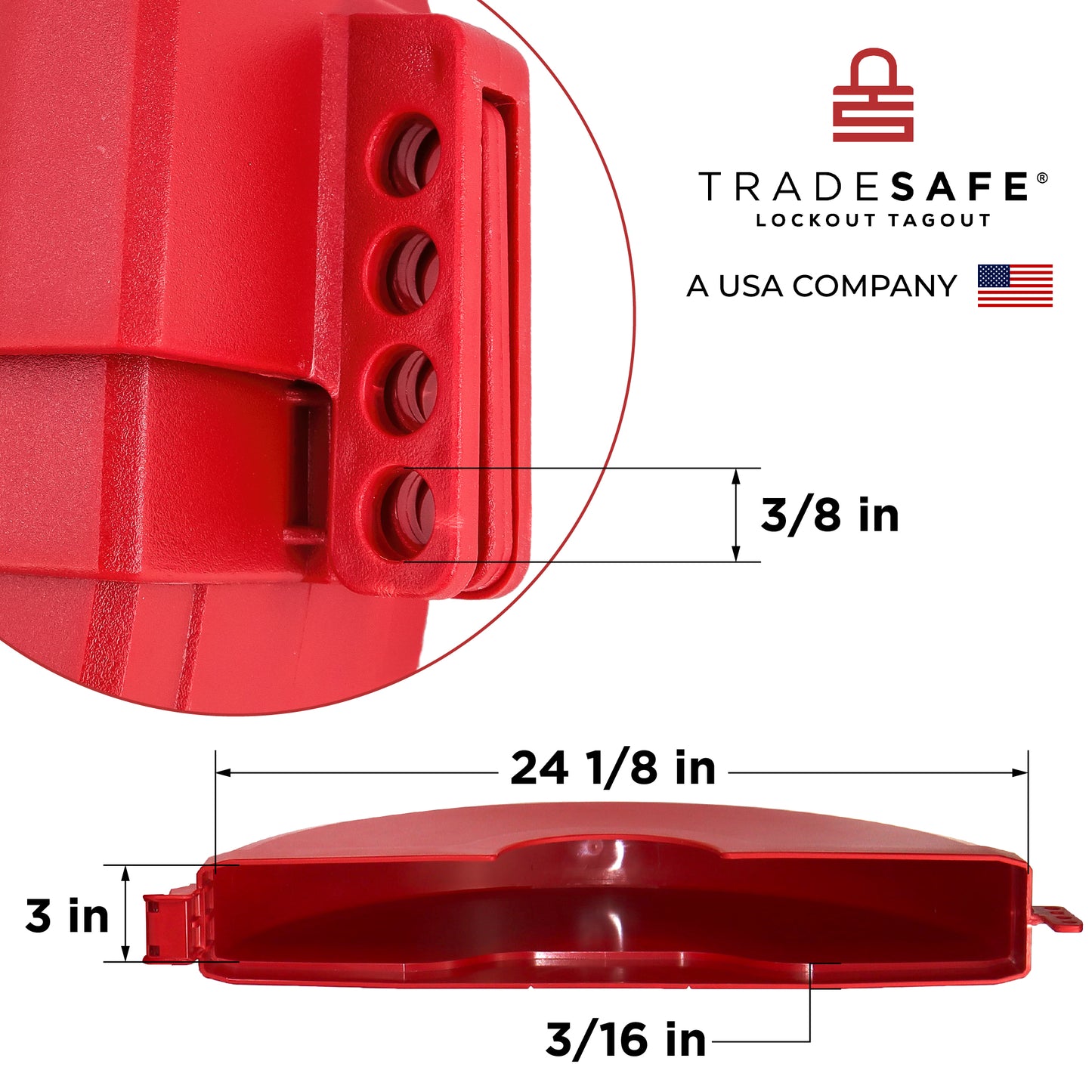

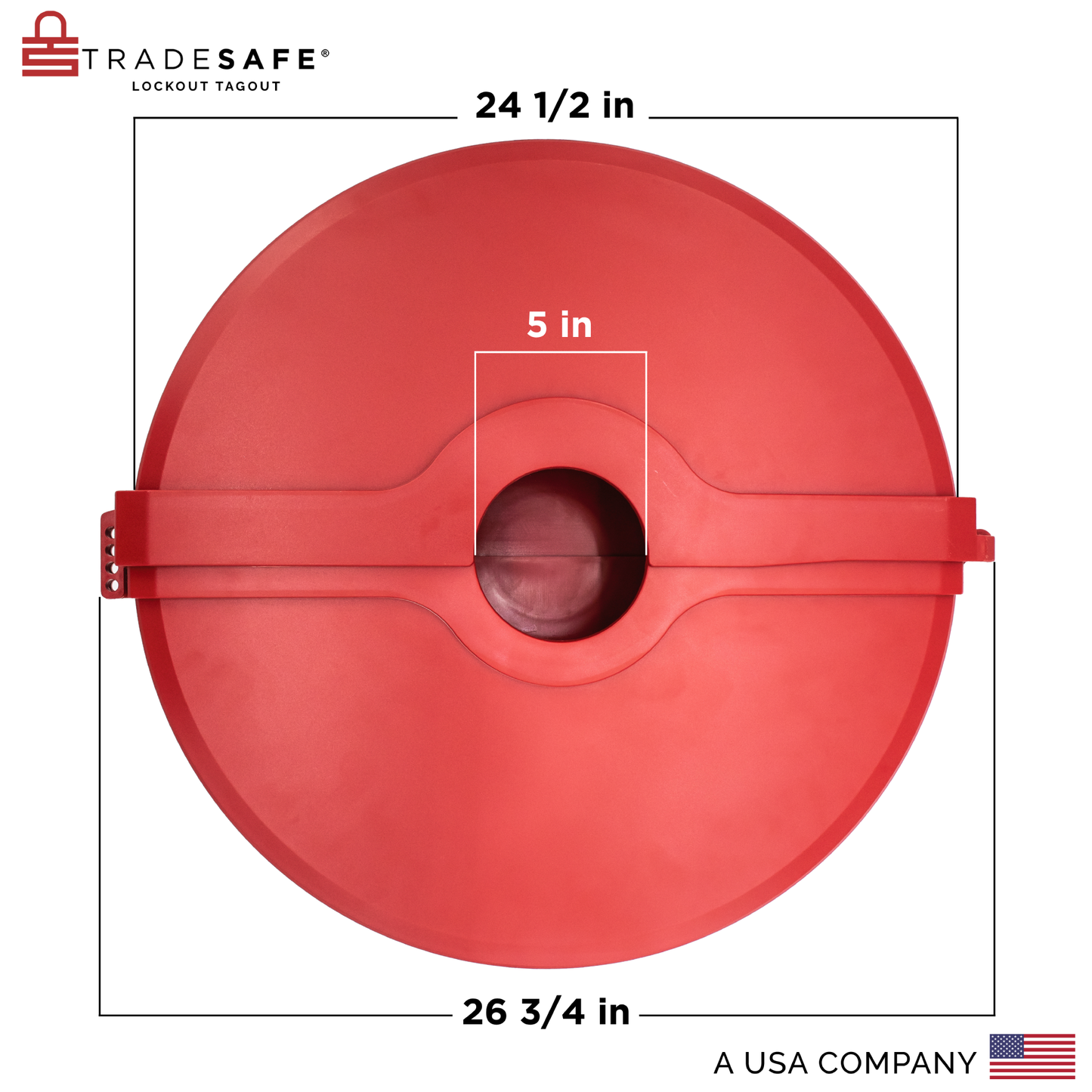

• Inner diameter: 24-1/8"
• Inner height: 3"
• Total body length: 26-3/4"
• ABS plastic thickness: 3/16"
• Four integrated padlock positions
• Maximum compatible padlock shackle diameter: 3/8"
• Removable center knockout for qualifying OS&Y and rising-stem valves
• Designed specifically for compatible gate valve handles
• Not compatible with ball valve or butterfly valve handles
• Lockout padlocks sold separately

Measure the handwheel and stem before ordering to confirm compatibility. This extra-large model is intended for facilities with substantial gate valves that exceed the dimensional limits of smaller devices and require broad, enclosed handle coverage.

Gate Valve Lock with Reinforced ABS Construction

This gate valve lock is precision-molded from industrial-strength ABS selected for demanding indoor and outdoor environments. Its nonconductive body resists impact and common chemical exposure while maintaining structural stability across a wide operating temperature range.

Material and visibility features include:

• Impact-resistant ABS construction
• Chemical-resistant housing
• Nonconductive material
• Operating temperature range: -51°F to 300°F
• Reinforced 3/16" body thickness
• High-visibility red finish
• Printed “DANGER – Locked Out – Do Not Remove” warning label
• Durable housing for repeated industrial use
• Detachable hinged construction for more compact storage

The thicker ABS housing provides added rigidity for a device of this size while remaining manageable for regular workplace deployment. It is well suited for utilities, manufacturing plants, processing facilities, maintenance operations, and outdoor sites where valve lockout equipment may encounter temperature changes, frequent handling, or demanding job conditions.

Gate Valve Lockout Device with Four Padlock Positions

The gate valve lockout device opens at the hinge, closes around the compatible handwheel, and is secured through the integrated lock holes. Its overlapping cover sections maintain fuller coverage around the operating handle, helping reduce shifting, loosening, and partial exposure after installation.

Installation and security features include:

• Hinged clamshell design for straightforward placement
• Overlapping cover sections for stable handwheel coverage
• Removable center knockout for qualifying rising-stem configurations
• Four integrated padlock positions
• Supports individual and multi-worker lockout applications
• Accepts padlock shackles up to 3/8" in diameter
• Enclosed design that restricts access to the operating handle
• Detachable hinge for easier stacking and storage
• Lockout padlocks sold separately

The four-lock configuration allows several authorized employees to attach separate personal padlocks when each worker must maintain individual control of the same isolation point. The removable center section also extends compatibility to qualifying OS&Y and rising-stem gate valves when the handwheel and stem remain within the specified dimensions.

Gate Valve LOTO for Oversized Industrial Applications

This gate valve LOTO device is intended for exceptionally large shutoff points used in industrial water systems, gas lines, propane equipment, utility infrastructure, processing operations, and other compatible installations. Its 24-1/8" internal diameter, reinforced body, and four padlock positions make it suitable for both individual maintenance assignments and coordinated work involving multiple authorized employees.

Proper sizing and valve identification remain essential. Confirm that the handwheel measures between 18" and 24", that the stem does not exceed 5", and that the isolation point uses a compatible gate-valve design before installation; select a smaller gate valve model or a dedicated ball or butterfly valve lockout when these requirements are not met.

Give your team purpose-built coverage for oversized gate valve isolation points. Pair the device with the personal LOTO padlocks required by your facility’s hazardous energy control procedures. Choose the TRADESAFE oversized valve lock for reinforced construction, clear warning communication, and dependable handle coverage.
